Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OR-10DS
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video screens

,

waterproof led display
Leave a Message
Product Description

Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen





Quick Detail:



1, LED Chip: Epistar;

2, IC: MBI5020;

3, Power Supply: YHY ultra thin model;

4, Control System: Linsn 802;

5, Video Processor: LVP603S;

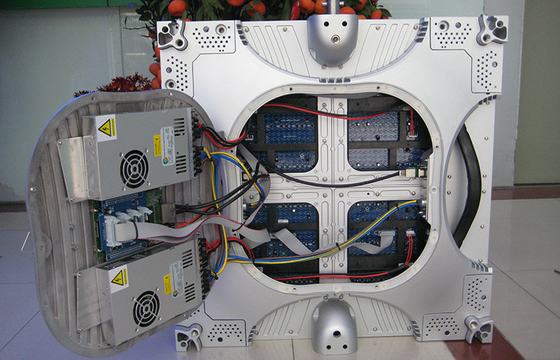

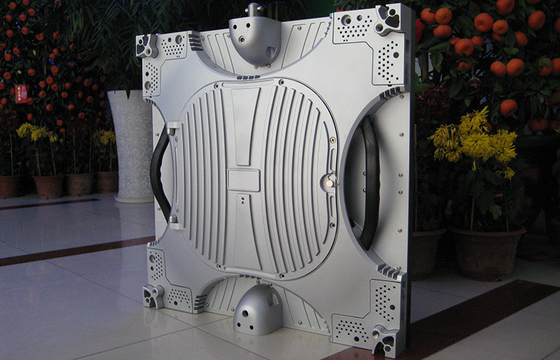

6, Cabinet: Die casting aluminum cabinet material with hanging up and on stand structure.





Description:



1, The P10 outdoor rental LED display is used in concerts;

2, This P10 die casting aluminum outdoor rental LED screen is used in road shows;

3, The ultra slim rental LED wall is used in musical events;

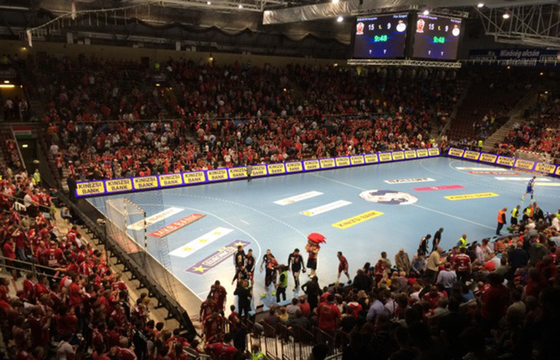

4, High refresh frequency guarantee P10 ultra thin outdoor rental LED display capable for scoreboard use in stadium;

5, Packed into flight case, convenient movment from one site to next;

6, Outdoor rental LED display is being use widely around the world for multi rental use, bring good revenue to intestors.







Applications:



Concerts

TV Studios

Private Parties

Fashion Shows

Product Launches

Press Conferences

Political Gatherings

Programe Live Broadcast







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 10
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 32 x 32
Module pixel 1024
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 640 x 640 x 90
Cabinet resolution (pixels) 64 x 64
Cabinet pixels (pixels) 4096
Cabinet material Aluminum
Cabinet weight (kg) 12.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥7000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥2800
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)







Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

5. Reasonable price: Profit back to customer for long term mutual development cooperation;



Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen 0



Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen 1Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen 2

Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen 3Ultra thin P10 Outdoor Rental LED Display as Scoreboard LED Screen 4
