High Bright P4 Led Display Module LED Sign Board 256*128mm For Adertising

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P4
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Encapsulation SMD2121 Module Resolution (pixels) 64*32
Module Size (mm) 256*128 Module Pixel 2048
High Light

high definition led display

,

p10 led module
Leave a Message
Product Description



P4 Indoor Led Module Parameters:



LED MODULE PARAMETER
Pixel pitch (mm) 3
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 64*32
Module pixel 2048
Module size (mm) 256*128
LED CABINET SPECIFICATION
Cabinet size (mm) 512*512*100mm
Cabinet resolution (pixels) 128*128
Cabinet pixels (pixels) 16384
Cabinet material Steel
Cabinet weight (kg) 12kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 62500
Brightness(cd/m2) ≥2000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥3m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 3000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1200
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)

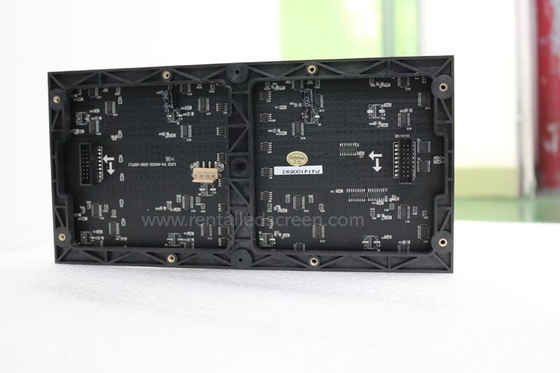

High Bright P4 SMD Indoor Led Module Aging In Factory

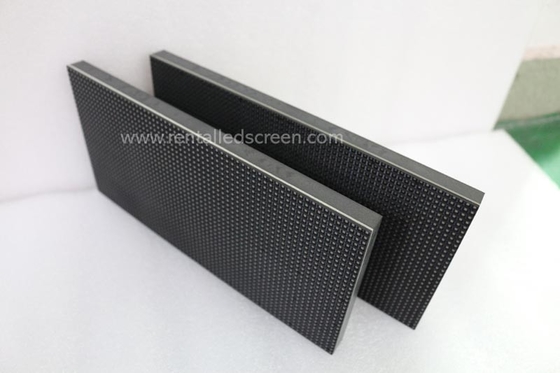

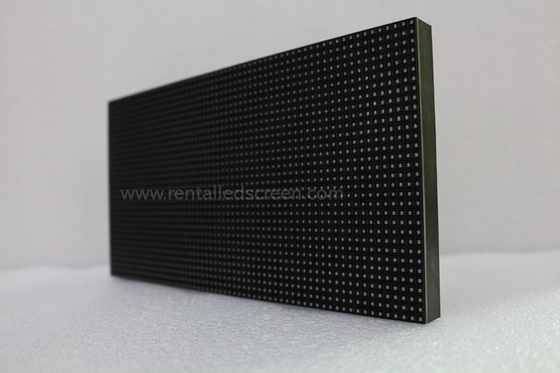

High Bright P4 SMD Indoor Led Display Module

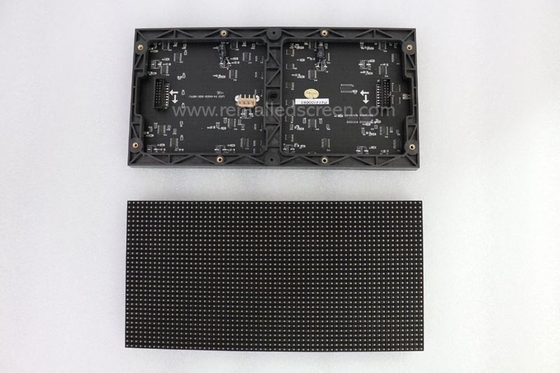

High Bright P4 SMD Indoor Led Screen Module



Our Services
1) Shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.


Company Information
P2.5 P3 P4 P5 P6 P7.62 P10 indoor outdoor hub75 SMD led module
SHENZHEN YUCHIP Lighting Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2004, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
