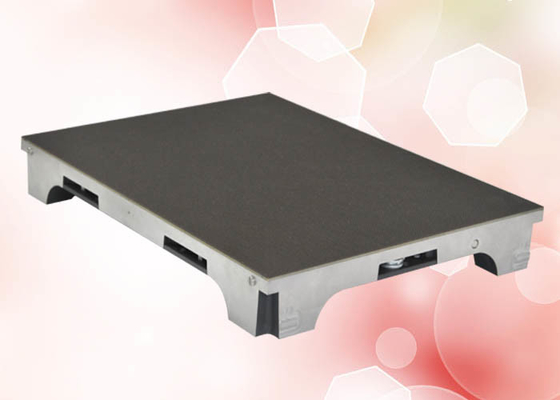

Advertising led wall screen display outdoor / led stage panels Rear access
Product Details
| Brightness | 800nits | Pixel Pitch | 1.6mm |
|---|---|---|---|
| Pixel Configuration | SMD1010 Black Led | Data Refresh Rate | ≥2880HZ |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
Advertising led wall screen display outdoor / led stage panels Rear access
Removing ghost images:
Serious ghost images usually exist on ordinary LED displays (hazy secondary images, afterglow between bright lines when testing LED displays). YUCHIP's small pixel pitch display products use driver ICs with pre-charge function to reach the anti-ghost effect (images without secondary images when dark bright dots up and below slashes are small).
Seamless connection:
The bright lines and dark lines of this screen can be removed by adjusting the direction of the cabinet. Then, cabinets can be connected seamlessly without the phenomenon of the separation of the connected image.
High refresh rate:
Industry advanced technologies, including dynamic scanning mode, are adopted to YUCHIP's small pixel pitch series, which ensure that the refresh rate is larger than 2880Hz. Flicker lines will not appear while playing videos, relaying TV broadcasts, and showing images.
Point-by-point brightness and chromaticity calibration:
Point-by-point calibration about this kind of display sign will make image more soft and lifelike. The brightness difference before and after calibration is less than 2%, the chromaticity difference less than 0.005.
Indoor HD LED Display P1.6 Parameters:
|
Model Number |
pixel pitch 1.6mm |
|
Description |

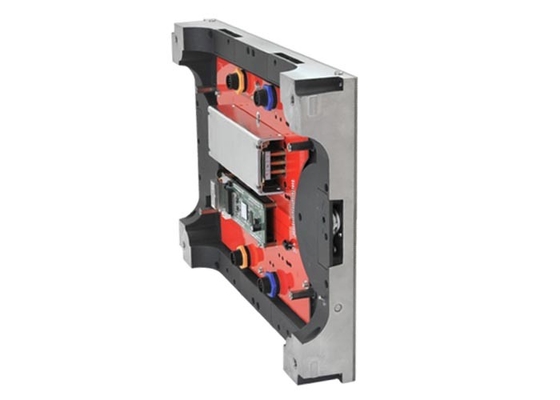

Die-casting Aluminum cabinets with hanging function |
|
Application |
Indoor use, AV rental |
|
Pixel configuration |
SMD1010 Black led |
|
Pixel pitch |
1.6mm |
|
Cabinet pixel resolution |
W 240 x H 180pixels |
|

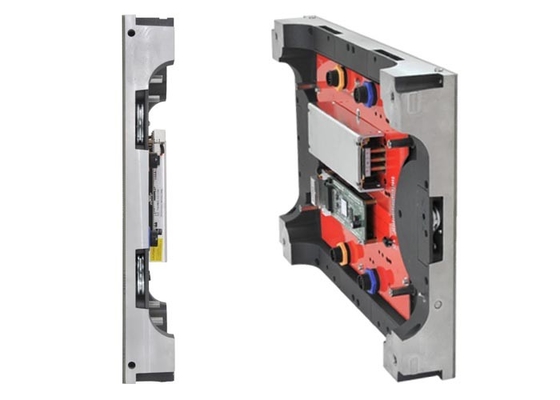

Cabinet dimension |
W: 400mm, H: 300mm, T: 63mm |
|
Module size |
W: 200mm, H: 100mm |
|
Module pixel resolution |
W 120 x H 60 pixels |
|
Pixel density |
360,000dots/sqm |
|
Minimum viewing distance |
2m |
|
Brightness |
800nits |
|
Grey scale |
14 bits |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥2880HZ |
|
Driver IC |
MBI5153 |
|
LED drive |
1/30 scanning, constant current |
|
Control system type |
Novastar |
|
Control software name |
Nova studio |
|
Viewing angle |
Vertical 140° Horizontal 140° |
|
Temperature range |
-20℃ to +60℃ |
|
Ambient Humidity |
10%-99% |
|

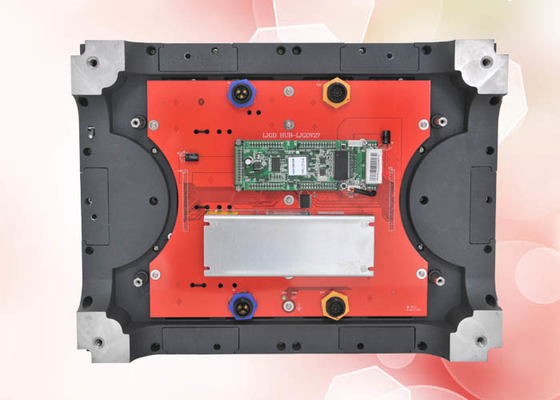

Service access |
Rear |
|
Cabinet weight |
4.8kg |
|
Power Consumption |
Max: 100 w/pcs; Average : 50w/pcs |
|
Protection Level |
IP43 |
|
Lifetime to 50% brightness |
75,000hr |
|
LED Failure Rate |
<0,00001(Led display line standard <0,0001) |
|
MTBF |
> 100.000 hours |
|
Input power cable |
AC110V to 220V |
|
Signal input |
DVI |
|
Certification |
CE, ROHS, FCC marked |
|
Warranty |
2 Years quality warranty |
High Definition Indoor LED Display P1.6 Indoor HD LED TV Led Vidoe Wall Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Services:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
