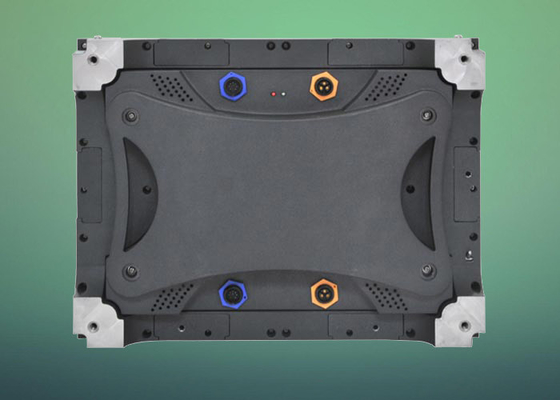

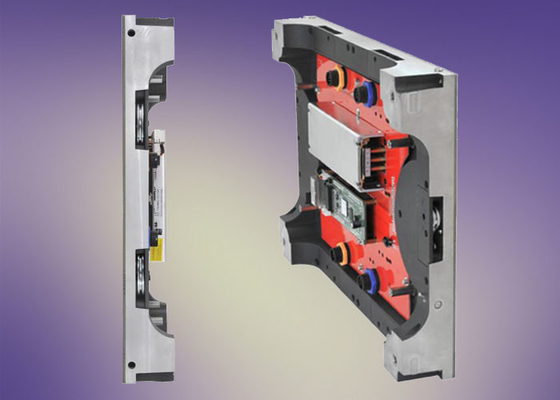

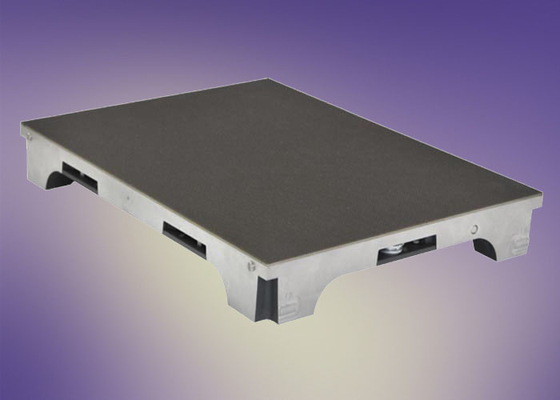

Full Color SMD concert digital led sign boards indoor Aluminum Cabinet
Product Details
| Minimum Viewing | Distance 2m | Pixel Pitch | 1.6mm |
|---|---|---|---|
| Color Number | 68.7194billion | LED Drive | 1/30 Scanning |
| High Light | outdoor led video display,led video wall rental |
||
Product Description
Full Color SMD concert digital led sign boards indoor Aluminum Cabinet
1.The LED displays with high quality of LED chip are stable and high luminous efficiency, low brightness attenuation.
2.Adopting the all-around measures of antistatic, which could protect the LED from antistatic, controling the rate of blind spots less than 0.0003%.
3.Advanced technology of production insures the quality and lifetime of LED displays.
4.The difference of any two LEDs is less than 10%, which insures the brightness and color uniformity of the displays.
5.The LED displays are smooth and clear with low cost but high pixel.
6.The LED display with good uniformity can solve the mosaic well.
7.The LED displays with high refresh technology shows clearly no matter the texts or images.
8.Wide visible angle horizontal and vertical angle of view can reach more than 120 degrees, and the graph won’t be deformed and no color cast in any range.
9.It’s easy to maintenance which could adopt single point maintenance, and of low cost.
Indoor HD LED Display P1.6 Parameters:
|
Model Number |
pixel pitch 1.6mm |
|
Description |
Die-casting Aluminum cabinets with hanging function |
|
Application |
Indoor use, AV rental |
|
Pixel configuration |
SMD1010 Black led |
|
Pixel pitch |
1.6mm |
|
Cabinet pixel resolution |
W 240 x H 180pixels |
|
Cabinet dimension |
W: 400mm, H: 300mm, T: 63mm |
|
Module size |
W: 200mm, H: 100mm |
|
Module pixel resolution |
W 120 x H 60 pixels |
|
Pixel density |
360,000dots/sqm |
|
Minimum viewing distance |
2m |
|
Brightness |
800nits |
|
Grey scale |
14 bits |
|
Color Number |
68.7194billion |
|
Display Mode |
Synchronous with video source |
|
Data refresh rate |
≥2880HZ |
|
Driver IC |
MBI5153 |
|
LED drive |
1/30 scanning, constant current |
|
Control system type |
Novastar |
|
Control software name |
Nova studio |
|
Viewing angle |
Vertical 140° Horizontal 140° |
|
Temperature range |
-20℃ to +60℃ |
|
Ambient Humidity |
10%-99% |
|
Service access |
Rear |
|
Cabinet weight |
4.8kg |
|
Power Consumption |
Max: 100 w/pcs; Average : 50w/pcs |
|
Protection Level |
IP43 |
|
Lifetime to 50% brightness |
75,000hr |
|
LED Failure Rate |
<0,00001(Led display line standard <0,0001) |
|
MTBF |
> 100.000 hours |
|
Input power cable |
AC110V to 220V |
|
Signal input |
DVI |
|
Certification |
CE, ROHS, FCC marked |
|
Warranty |
2 Years quality warranty |
indoor full color hd small display HD led module pixel pitch Case:
Our Products Advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
