3 in 1 HD Outdoor Rental LED Display IP65 , lightweight led Screen
Product Details
| High Light | full color outdoor advertising led display,waterproof led display |
||
|---|---|---|---|
Product Description

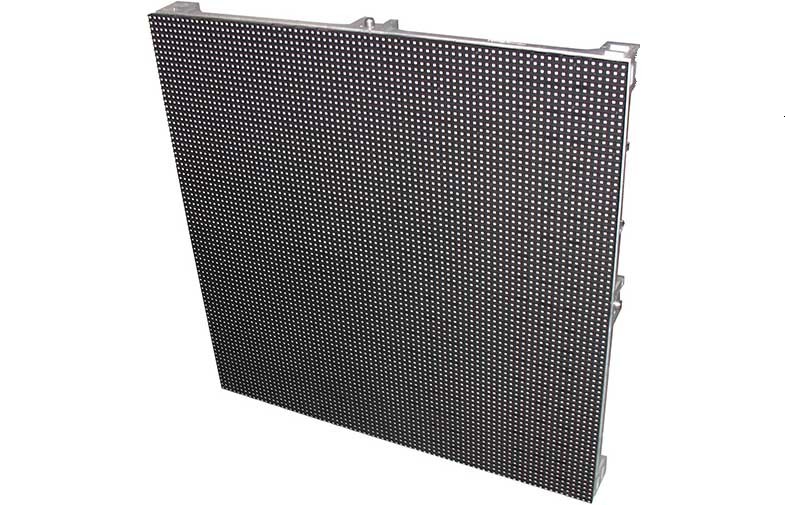

3 in 1 HD Outdoor Rental LED Display IP65 , lightweight led Screen
Quick Detail:
1, HD: P5.926 Outdoor Rental LED Display is of most higher resolution screen for outdoor use;
2, Portable Cabinet: 640mm x 640mm x 90mm;
3, Ultra Lighter Weight: 12.5kg/cabinet;
4, Stable: Die casting aluminum material;
5, Multi Use: Available for both day and night; outdoor and indoor use;
6, Both hanging up and on stand installation.
Description:

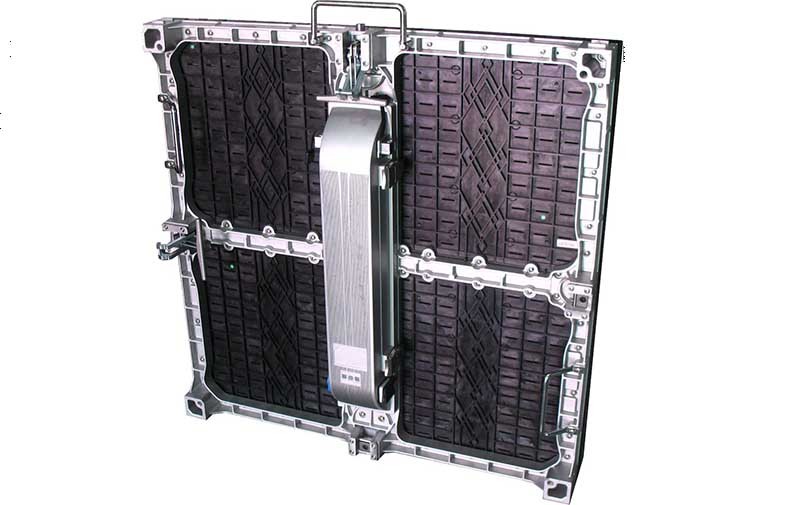

P5.926 Die Casting Aluminum Rental LED display is a kind of ultra slim rental LED screen that used to replace traditional type rental LED video wall which is of heavy weight and thicky cabinet.
Traditional rental LED display cabinet is nearly 170mm thick, and each 960mm x 960mm cabinet is about 55kg, it’s too heavy and cost more time and effort to finish rental LED screen assembly and dismantling.
With this die casting aluminum rental LED screen, it’s only 12.8kg-15kg per cabinet and this makes it much easier and quicker to assemble and dismantle rental LED video wall in events.
For rental LED display in events use, the most important two points is light weight and fast assembly. In an event like concerts, it used various audio and video equipment and most of them are hanging up on truss, with limited concerts stage, that would be great to have lighter weight products to insure safety and stability of the stage structure.
Applications:

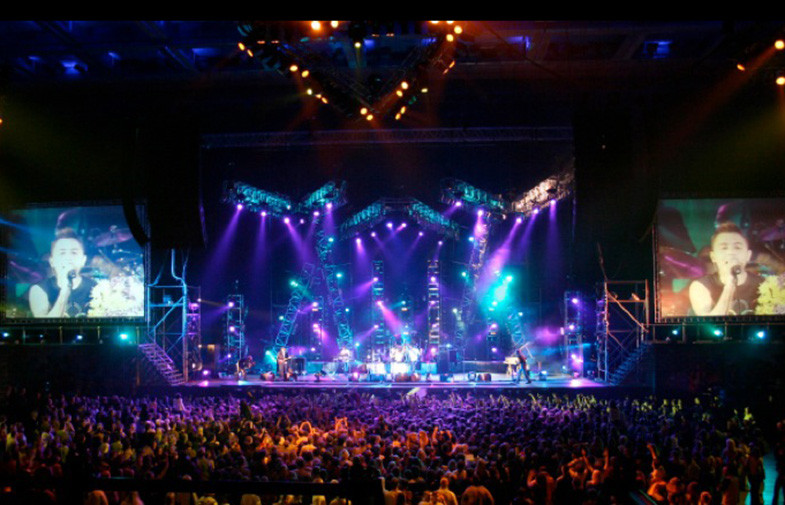

Concerts
TV Studios
Private Parties
Fashion Shows
Product Launches
Press Conferences
Political Gatherings
Programe Live Broadcast
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 5.926 |
| Pixel configuration | SMD2828 |
| Encapsulation | 3 in 1 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 54 x 54 |
| Module pixel | 2916 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 108 x 108 |
| Cabinet pixels (pixels) | 11664 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 28476 |
| Brightness(cd/m2) | ≥6000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/8 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;
2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;
4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
5. Reasonable price: Profit back to customer for long term mutual development cooperation;
