P3 P4 P5 P6 Indoor LED Video Wall Rental P3 LED Display For Event

Certification CE,ROHS,FCC,EMC
Model Number P3MM
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

led panel display

,

concert led screen

Leave a Message
Product Description

Full Colour P3 P4 P5 P6 Rental Indoor Led Display from China supplier
Our advantage:
Famous Brands Raw Material Selection

1) LED: well-known international brand, with wide viewing angle, high brightness,
little attenuation, good heat dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable
the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range
of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and
signal.

5) PCB Board: adopt 4-layer design.



P3 Full Color Rental Led Displaly SMD2121 Indoor Module
Item Unit Parameter
Pixel Pitch mm 3
Resolution of Module dots 64×64
Module Size mm 192×192
Module Weight kg 0.4
Pixel Configuration SMD21211R1G1B
Chip Brand of LEDs Epistar
Pixel Density dots/sqm 11,1111
Brightness (White Balance) nits(cd/sq.m) 1200-1500mcd
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode 1/16 Scan
Viewing Distance M 3--35
Best View Distance M 5--15
Viewing Angle-Horizontal deg. 120
Viewing Angle-Vertical deg. 120
Module Maximum Power W 25
Max. Power Consumption W/sq.m 1,000
Avg. Power Consumption W/sq.m 300
Working Voltage 5V 40A
Power Supply AC 110/220V
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥ 60
Gray Scale 4096 grades gray
Display Color 256*256*256
Display Function Text,news,advertising,flash,animation
Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Defective Dot Rate <0.0001
Life Span hours 100,000
MTBF hours >5,000
Storage Temperature °C 45
Working Temperature °C          -20 -- +60
Working Humidity 10-90%RH
Control System Synchronization or Asynchronization
Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008



About YUCHIP:

Shenzhen YUCHIP Lighting Co., LTD (YUCHIP), a professional LED display service provider, was Established in 2007, YUCHIP now ranks the leading manufacturer of LED display screen.Since its inception, YUCHIP has kept rapid growth; Products of YUCHIP (YUCHIP ) have been sold to more than 130 countries and regions, and the brand YUCHIP has got highly recognition in the world.


As always, YUCHIP insists on "Action speaks louder than words" as its brand business philosophy. Working hard and being a magnanimous man. We have been utilizing the advanced technologies and pursuing innovation to produce the best quality product, and regarding every order as our vanity project. To make our product perfect, we introduce the most advanced production equipments and detecting facilities, So as to maintain a strict quality standard of every production process. Thanks to those efforts, our products have passed many certificates, such as, CE, UCS, CCC, FCC approval etc.



With an outstanding business performance and good social reputation, YUCHIP has won respect from various circles of society, and acquired the "2014-2015 Excellent LED Display Application Engineering", "China Well-known Enterprise", "AAA Quality, Service and Prestige Unit", "China Top 100 Enterprise", "Guangdong China Top 10 Enterprise", "Shenzhen Well known Brand Enterprise", "National New High-tech Enterprise" etc.Here we promise that every client, every order and every feedback will be valued by YUCHIP.

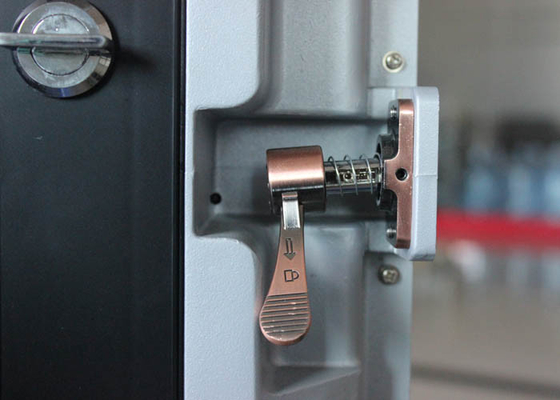

P3 P4 P5 P6 Indoor LED Video Wall Rental P3 LED Display For Event 0

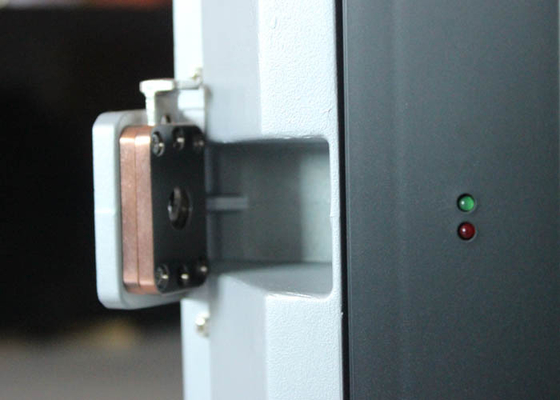

P3 P4 P5 P6 Indoor LED Video Wall Rental P3 LED Display For Event 1

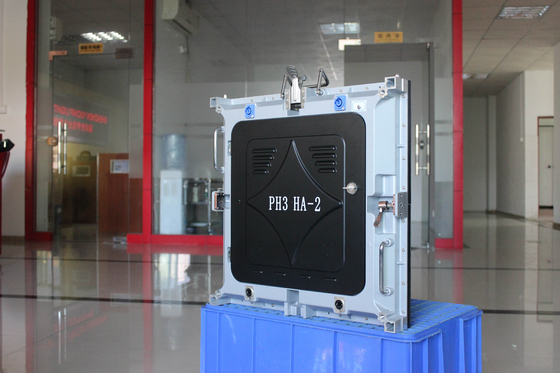

P3 P4 P5 P6 Indoor LED Video Wall Rental P3 LED Display For Event 2
