Exterior electronic signage boards / led signage panels With Simple usb version
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Driver Mode | 1/16 Scan | Cabinet Weight | About 80kg |
|---|---|---|---|
| Brightness | 1300cd/㎡ | Cabinet Material | Aluminum |
| Highlight | led video display board,commercial led display |
||
Product Description

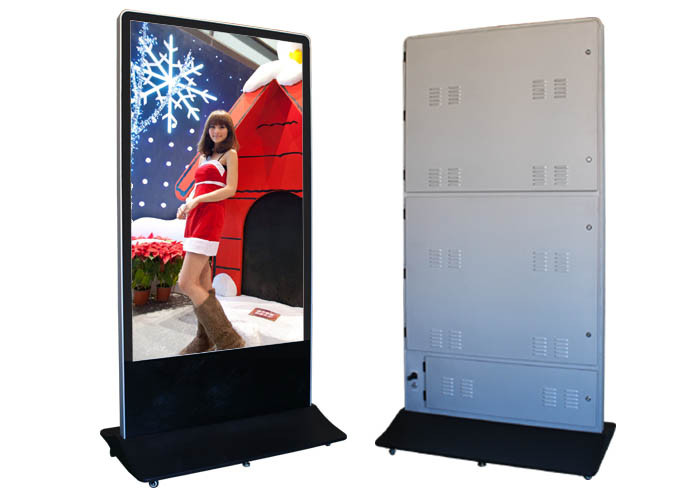

Exterior electronic signage boards / led signage panels With Simple usb version
1.Adopt newest A+LCD screen,high contrast ration,high brightness,last longer and work better.
2.Optional for VGA Port, HDMI port. Compatible all formats.
3.Safely locking system to avoid flash memory card and advertising playing contents being taken away, also can be protected by password.
4.Build-in clock and calendar function in the system of player.
5.Support 1080P Full HD Video and picture.
6.With scrolling marquee and angle icon display for any interval and segment quantity.
7.Automatic restart and shutdown periodically.
8.Adopt an external power adapter to supply power, more safe and reliable.
9.Automatic recognize PAL/NTSC video display.

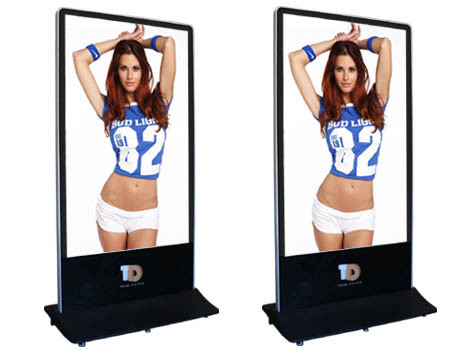

Standing LED Digital Signage Poster LED Advertising Display With Simple usb version Partmeters:
1 Physics Distance Between Pixels 3mm
2 Physics Pixel Density 111111 Pixel/㎡
3 Module Dimensions (W x H) 192mmX192mm
4 Physics Pixel / Module 64x64
5 Cabinet Dimensions (W x H x T) 670mmX2150mmX80mm
6 Physics Pixel / Cabinet 192x576
7 Cabinet Weight About 80kg
8 Cabinet Material Aluminum
9 Screen Area(㎡) (Width x Height) 0.576m x1.728m=1㎡
10 Physics Total Pixel / Screen 192X576=110592Pixels
11 Total Cabinet / Screen 1pcs
12 Total Weight / Screen 80kg
13 Brightness 1300cd/㎡
14 Viewing Distance >5m
15 Power Consumption (KW/㎡) MAX900W; Average300W
16 Driver Mode 1/16 scan
17 Refresh Rate 300HZ-3000HZ adjustable
18 Led Life 100000 hours
19 Supply Voltage AC220V/50HZ; AC110V/60HZ
20 Operating Temperature -20℃~+50℃
21 Operating Humidity 10%-90%
22 Storage Temperature -40℃~+60℃
23 Viewing Angle Horizontal:140°; Vertical: 140°
24 Grey Scale Red, green, blue each 16k
25 Display Colors 4096 Billion
26 Contrast Rate 2000:1
28 IP Rating Front IP43
29 Display Capability Video, Graphic, Text
30 Output With Audio
31 Control system Synchronous or
Asynchronous (3G and WIFI )
Applications:
1, Public places: subways, airports, bookstores, parks, exhibition halls, museums
2, Entertainment: cinemas, gyms, clubs, bars, beauty salons
3, Financial institutions: banks, securities, insurance companies
4, Business organizations: shopping malls, chain stores, hotels
5, Utilities: hospitals, schools, post offices
6, Real estate property: apartments, villas, offices, commercial buildings
