Indoor P3 HD Commercial LED Display Movie LED Poster Display

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IRP5
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Product Details
Cabinet Dimensions 670mmX2150mmX80mm Cabinet Weight About 80kg
Brightness 1300cd/㎡ Cabinet Material Aluminum
High Light

led video display board

,

commercial led display
Leave a Message
Product Description

YUCHIP Led Poster can be a better replacement of tradtional lcd screen or led lighting box considering no matter size, brightness, fresh rate, colors display, splicing gap. cost.

P2.5, P3, P4,P5 at optional, high brightness, high definition, bright multi color display.
one whole cabinet to keep good consistency of the whole led display, seamless splicing.

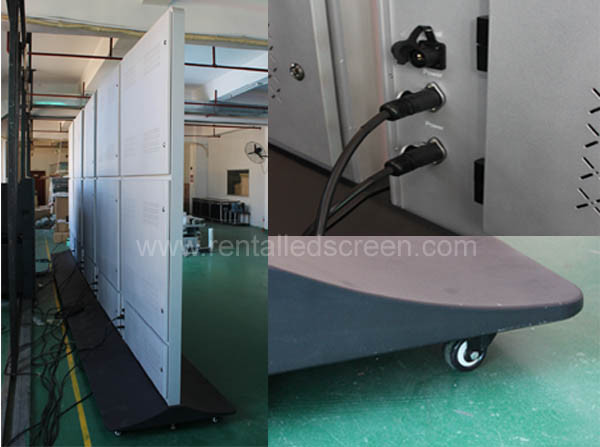

Led Poster no need to build an additional structure to settle the led screen,
After your purchasing, you just need to connect led display to base, connect power cable to socket, then it will work.

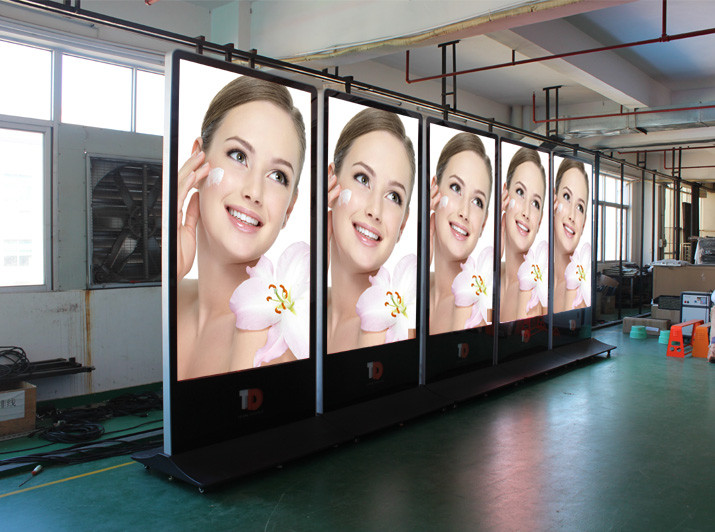

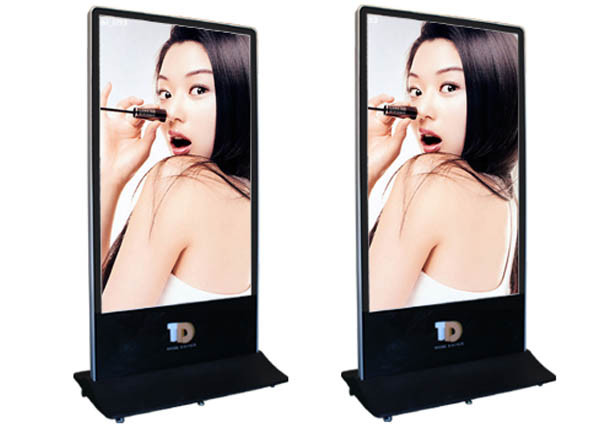

YUCHIP Indoor Led Poster Display





Movie Led Poster Screen

indoor P3 LED Dynamic panel poster LED Poster Display Screen Partmeters:



1    Physics Distance Between Pixels    3mm
2    Physics Pixel Density    111111 Pixel/㎡
3    Module Dimensions (W x H)    192mmX192mm
4    Physics Pixel / Module    64x64
5    Cabinet Dimensions (W x H x T)    670mmX2150mmX80mm
6    Physics Pixel / Cabinet    192x576
7    Cabinet Weight    About 80kg
8    Cabinet Material    Aluminum
9    Screen Area(㎡) (Width x Height)    0.576m x1.728m=1㎡
10    Physics Total Pixel / Screen    192X576=110592Pixels
11    Total Cabinet / Screen    1pcs

12    Total Weight / Screen    80kg
13    Brightness    1300cd/㎡
14    Viewing Distance    >5m
15    Power Consumption (KW/㎡)    MAX900W; Average300W
16    Driver Mode    1/16 scan

17    Refresh Rate    300HZ-3000HZ adjustable
18    Led Life    100000 hours
19    Supply Voltage    AC220V/50HZ; AC110V/60HZ

20    Operating Temperature    -20℃~+50℃
21    Operating Humidity    10%-90%
22    Storage Temperature    -40℃~+60℃
23    Viewing Angle    Horizontal:140°; Vertical: 140°
24    Grey Scale    Red, green, blue each 16k
25    Display Colors    4096 Billion
26    Contrast Rate    2000:1
28    IP Rating    Front IP43
29    Display Capability    Video, Graphic, Text
30     Output    With Audio
31    Control system     Synchronous or
Asynchronous (3G and WIFI )



Applications:

Widely used in advertising, sports stadiums, commercial applications, banking, securities, postal services, terminals, shopping malls, railway stations, postal services, telecommunications, offices, schools, restaurants, hotels, entertainment, businesses and other various indoor and outdoor venues.
