P10 Single Red Color LED Scrolling Message Board Sign for Text Display and Traffic

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OM-10D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led scrolling sign

,

led scrolling display
Leave a Message
Product Description

P10 Single Red Color LED Scrolling Message Board for Text Display





Quick Detail:



1, LED Source: Single Red;

2, Module Size: 320mm x 160mm;

3,  Easy and convenient edit and update message any time;

4.  Showing message asynchronously;





Description:



1. Single red/amber/green color is easy for people to see message on led display;
2. Outdoor led message display high brightness insure clear seeing even under the brightful sunlight;
3. Easy and convenient edit and update message any time;
4. Showing message asynchronously;

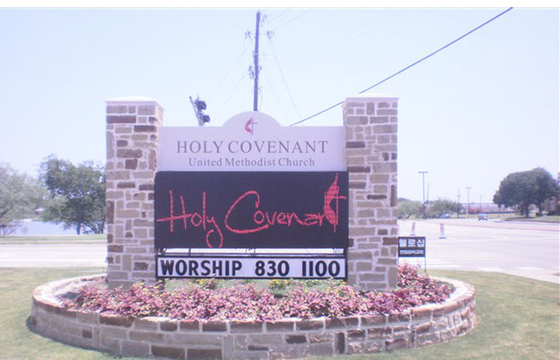

Applications:



Supermarket Message LED Display,

School Information LED Display,

Hospital LED Message Display,

Organization LED Text Display

Shopping Mall LED Message Sign

church LED display

information LED display

bus station LED screen,

Subway station information LED screen





Specifications :

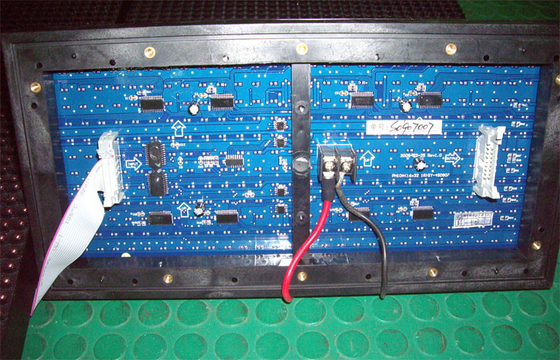

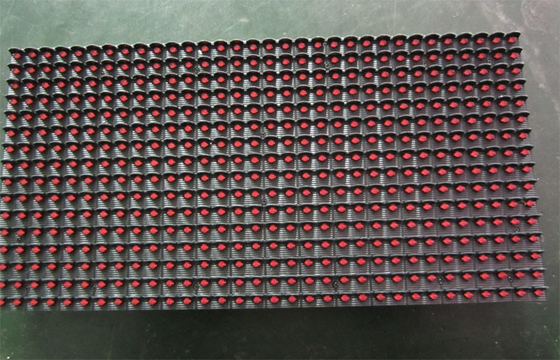

LED Module Parameter
Pixel pitch (mm) 10
Pixel configuration 1R
Encapsulation DIP346
Module resolution (pixels) 32 x 16
Module pixel 512
Module size (mm) 320 x 160
LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Steel
Cabinet weight (kg) 55
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥3500 (adjustable)
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/4Scan
LED driving method Constant driving current
Gray Grade 256
Display Color 1024
Refresh Frequency (Hz) ≥200
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)
Maintenance Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)






Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

5. Reasonable price: Profit back to customer for long term mutual development cooperation;



P10 Single Red Color LED Scrolling Message Board Sign for Text Display and Traffic 0P10 Single Red Color LED Scrolling Message Board Sign for Text Display and Traffic 1P10 Single Red Color LED Scrolling Message Board Sign for Text Display and Traffic 2P10 Single Red Color LED Scrolling Message Board Sign for Text Display and Traffic 3
