High Brightness DIP346 P6.67 Outdoor Rental LED Display for Events
Product Details
| High Light | led video screens,waterproof led display |
||
|---|---|---|---|
Product Description
High Brightness DIP346 P6.67 Outdoor Rental LED Display for Events
Quick Detail:
1, LED Source: DIP346;
2, Epistar Chip;
3, Cabinet: 640mm x 640mm x 90mm;
4, Die casting aluminum cabinet;
5, 12.5kg/cabinet;
6, Flight case package, 4 cabinets per case;
Description:

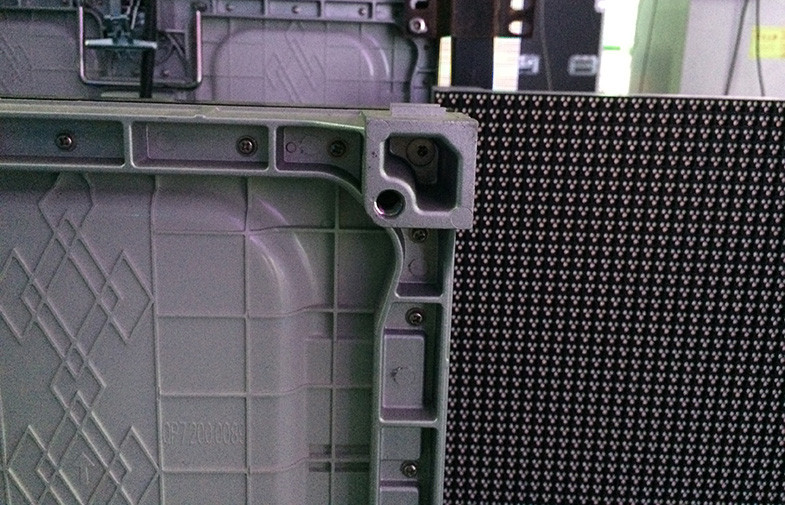

1, Die cast aluminum cabinet;
2, Ultra slim thickness;
3, Hanging up rental LED screen structure.
4, P6.67 ultra slim LED screen utilizing SMD3535 LED with larger view angle at 140 degree horizontaly and verticaly;
5, LED display brightness reaches about 6500cd/㎡,making it vivid image and video presentation even under direct sunshine light.
6, Auotomatic brightness adjustable makes it suitable for both outdoor and indoor use.

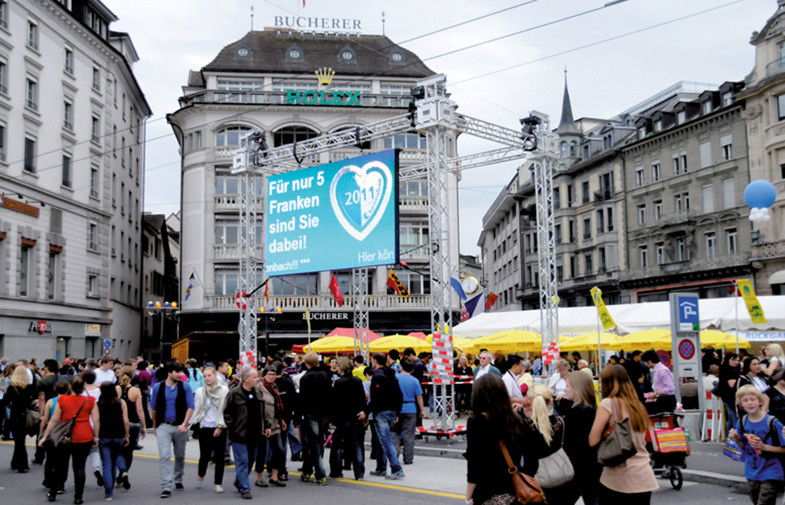

Applications:
Concerts
TV Studios
Private Parties
Fashion Shows
Product Launches
Press Conferences
Political Gatherings
Programe Live Broadcast
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6.67 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 22477 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥6m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/6 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P6.67 ultra slim rental LED display is specially designed to be used as rental LED display.
2, Its main ad, antage is die cast aluminum cabinet,ultra slim thickness,hanging up rental LED screen structure;
3, P6.67 ultra slim LED screen utilizing SMD3535 LED and brightness reaches about 6500cd/㎡,making it vivid image and video presentation even under direct sunshine light.
4, Brightness adjustable makes it suitable for both outdoor and indoor use.
