140° Viewing Angle Rental Outdoor Full Color Led Display 90mm cabinet thickness
Product Details
| High Light | full color outdoor advertising led display,waterproof led display |
||
|---|---|---|---|
Product Description
140° Viewing Angle Rental Outdoor Full Color Led Display 90mm cabinet thickness
Quick Detail:
1, Module Size: 320mm x 320mm;
2, Cabinet Size: 640mm x 640mm x 90mm;
3, Cabinet Weight: 12.5kg/cabinet;
4, SMD3535;
5, Viewing Angle: 140 degree horizontaly and vertically;
6, Hanging up with hanging bar and bottom pad;
Description:
1, Ultra Lighter Weight: 12.5kg/cabinet;
2, Convenient: 4 sets fast lockers on each cabinet;
3, Stable: Die casting aluminum material;
4, Ultra Thin: 90mm cabinet thickness;
5, Multi Use: Available for both day and night; outdoor and indoor use;
6, Both hanging up and on stand installation.

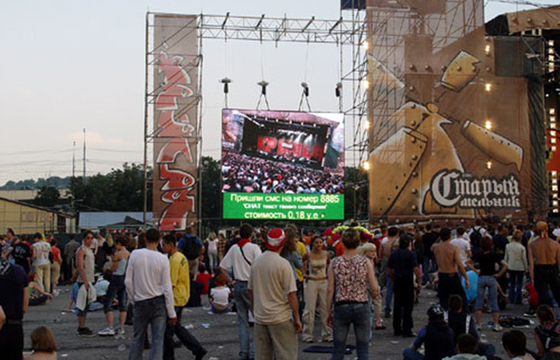

Applications:
Concerts
TV Studios
Private Parties
Fashion Shows
Product Launches
Press Conferences
Political Gatherings
Programe Live Broadcast
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 8 |
| Pixel configuration | SMD3535 |
| Encapsulation | 3 in 1 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40 x 40 |
| Module pixel | 1600 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 80 x 80 |
| Cabinet pixels (pixels) | 6400 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 15625 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥7m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, 10 years product and projects implement experience;
2, 10,000㎡ production areas;
3, Skilled 300 workers and 35 professional R&D engineers;
4, 24/7 real time after-sales service;
5, Agents in Italy,Poland,Thailand and Malaysia;
6, Carefully listen to customer need and provide customized products and service.
