Advertising Static Outdoor Rental LED Display 1R1G1B P13.33

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OR-13.3D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video screens

,

waterproof led display
Leave a Message
Product Description

Advertising  Static Outdoor Rental LED Display 1R1G1B  P13.33





Quick Detail:



1, LED Source: DIP346, Epistar;

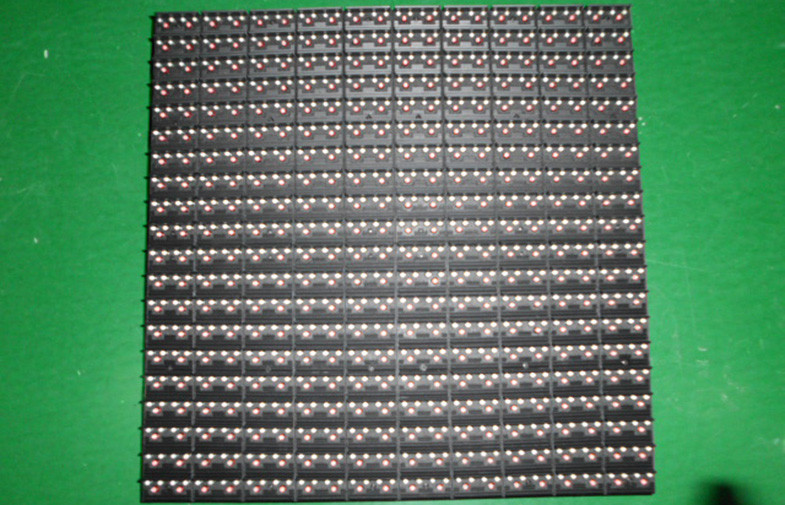

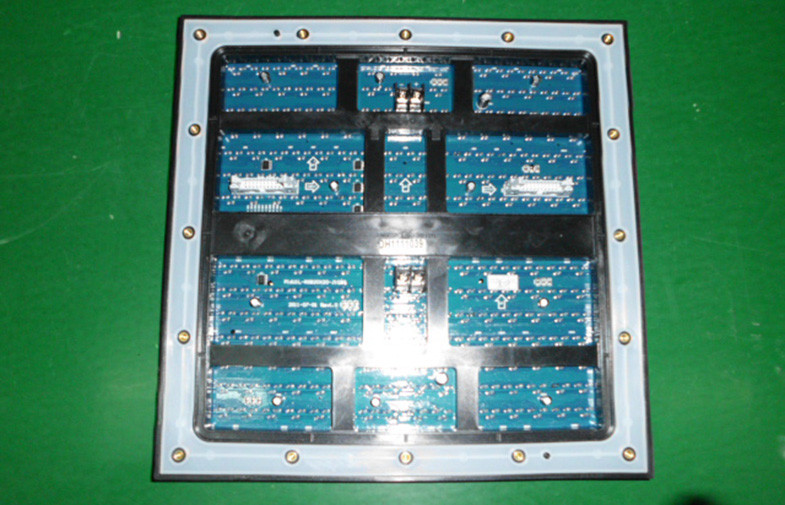

2, Module Size: 320mm x 320mm;

3, Cabinet Material: Die Casting Aluminum;

4, Cabinet Size: 640mm x 640mm x 100mm;

5, Cabinet Weight: 14.5kg/pc;

6, IC: MBI5020/MBI5024







Description:



1,Stable: Die Casting Aluminum Material Cabinet

2,Light Weight: Ultra Light Weight at 12.5kg-17.0kg/cabinet

3,Slim: Ultra Slim at 90cm thickness

4,Fast: Fast Lockers for quick assembly and dismantling

5,Movable: Flight Case Package for frequent movement from one site to next

6,Convenient: Hanging Up on truss and On Stand installation method







Applications:



Concerts

TV Studios

Private Parties

Fashion Shows

Product Launches

Press Conferences

Political Gatherings

Programe Live Broadcast







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 13.3
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 24 x 24
Module pixel 576
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 640 x 640 x 100
Cabinet resolution (pixels) 48 x 48
Cabinet pixels (pixels) 2304
Cabinet material Aluminum
Cabinet weight (kg) 14kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 5627
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥12m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method Static
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)







Competitive advantages:



1, Die casting aluminum LED cabinet;
2, Ultra slim LED cabinet design at thickness 90mm;
3, Ulra light weight design at 19kg per LED cabinet;
4, Multi signal input mode like HDMI,SDI,SD etc.
5, Hanging up and standing on rental LED screen structure.
6, Fast lockers equipped on top and bottom,right and left sides of each LED cabinet;
7, LED display brightness reaches about 6500cd/㎡,making it vivid image and video presentation even under direct sunshine light.
8, Flight case package,convenient to move from one site to next,four LED cabinets packed into one flight case;


Advertising Static Outdoor Rental LED Display 1R1G1B P13.33 0Advertising Static Outdoor Rental LED Display 1R1G1B P13.33 1
