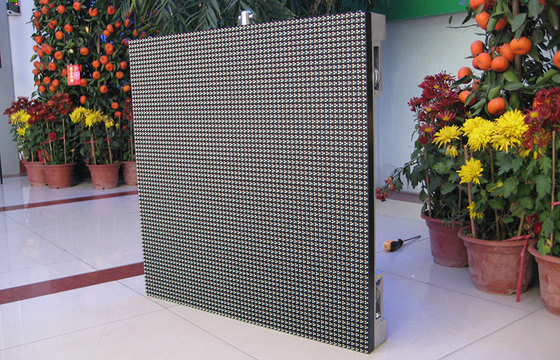

P6 Rental Led Panel Display , LED Screens for Outdoor and Indoor Events

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OR-6.67S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

full color outdoor advertising led display

,

led video screens
Leave a Message
Product Description

P6 Rental Led Panel Display , LED Screens for Outdoor and Indoor Events​





Quick Detail:



1, High Resolution: P6 outdoor rental LED wall is of most high resolution among outdoor LED displays;

2, Large Viewing Angle: Outdoor rental LED display wall P6 utilizing SMD3535 to reach 140 degree horizontally and vertically;

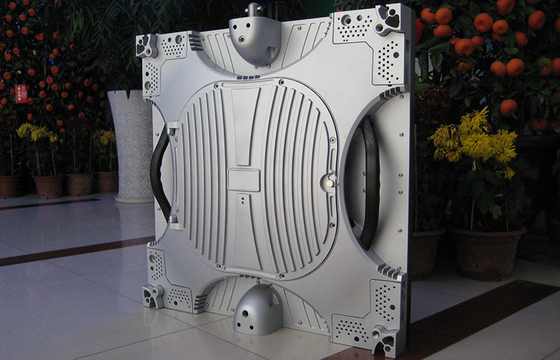

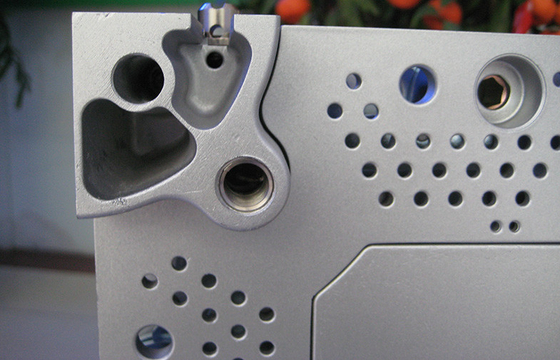

4, Stable: Die casting aluminum material;

5, Ultra Thin: 90mm cabinet thickness;

6, Ultra Lighter Weight: 12.5kg/cabinet;







Description:



1, P6 outdoor rental LED display is suitable for both outdoor and indoor LED screens ev

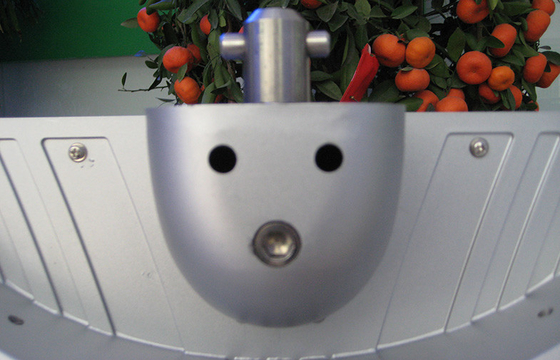

2, Convenient: 4 sets fast lockers on each cabinet;

3, Multi Use: Available for both day and night; outdoor and indoor use;

4, Both hanging up and on stand installation.







Applications:



Concerts

TV Studios

Private Parties

Fashion Shows

Product Launches

Press Conferences

Political Gatherings

Programe Live Broadcast







Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 6.67
Pixel configuration SMD3535
Encapsulation 3 in 1
Colors matches 6:3:1
Module resolution (pixels) 48 x 48
Module pixel 2304
Module size (mm) 320 x 320
LED CABINET SPECIFICATION
Cabinet size (mm) 640 x 640 x 90
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Aluminum
Cabinet weight (kg) 12.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 22477
Brightness(cd/m2) ≥7000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥6m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km
Display work method 1/6 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥2800
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one)







Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

5. Reasonable price: Profit back to customer for long term mutual development cooperation;
