Rental Outdoor Full Color LED Video Wall / Led Advertising Screens
Product Details
| High Light | full color outdoor advertising led display,led video screens |
||
|---|---|---|---|
Product Description
Rental Outdoor Full Color LED Video Wall / Led Advertising Screens
Quick Detail:
1, LED Chip: SMD3535;
2, LED Module: 320mm x 320mm;

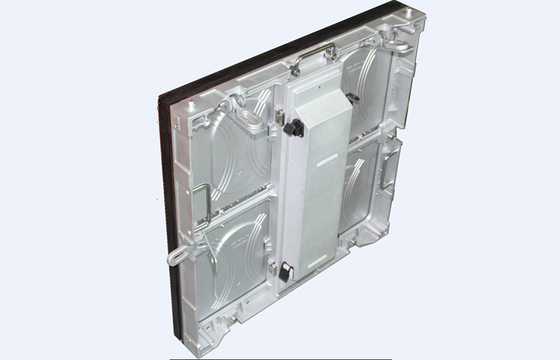

3, LED Cabinet: 640mm x 640mm x 90mm;
4, Cabinet Material: Die casting aluminum;
5, Cabinet Weight: 12.5kg/cabinet;
6, Installation Method: Both hanging up and on stand.
Description:
1, High Contrast Ratio: 4000:1 to display a true color scene;
2, Waterproof: IP65 for outdoor use,waterproof;
3, High Resolution: P6 outdoor rental LED wall is of most high resolution among outdoor rentl LED screens;
4, Large Viewing Angle: Outdoor rental LED display wall P6 utilizing SMD3535 to reach 140 degree horizontally and vertically;
5, High Brightness: P6 LED panel is utilizing high brightness LED chip to reach up to 7000nits for daytime use, the LED panel will show clear and vivid picture even under direct sunshine;
6, Convenient Movement: P6 Rental LED Screens is packed into flight case,convenient movement from one site to next:
Applications:
Concerts
TV Studios
Private Parties
Fashion Shows
Product Launches
Press Conferences
Political Gatherings
Programe Live Broadcast
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6.67 |
| Pixel configuration | SMD3535 |
| Encapsulation | 3 in 1 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 90 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 12.5kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 22477 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥6 |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/6 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P6 LED Wall is of high resolution for both outdoor and indoor rental events use.
2. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
3. Reasonable price: Profit back to customer for long term mutual development cooperation;
4. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;
5. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
6. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;
