Hanging up P3.75 Indoor Rental LED Displays 480mm x 480mm for Concerts

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-3.75S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led full color screen

,

concert led screen
Leave a Message
Product Description

Hanging up P3.75 Indoor Rental LED Displays 480mm x 480mm for Concerts​





Quick Detail:





1. LED Source: SMD2121

2. LED Module Size: 240mm x 240mm;

3. LED Cabinet Size: 480mm x 480mm x 65cm;

4, Cabinet Weight: 6.5kg/cabinet

5. Hanging up on truss and standing on floor;

6. Flight case package;





Description:



1, High resolution: P3.75 is being widely choose for indoor rental LED Screens project because of its high resolution;

2, Ultra light weight: Utilizing extrusion aluminum LED cabinets;

3, Stable quality: extrusion aluminum LED display is of high quality for frequent movement from one site to next;

4, Ultra slim: Rental LED display is designed at 65mm thickness;

5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;

6, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;







Applications:



Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 3.75
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 64 x 64
Module pixel 4096
Module size (mm) 240 x 240
LED CABINET SPECIFICATION

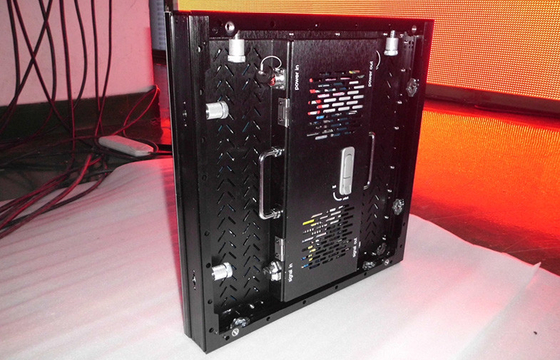

Cabinet size (mm) 480 x 480 x 65
Cabinet resolution (pixels) 128 x 128
Cabinet pixels (pixels) 16384
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 6.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 71111
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥3m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, Full black color LED chips;

2, Contrast ratio up to 4000:1 to react real color of the content;

3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

4, Large viewing angle at 140 degree horizontal and vertical;

5, High resolution for indoor rental events that require high quality presentation;

6, 36 months warranty.
