Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-5SD
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led panel display

,

led full color screen
Leave a Message
Product Description

Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display​







Quick Detail:





1. LED Module Size: 240mm x 240mm;

2. LED Cabinet Size: 480mm x 480mm x 65cm;

3, LED Source: Epistar SMD2121

4, Power Supply: Ulra slim YHY and G energy;

5, Cabinet Weight: 8kg/cabinet

6. LED Cabinet Material: Extrusion Aluminum.





Description:

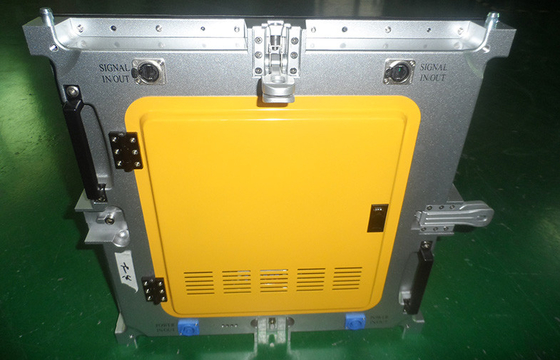

1, This ultra slim P5 indoor rental LED screens is utilizing die casting aluminum cabinet;

2, Stable structure makes it un-damaged under frequent shipment from one site to next;

3, P5 Rental LED Screens utilize full black color LED chips;

4, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;

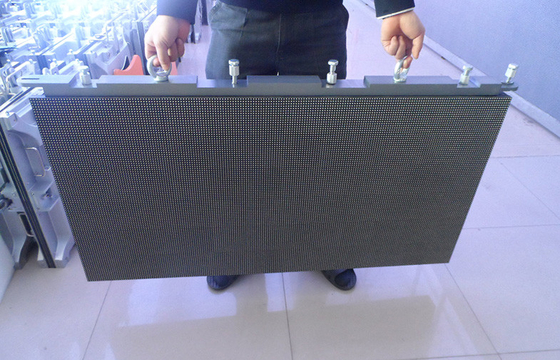

5, P5 indoor LED display screens rental is of light weight for hanging up installation;

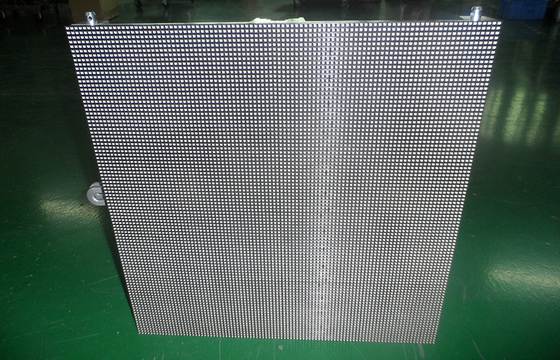

6, Non-gaps coonection. P5 rental LED screens module 240mm x 240mm seamless mounted on LED cabinet;







Applications:

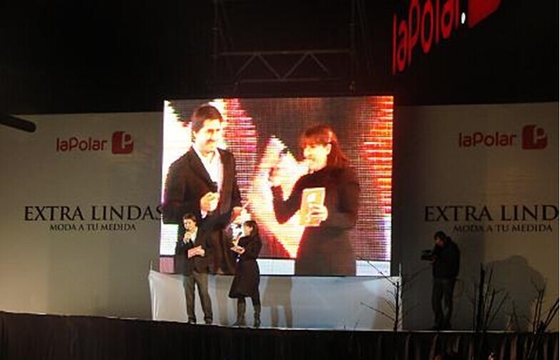

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 5
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 48 x 48
Module pixel 2304
Module size (mm) 240 x 240
LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 85
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Die Casting Aluminum
Cabinet weight (kg) 10kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 40000
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥4m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/10 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;

2, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

3, Large viewing angle at 140 degree horizontal and vertical;

4, Full black color LED chips;

5, PH5 indoor rental LED displays is being widely choose becase of its cost effective and high resolution;

6, High resolution for indoor rental events that require high quality presentation;

Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display 0Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display 1Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display 2

Ultra Thin P5 Indoor Rental LED Screen Hire for Events LED advertising display 3
