High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-3S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led full color screen

,

concert led screen
Leave a Message
Product Description

High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display​





Quick Detail:





1, Full black LED Chips;

2, Sum sery LED driver IC;

3, LED Source: SMD2121

4, LED Module Size: 240mm x 240mm;

5, LED Cabinet Size: 480mm x 480mm x 65cm;

6, Contrast Ratio: 4000:1;







Description:



1, 4000:1 high contrast ratio ensure a vivid and real and natural color display;

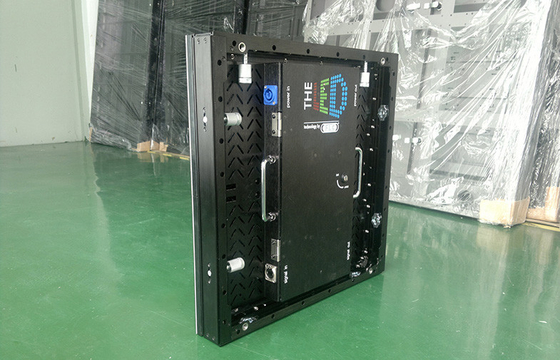

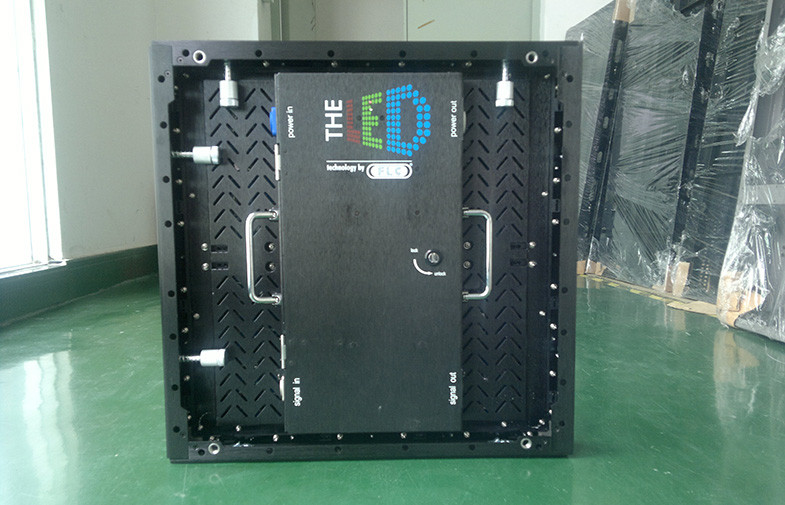

2, Stable quality: extrusion aluminum LED display is of high quality for frequent movement from one site to next;

3, Ultra light weight: Utilizing extrusion aluminum LED cabinets;

4, Ultra slim: Rental LED display is designed at 65mm thickness;

5, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;

6, Full black LED chips together with high refresh frequency,high grey grade features makes P3 indoor rental LED screens color is soft for people's eye, comfortable to watch.







Applications:



Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

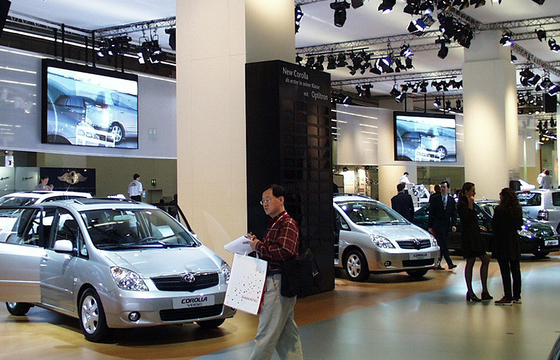

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 3
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 80 x 80
Module pixel 6400
Module size (mm) 240 x 240
LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 65
Cabinet resolution (pixels) 160 x 160
Cabinet pixels (pixels) 25600
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 6.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 111111
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥2.5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, High resolution: about 111111pixel pitches per square meters;

2, Contrast ratio up to 4000:1 to react real color of the content;

3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

4, Large viewing angle at 140 degree horizontal and vertical;

5, High resolution for indoor rental events that require high quality presentation;

6, P3 ultra slim indoor rental LED screens is being widely choose for its rental features.

High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display 0High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display 1High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display 2High Contrast Ratio P3 Rental LED Screens for advertising , LED pixel display 3
