Entertainment Stages Rental Led Screen with WINDOWS XP , WINDOWS 7

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-4.81S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led panel display

,

led full color screen
Leave a Message
Product Description

Entertainment Stages Rental Led Screen with WINDOWS XP , WINDOWS 7





Quick Detail:





1. LED Source: SMD3528

2. LED Module Size: 250mm x 250mm;

3. LED Cabinet Size: 500mm x 500mm x 90cm;

4, Cabinet Weight: 8kg/cabinet

5. Refresh Frequency: Above 2400HZ;

6. Contrast Ratio:4000:1





Description:





1, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;

2, P4.81 Rental LED Screens utilize full black color LED chips;

3, High resolution: P4 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;

4, P4 indoor LED screens rental is of light weight for hanging up installation;

5, Indoor rental LED screens P4 is cost effective compared with P3.91 and P3.75 indoor rental LED displays;

6, Ultra slim: Rental LED display is designed at 90mm thickness;







Applications:

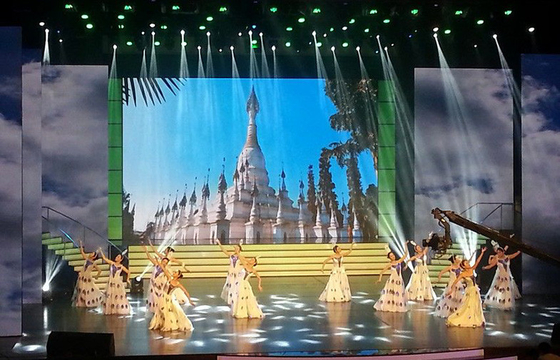

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 4.81
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 52 x 52
Module pixel 2704
Module size (mm) 250 x 250
LED CABINET SPECIFICATION
Cabinet size (mm) 500 x 500 x 90
Cabinet resolution (pixels) 104 x 104
Cabinet pixels (pixels) 10816
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 8kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 43264
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥4m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/10 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, High resolution for indoor rental events that require high quality presentation;

2, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

3, Large viewing angle at 140 degree horizontal and vertical;

4, Full black color LED chips;

5, Contrast ratio up to 4000:1 to react real color of the content;

6, PH4.81 indoor rental LED displays is being widely choose becase it would be more fast to earn back investment compared with indoor P4 rental LED screens.
