3 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-6.25
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led panel display

,

concert led screen
Leave a Message
Product Description

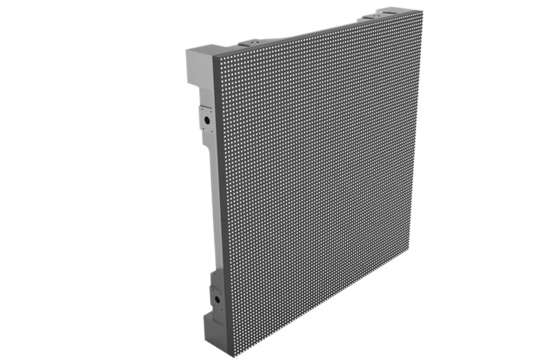

3 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts







Quick Detail:

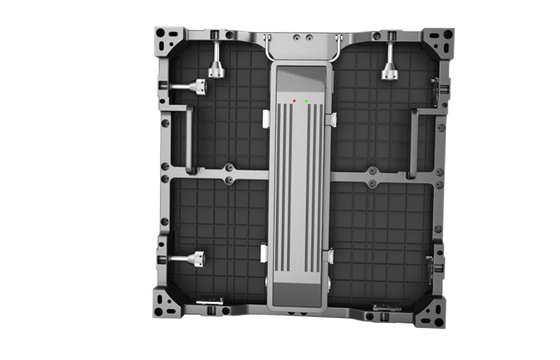

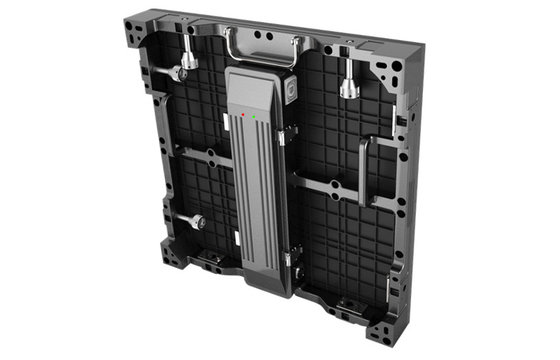

1, Die casting aluminum rental LED screens structure;

2, LED Source: SMD3528

3, Module: 250mm x 250mm;

4. Cabinet: 500mm x 500mm x 90cm;

5. Hanging up on truss and standing on floor;

6. Flight case package;









Description:



1, Stable quality: Die casting aluminum LED display is of high quality for frequent movement from one site to next;

2, P6.25 die casting aluminum rental LED display is widely used for concerts,events,TV studios etc.

3, Ultra light weight: Utilizing die casting aluminum LED cabinets;

4, Ultra slim: Rental LED display is designed at 65mm thickness;

5, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;

6, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets.







Applications:

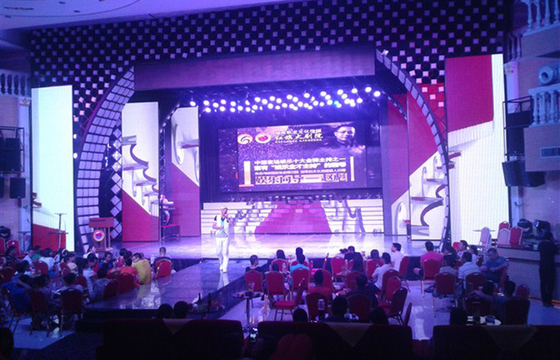

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 6.25
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 40 x 40
Module pixel 1600
Module size (mm) 250 x 250
LED CABINET SPECIFICATION
Cabinet size (mm) 500 x 500 x 90
Cabinet resolution (pixels) 80 x 80
Cabinet pixels (pixels) 6400
Cabinet material Aluminum
Cabinet weight (kg) 8kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 25600
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥6m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/8 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

5. Reasonable price: Profit back to customer for long term mutual development cooperation;

6, P6.25 Rental LED Screens die casting aluminum structure makes it quite a hot choose for indoor rental LED displays project.

3 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts 03 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts 13 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts 23 in 1 SMD3528 P6.25 LED Video Wall Rental for advertising / concerts 3
