1RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OR-10DT
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led panel display

,

concert led screen
Leave a Message
Product Description

1RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum​







Quick Detail:





1, LED Chips: Epistar;

2, LED Driver IC: MBI5020,MBI5024;

3, LED Power Supply: Meanwell;

4, LED Module Size: 320mm x 320mm;

5, Haning up structure;

6, Best vies distance above 8 meteres;





Description:





1, 1RGB PH10 LED Panel rental is traditional rental LED screen type;

2, It's equipped rental LED displays structure like strong hanging pole,fast lockers,hanging bar and bottom pad etc;

3, Cost effective compared with new model die casting aluminum rental LED screens;

4, Flight case package for movable use in different events and sites;

5, LVP605S video process is equipped for multi signal input like HDMI,SDI,Camera,TV etc;

6, Strong cabinet structure support stable on stand installation

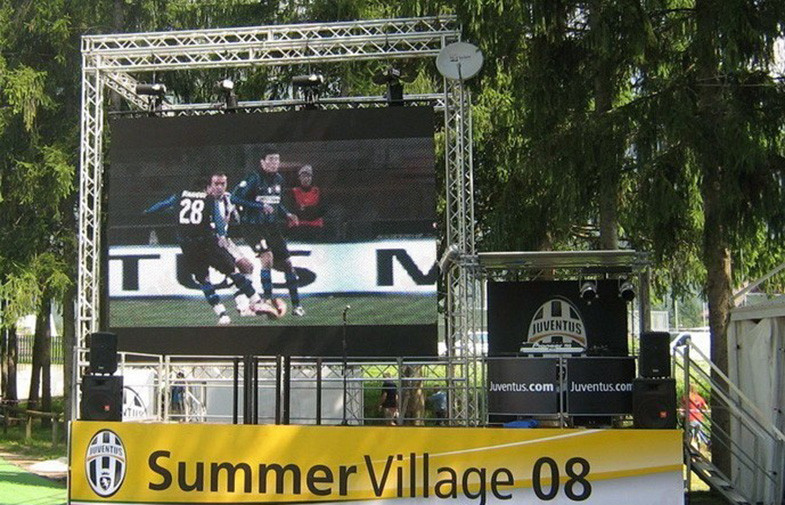

Applications:



Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 10
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 32 x 32
Module pixel 1024
Module size (mm) 320 x 320

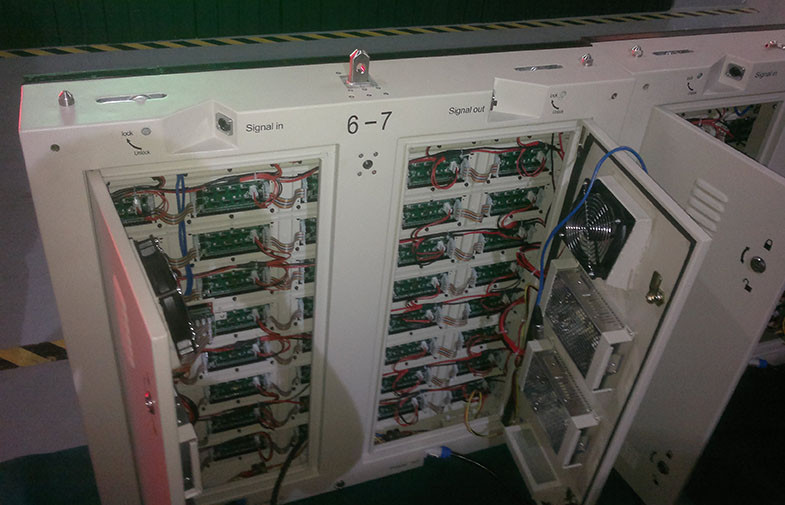

LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 160
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216

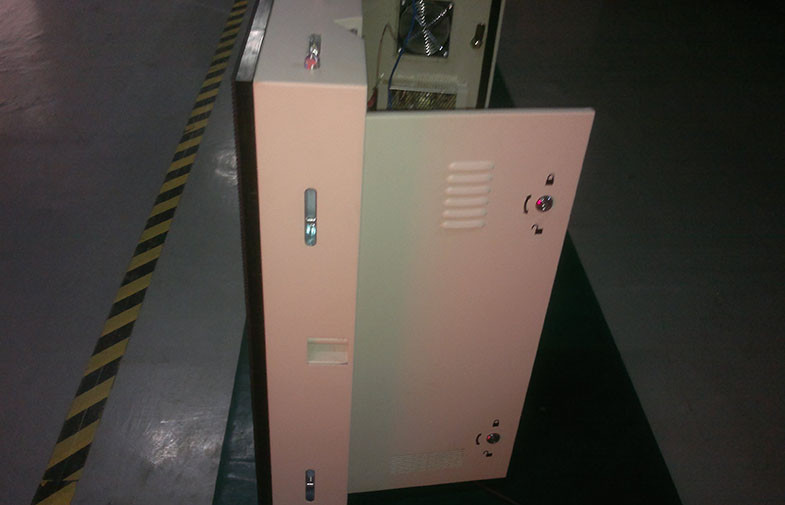

Cabinet material Steel/Aluminum
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 10000
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥8m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥2800
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)

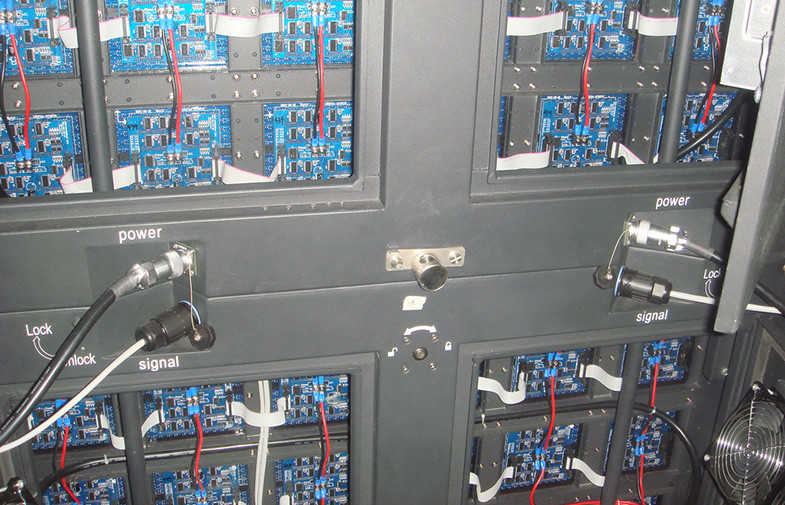

Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1, High resolution for outdor rental LED screens use;

2, Cost effective compared with buying stadium LED screen and rental LED video walls separately;

3, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing MBI5020/MBI5024 driver IC to reach high refresh frequency and high grey grade;

5, IP65 waterproof for both outdoor and indoor use;

6, High brightness up to 8000cd per square meters, insure a clear and vivid image and video display even direct sunshine light.



1RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum 01RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum 11RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum 21RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum 31RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum 4
