Pixel Pitch 3mm Rental LED Display , Full Color Large Led Video Display Panel
Product Details
| High Light | led panel display,led full color screen |
||
|---|---|---|---|
Product Description

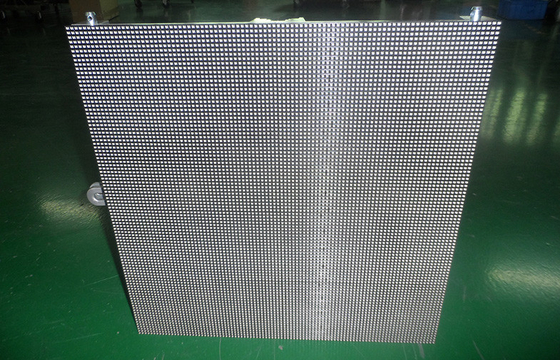

Pixel Pitch 3mm Rental LED Display , Full Color Large Led Video Display Panel
Quick Detail:
1. LED Source: SMD2121
2. LED Module Size: 240mm x 240mm;
3. LED Cabinet Size: 480mm x 480mm x 90cm;
4, Cabinet Weight: 8kg/cabinet
5. Hanging up on truss and standing on floor;
6. 8 cabinets packed into 1 flight case.

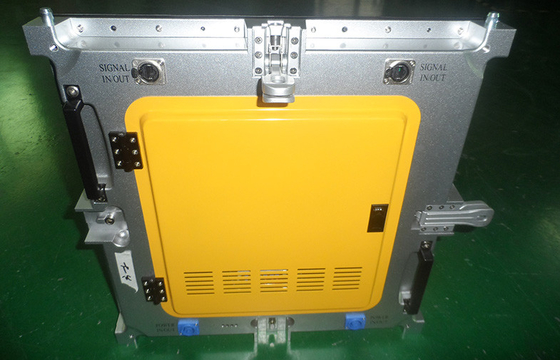

Description:
1, Stable quality: P3 rental LED screens is utilizing die casting aluminum LED display which is of high quality for frequent movement from one site to next;
2, High resolution: P3 is being widely choose for indoor rental LED Screens project because of its high resolution;
3, Ultra light weight: Utilizing extrusion aluminum LED cabinets;
4, Ultra slim: Rental LED display is designed at 90mm thickness;

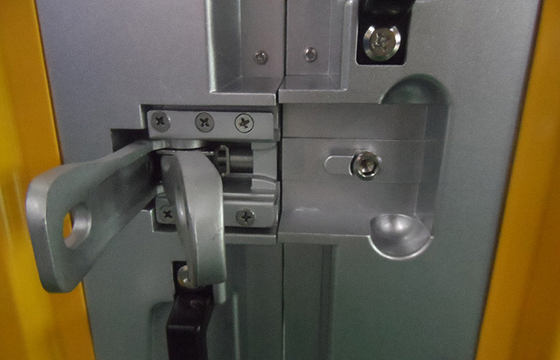

5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 3 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 80 x 80 |
| Module pixel | 6400 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 65 |
| Cabinet resolution (pixels) | 160 x 160 |
| Cabinet pixels (pixels) | 25600 |
| Cabinet material | Die Casting Aluminum |
| Cabinet weight (kg) | 8kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 111111 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥2.5m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/16 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P3 rental LED screens is utilizing full black color LED chips to realize better brightness and color uniform;
2, Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, High resolution for indoor rental events that require high quality presentation;
6, P3 Indoor Rental LED Walls is being choose more and more for its high resolution. P3 LED video wall brings consumers great rental revenues.
