High Density Rental Led Screen P3.91 Indoor Full Color digital billboards

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-3.91S2
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led panel display

,

concert led screen
Leave a Message
Product Description

High Density Rental Led Screen P3.91 Indoor Full Color digital billboards



Quick Detail:

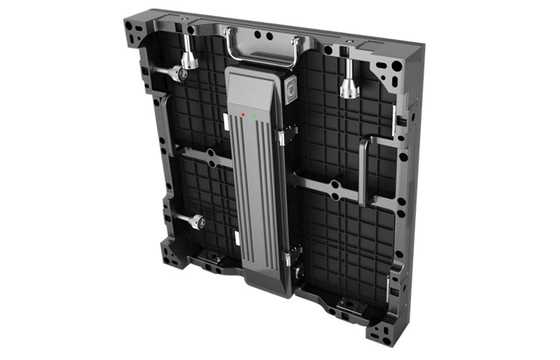

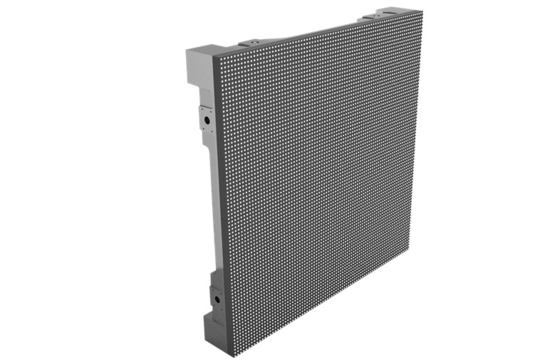

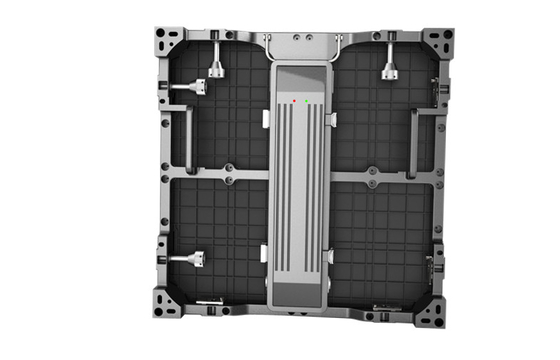

1, Die casting aluminum LED cabinet;

2. Epistar brand LED chips;

3, Sum LED driver IC;

4. LED Module Size: 250mm x 250mm;

5. LED Cabinet Size: 500mm x 500mm x 100cm;

6, Cabinet Weight: 8kg/cabinet







Description:





1, Better preformance:P3.91 Rental LED Display is utilizing full black color LED chips to reach pure and true color effect;

2, Stable quality: Die casting aluminum structure,stable for frequent shipment during rental cases use;

3, High resolution: P3.91 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;

4, Easy assemby: P3.91 indoor LED screens rental is of light weight for hanging up installation;

5, Ultra slim: Rental LED display is designed at 100mm thickness;

7, High refresh frequency: This ensure P3.91 rental LED screens suitable for rental projects with Live broadcast,without water wave and shake.









Applications:



Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 3.91
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 64 x 64
Module pixel 4096
Module size (mm) 250 x 250
LED CABINET SPECIFICATION
Cabinet size (mm) 500 x 500 x 100
Cabinet resolution (pixels) 128 x 128
Cabinet pixels (pixels) 16384
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 8kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 65536
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥3.5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, Contrast ratio up to 4000:1 to react real color of the content;

2, Full black color LED chips;

3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

4, Large viewing angle at 140 degree horizontal and vertical;

5,Seamless connection of LED modules to show a beautiful appearance and playing effect;

6, High resolution for indoor rental events that require high quality presentation;

High Density Rental Led Screen P3.91 Indoor Full Color digital billboards 0High Density Rental Led Screen P3.91 Indoor Full Color digital billboards 1High Density Rental Led Screen P3.91 Indoor Full Color digital billboards 2High Density Rental Led Screen P3.91 Indoor Full Color digital billboards 3
