P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IF-6S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video display board

,

commercial led display
Leave a Message
Product Description

P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays





Quick Detail:





1, Cost effective;

2, LED Chips: Epistar;

3, High resolution at 27777pixels/㎡;

4, LED Source: SMD3528

5, Module: 192mm x 96mm;

6, Cabinet: 768mm x 768mm x 85cm;









Description:





1, P6 Advertising LED Screens is of fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;

2, P6 SMD3528 advertising LED Screens boards is of noiseless fans equipped.

3, P6 indoor full color LED displays is widely used for large size indoor LED screens project as its cost is being less than before;

4, P6 full color indoor LED video screens panels is of high contrast ratio at 4000:1 to show a clear and vivid image;

5, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;

6, Ultra slim: P6 indoor full color LED displays is designed at 90mm thickness;







Applications:



Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display

Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen









Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 6
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 32 x 16
Module pixel 512
Module size (mm) 192 x 96
LED CABINET SPECIFICATION
Cabinet size (mm) 768 x 768 x 85
Cabinet resolution (pixels) 128 x 128
Cabinet pixels (pixels) 16384
Cabinet material Aluminum
Cabinet weight (kg) 19kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 27777
Brightness(cd/m2) ≥15000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/10 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1, P6 advertising LED Screens ultra slim aluminum structure makes it quite a hot choose for indoor rental LED displays and full color indoor LED screens project;

2, The P6 full color electronic LED billboards is suitable for both rental and fixed installation use;

3, Its stable structure support hangin up at 200kg LED cabinets vertically;

4, Reasonable price: Profit back to customer for long term mutual development cooperation;

5, Large viewing angle at 140 degree both horizontally and vertically;

6, High contrast ratio at 4000:1.

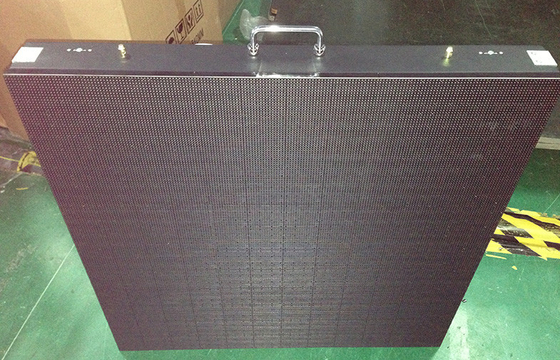

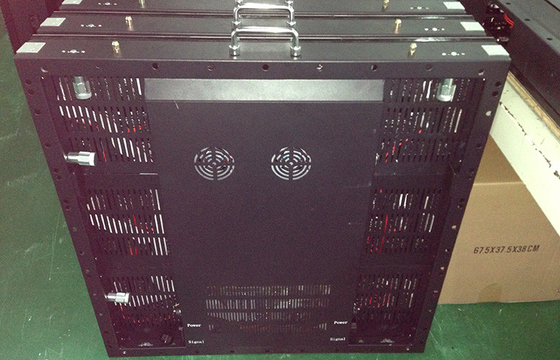

P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays 0P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays 1

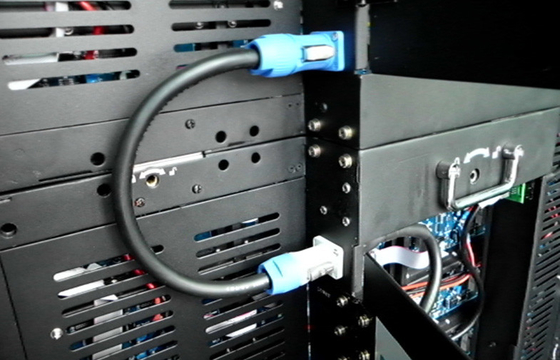

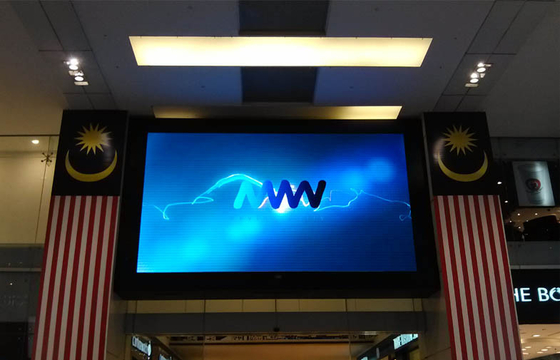

P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays 2P6 Advertising LED Screens , High Contrast Ratio Indoor Full Color LED Displays 3
