High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IF-4S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

high definition led display

,

commercial led display
Leave a Message
Product Description

High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards



Quick Detail:





1. LED Source: SMD2020

2. LED Module Size: 256mm x 128mm;

3, SteelLED cabinet;

4. LED Cabinet Size: 768mm x 768mm x 90cm;

5, Cabinet Weight: 22kg/cabinet

6. Lisn control software;









Description:





1, High refresh frequency: This ensure P4 indoor LED screens suitable for rental projects with Live broadcast,without water wave and shake.

2, P4 indoor full color LED Display screen is utilizing full black color LED chips to reach pure and true color effect;

3, High resolution: P4 LED video panels is being widely choose for indoor advertising LED Screens project because of its high resolution;

4, P4 SMD2121 advertising LED screens is of large viewsing angle at 140 degree horizontally and vertically;

5, Seamless connection: Indoor full color LED video screens cabinet surface is uniform;

6, Ultra slim: P4 full color LED indoor displays is designed at 95mm thickness for convenient installation when space is limited;









Applications:





Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

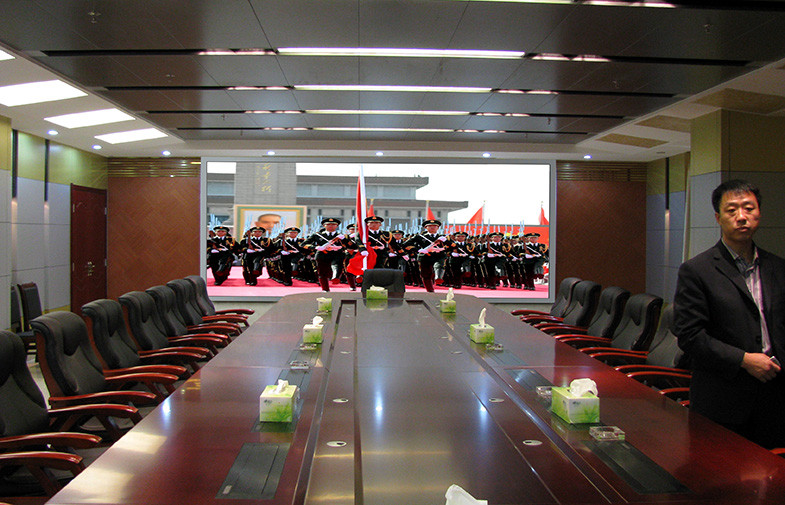

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display

Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 4
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 60 x 60
Module pixel 3600
Module size (mm) 240 x 240
LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 65
Cabinet resolution (pixels) 120 x 120
Cabinet pixels (pixels) 14400
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 6.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 62500
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥3.5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, Large viewing angle at 140 degree horizontal and vertical;

2, P4 LED display screens is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;

3, P4 indoor full color LED video display uniform in brightness and color;

4, Full color SMD2121 P4 LED screens is utilizing full black color LED chips;

5, Indoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

6, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;



High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards 0High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards 1High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards 2High Performance Indoor P4 LED Advertising Display SMD2121 LED Video Boards 3
