SMD3528 Indoor Advertising LED Display Full Color P4.8 For Conference Room
Product Details
| High Light | led video display board,commercial led display |
||
|---|---|---|---|
Product Description

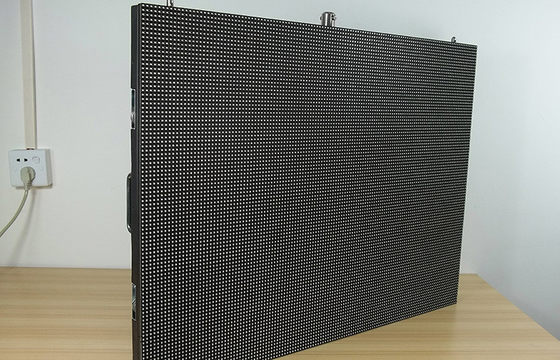

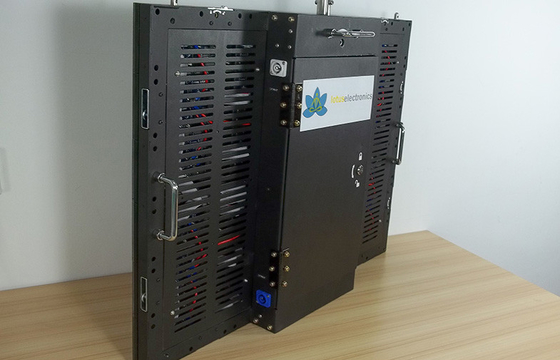

SMD3528 Indoor Advertising LED Display Full Color P4.8 For Conference Room
Quick Detail:
1. LED Module Size: 240mm x 240mm;
2. LED Cabinet Size: 480mm x 480mm x 65cm;
3, LED Source: Epistar SMD2121
4 Power Supply: Ulra slim YHY and G energy;
5, Cabinet Weight: 8kg/cabinet
6. LED Cabinet Material: Extrusion Aluminum.
Description:
1, P4.8 advertising LED Screens utilize full black color LED chips;
2, High resolution: P4.8 LED video panels is being widely choose for indoor rental LED Screens project because of its high resolution;
3, Indoor P4.8 commercial LED advertising screens is being widely choose for church LED displays use because of its high resolution and cost effective;
4, P4.8 indoor LED display screens rental is of light weight for hanging up installation;
5, Ultra slim: Rental LED display is designed at 100mm thickness;
6, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
Applications:

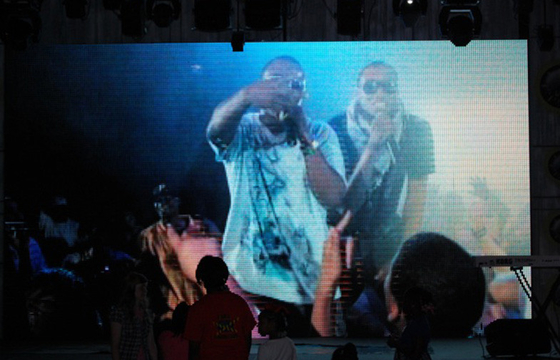

Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Airport Advertising LED displays
Car exhibition Advertising LED displays
Conference room Advertising LED displays
Shopping Mall Advertising LED displays
Street Advertising LED Billboard
Stores LED Advertising Display
Specifications :
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 4.8 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 50 x 50 |
| Module pixel | 2500 |
| Module size (mm) | 240 x 240 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 480 x 480 x 85 |
| Cabinet resolution (pixels) | 100 x 100 |
| Cabinet pixels (pixels) | 10000 |
| Cabinet material | Extrusion Aluminum |
| Cabinet weight (kg) | 8kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 43264 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥4m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/16 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P4.8 indoor LED screens high resolution for indoor rental events that require high quality presentation;
2, PH4.8 indoor rental LED displays is being widely choose becase it would be more fast to earn back investment compared with indoor P4.8 rental LED screens.
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, Full black color LED chips;
6, Contrast ratio up to 4000:1 to react real color of the content;
