Basketball Stadium LED Displays , P20 Sporting LED Screen Boards
Product Details
| High Light | sports perimeter led display,led digital display |
||
|---|---|---|---|
Product Description
Basketball Stadium LED Displays ,P20 Sporting LED Screen Boards
Quick Detail:
1. IP65 waterproof for outdoor use;
2. High refresh frequency above 2400HZ;
3. P20 stadium LED display is cost effective;
4. P20 perimeter LED screen is of soft module mask;
5. Sports LED display is of soft pillow on top of each cabinet;
6. Adjustable back brackets on each cabinet;
Description:
1. P20 sports stadium LED displays high refresh rate frequency above 2400HZ to insure flickering free image and videos for television camera and live broadcast during a sporting match, and this is highly important for football perimeter LED screen;
2. Football sports LED screens project is utilizing dual computer control system;
3. For sporting LED screen project, two computers are connected to ensure interruption-free of the LED display advertising image and videos. If one computer turn off due to technical issues during the sports match,the other one will automatically act as a backup computer to insure stadium LED display working well;
4. Outdoor advertising P20 stadium LED display is utilizing high brightness Epistar LED chips to reach up to 8000cd/㎡. The LED video screens present a clear and vivid image, even under direct sunshine;

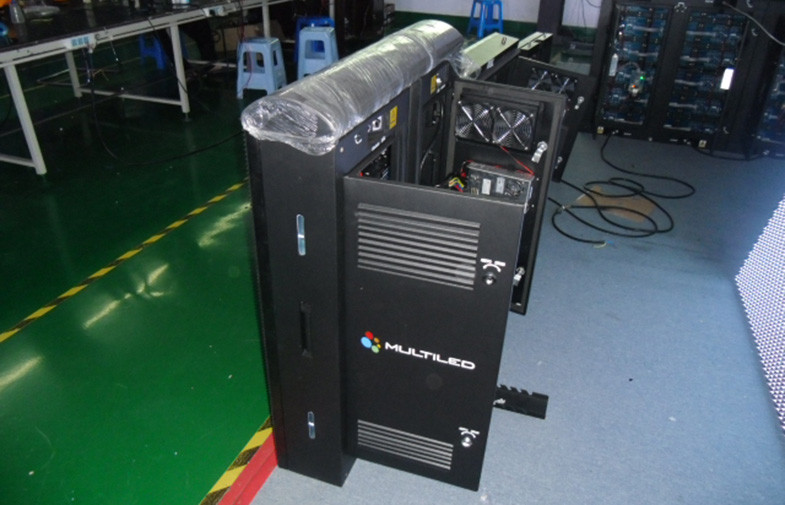

5. Perimeter LED display screens P20 soft module mask and soft pillow on top of each cabinet,adjustable back brackets structure.
6. Fiber optics converter is equipped for far distance over 100 meters LED display signal transfer;
Applications:
Stadium LED Display
Perimeter LED Screen
Football Stadium LED Screen
Football Perimeter LED Display
Basketball Stadium LED Displays
Soccer LED Display
Baseball Stadium LED Display Screens
Sporting Stadium LED Video Display
Sports Perimeter LED Screen
Sports Club LED Display

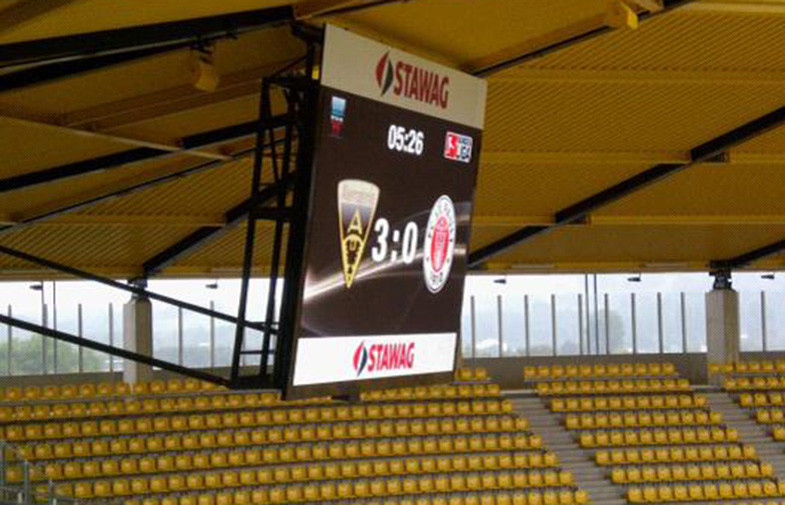

LED Score Boards
LED Score Display
LED Digital Scoreboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 20 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 16 x 16 |
| Module pixel | 256 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 48 x 48 |
| Cabinet pixels (pixels) | 2304 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 2500 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥18m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Full color P20 LED display used as sports LED display advertising is eye-catching active advertising effect deliver to more audience and gain more revenues;
2, Multi signal input: Through video processor, the P20 outdoor screens support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc;
3. P20 sporting LED screen is utilizing DIP LED lamp technology for better waterproof and high brightness;

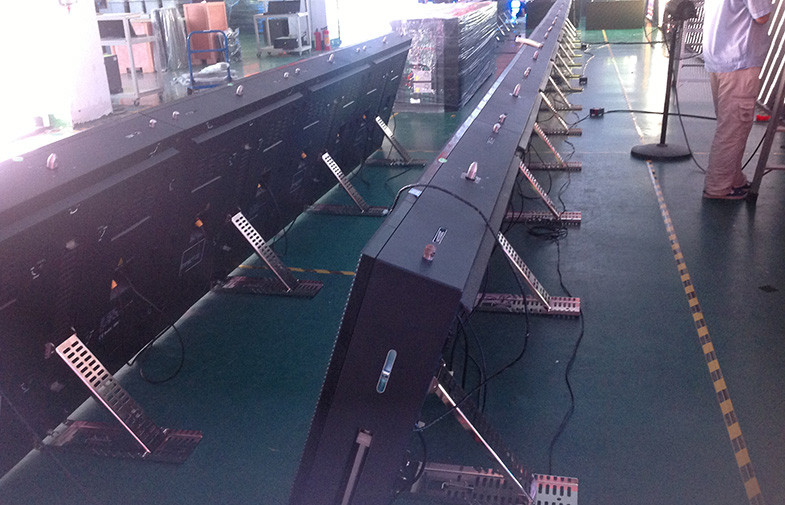

4. Soft module mask and soft pillow on top of each cabinet,adjustable back brackets structure.The soft pillow is movable and can be taken off after stadium LED display use, also brackets can be retracted to LED wall back door.After these steps, the screen can be used as rental LED screen;
5, P20 football perimeter LED screen spare parts are of best quality components, like Epistar LED chips, MBI5020, MBI5024 IC driver, Meanwell power supply and Neutric power and signal connectors etc.;

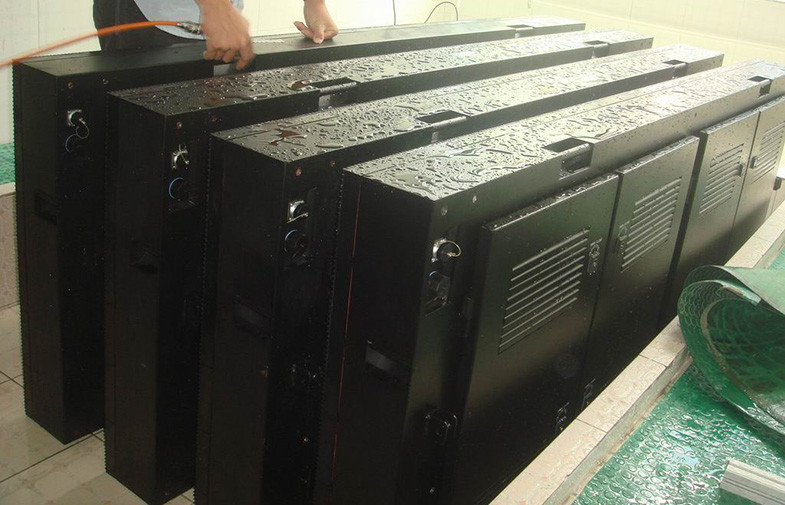

6, Stadium LED display P20 is of stable waterproof function at IP65. Silicon injection is well done in surface of LED module, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinet, also all outdoor LED walls PCB is printed few layers glue for moistureproof, dustproof and anti-corrosion;
