Eco - friendly Aluminum Square Led Panel Light for Home / 70Ra Square Thin LED Lights
Product Details
| High Light | led panel light,commercial led outdoor lighting |
||
|---|---|---|---|
Product Description

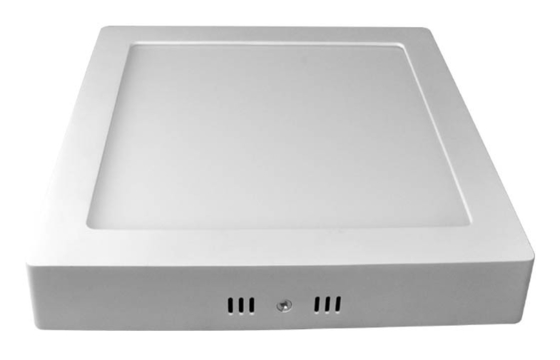

Eco - friendly Aluminum Square Led Panel Light for Home / 70Ra Square Thin LED Lights
General Description:
Led panel uses aerometal shell, very simple and fashionable . Different sprayed colors available for your choice； It takes high brightness led lamp, side-emitting design,ultra thin height；Use constant current driver,No flicker, no glare, very soft and even light；High light efficiency , low power consumption, save much energy ,Lift time could reach 50,000 hrs,Easily embedded installation.
Features:
High efficiency & energy saving. Under the condition of the same llumination,, it saves more than 67% energy compared with the traditional lamp.
Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.
No UV & IR . It won’t distribute ray radiation
Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won’t generate EMI.
High performance external constant current drivers,no stroboscopic, good for eyesight protection;
Technical Parameters:
Power parameters:
| nput Voltage/Frequency | AC85-265V 50/60Hz |
| Input Current(Typ) | 0.075A |
| Output Voltage | DC36-65V |
| Output Current | 300mA |
| Power | 16W |
| Power Factor(Typ) | PF>0.90 |
| Efficiency(Typ) | η>0.85 |
Lighting parameters
| LED Chips Quantity | 80(2835) pcs |
| Lumen Output | 1500±100lm |
| Color Temperature | 3000K/4000K/6000K |
| Color Rendering Index | Ra≥70 |
| Viewing Angle | 120° |
| Dimensions | 220*220*40mm |
| Operating Temperature | -25～60 ℃ |
| Storage Temperature | -40～80 ℃ |
| IP Grade | IP54 |
| Lumen Maintenance | >85%(5000Hrs) |
| Life-span | 50000Hrs |
| Appliance Class | ClassⅡ |
Note: Light optic with a little deviation for different color temperature LED ,deviation value≤5%
Test Report:
Installation Introduction:
