300 * 600 Commercial LED Light / LED Panel Lighting IP54 waterproof
Product Details
| High Light | commercial led outdoor lighting,led panel light |
||
|---|---|---|---|
Product Description

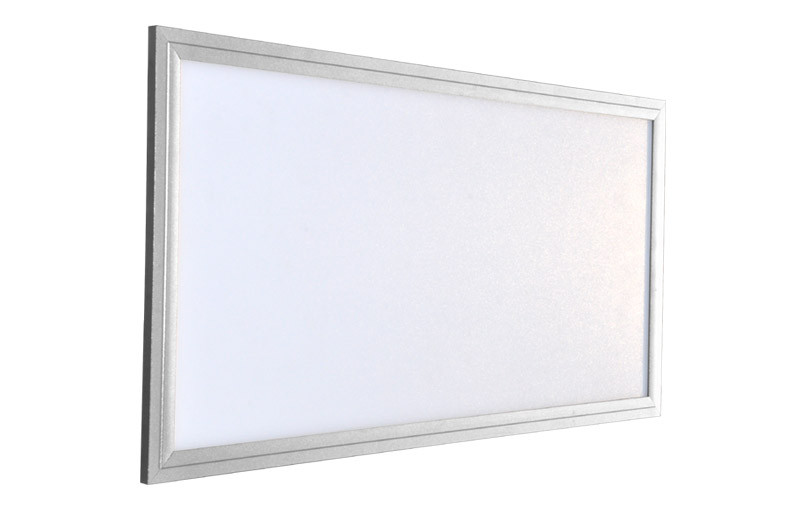

300 * 600 Commercial LED Light / LED Panel Lighting IP54 waterproof
General Description:
Led panel uses aerometal shell, very simple and fashionable . Different sprayed colors available for your choice； It takes high brightness led lamp, side-emitting design,ultra thin height；Use constant current driver,No flicker, no glare, very soft and even light；High light efficiency , low power consumption, save much energy ,Lift time could reach 50,000 hrs,Easily embedded installation.
Features:
High efficiency & energy saving. Under the condition of the same llumination,, it saves more than 67% energy compared with the traditional lamp.
Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.
No UV & IR . It won’t distribute ray radiation
Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won’t generate EMI.
High performance external constant current drivers,no stroboscopic, good for eyesight protection;
Technical Parameters:
Power parameters:
| Input Voltage/Frequency | AC85-265V 50/60Hz |
| Input Current(Typ) | 0.104A |
| Output Voltage | DC30-40V |
| Output Current | 500mA |
| Power | 22W |
| Power Factor(Typ) | PF>0.90 |
| Efficiency(Typ) | η>0.85 |
Lighting parameters
| LED Chips Quantity | 216(3014) pcs |
| Lumen Output | 2000±100lm |
| Color Temperature | 3000K/4000K/6000K |
| Color Rendering Index | Ra≥70 |
| Viewing Angle | 120° |
| Dimensions | 300*600mm |
| Operating Temperature | -25～60 ℃ |
| Storage Temperature | -40～80 ℃ |
| IP Grade | IP54 |
| Lumen Maintenance | >85%(5000Hrs) |
| Life-span | 50000Hrs |
| Appliance Class | ClassⅡ |
Note: Light optic with a little deviation for different color temperature LED ,deviation value≤5%
Test Report:
Installation Introduction:
Note:
1. Input voltage AC86-AC265V, Please power off when installation to prevent electric shock.
2. Product IP54 waterproof level,Indoor use only and don’t used in high temperature place.
3. When the temperature is too high,Over-temperature control circuitry activates, Output will be cut off,and the lamp will light off for a few minutes,After lowering temperature will be back to normal.
Warranty
Our company's products are used in constant current power supply, the whole lamp warranty for two year, one month replacement
Remark:The warranty on the base of right storing way,right installing way,right using way,right maintaining way.Any broken out of our rule,out of our warranty.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
