P10mm Indoor Mobile Rental LED Display Board For Stage Background

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin CHINA
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P10MM
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Product Details
High Light

led panel display

,

led full color screen
Leave a Message
Product Description

Specifications

P10mm indoor mobile rental led display board for stage background
1.Large viewing angle;
2.Perfect color mixing effect

P10mm indoor mobile rental led display board for stage background



Led sign board:
1. High intensity,No mosaic
2. Low power consumption
3.Competitive price, super design
4. CCC,CE,ROHS,ISO



Features:

1. High-precision optical design of LED, each pixel is integrated by RGB LED chips.


2. Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB colors mixed and condensed sufficiently and creates no granular sensation.


3. Good performance in flatness, uniformity, consistency and clarity.


4. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity , and being anti-UV, waterproof, anticorrosion and antirust.


5. Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements.


6. Large viewing angle, up to 150°horizontally and 140°vertically, with no image distortion and no color cast at any angle within this range.


7. All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to be IP40.



Specifications :

Pixel pitch (mm)

10mm

Cabinet size (mm)

960*960mm

Brightness (nit)

>2500nit

Module size (mm)

160*160mm

Pixel configuration (R,G,B)

1,1,1

Pixel matrix per module (dot)

16*16 dot

Pixel (dot/s.q.m)

10000 per sqm

Viewing distance (Min) (m)

10m

Gray scale (level)

16394

Refresh frequency (Hz)

>600Hz

Input power (max/avg)

640/400 W

Viewing angle-H (deg.)

120 (+60/-60) degree

Viewing angle-V (deg.)

60 (+30/-30) degree

Blind spot rate

<1/10000

Color temperature (K)

6500K

Ingress protection (front/rear)

IP65/IP43

Input voltage (AC)

110 ~ 240V

Input power frequency (Hz)

50 or 60 Hz

Signal input format (with video processor)

AV, S-Video, VGA, DVI, YPbPr,
HDMI, SDI

Operating system

Windows (98/2000/XP/Vista)







P10mm Indoor Mobile Rental LED Display Board Cabinet:

P10mm Indoor Mobile Rental LED Display Board



P10mm Indoor Mobile Rental LED Display Board Prat Of Case:

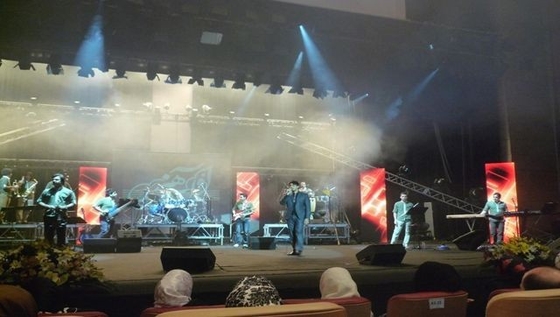

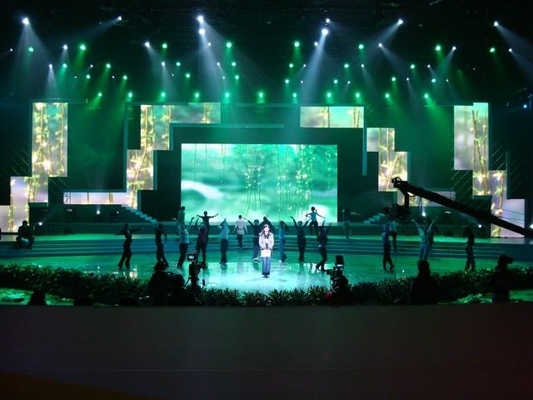

P10mm Indoor Mobile Rental LED Display Board For Stage Background 1

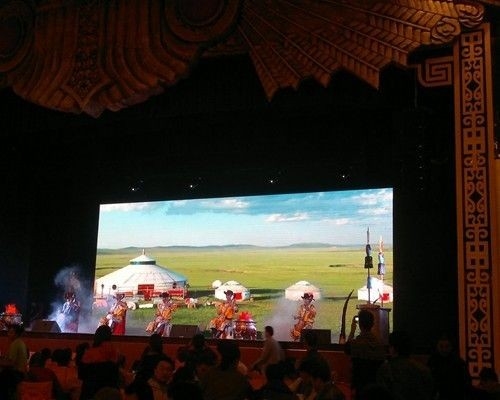

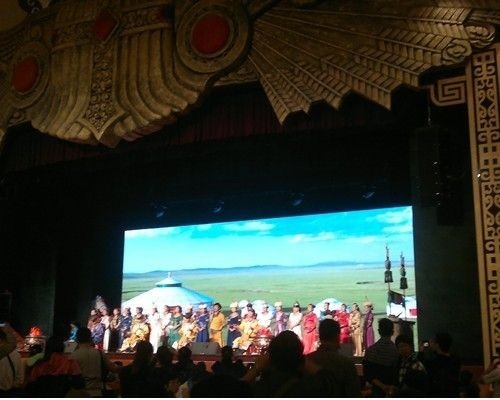

P10mm Indoor Mobile Rental LED Display Board For Stage Background 2
