LAN / Wifi / 3G Intelligent Advertising Led Screen , Full Color Led Signs Outdoor
Product Details
| Gray Scale | 14 Bit | Pixel Pitch | 4mm |
|---|---|---|---|
| LED Configuration | SMD2121 | IP Rating | IP65 |
| High Light | high definition led display,led video display board |
||
Product Description

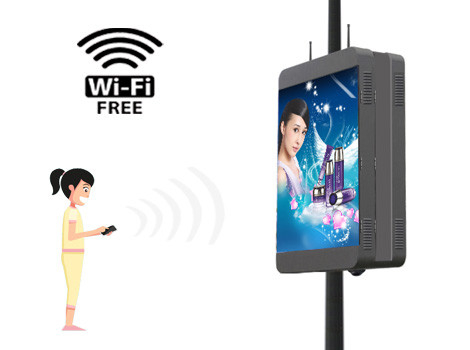

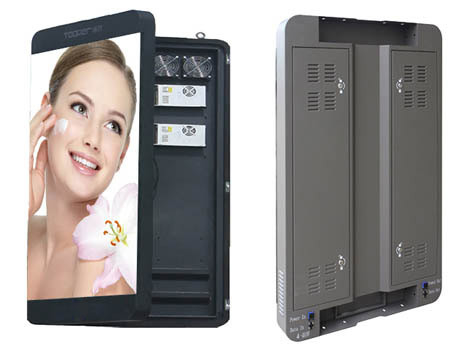

New products Street Light Pole LED Display instead of tradition street light box, YUCHIP is a brand created to make a consistent impression that etches our desired brand image into the minds of our target prospects, HD advertising video dazzle coming to your life and your business, flourshing everywhere.
Flexible: Shorter lead time, multiple branding exposure and cost effective.
Reachable: Reaching out the unreachable population.
Bright: Clear LED Displays on lamp posts along the busiest roads.
| Sunrise Postar Display | P4 | P5 | P6 | P8 |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm |
| LED Configuration | 1R1G1B SMD2121 | 1R1G1BSMD2727 | 1R1G1BSMD3535 | 1R1G1BSMD3535 |
| Pixel Density | 62500dot/m2 | 40000dot/m2 | 27778dot/m2 | 15625dot/m2 |
| Module Size | 256x128mm | 160x160mm | 192x192mm | 256x128mm |
| Module Resolution | 64x32dot | 32x32dot | 32x32dot | 32x16dot |
| Display Size | 768x1536mm | 800x1600mm | 768x1536mm | 768x1536mm |
| Cabinet Size | 768x1740x80mm | 800x1850x80mm | 768x1740X80mm | 768x1740X80mm |
| Cabinet Resolution | 192x384dot | 160x320dot | 128x256dot | 96x192dot |
| Cabinet Weight | 55kg | 60kg | 55kg | 55kg |
| IP Rating ( front/back) | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 16S | 16S | 8S | 8S |
| Brightness Intensity | ≥2000CD/m2 | ≥5500CD/m2 | ≥7000CD/m² | ≥6500CD/m² |
| Viewing Angle (H/V) | 120° | 120° | 120° | 120° |
| View Distance | >4m | >5m | >6m | >8m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 720 W/m² | 800 W/m² | 900 W/m² | 1000 W/m² |
| Ave.Power Consumption | 210 W/m² | 280 W/m² | 300 W/m² | 400 W/m² |
| Refresh Frequency | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ |
| Environmental | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
| Brightness Adjustment | 0 - 100 levels adjustable | |||
| Control Mode | Asynchronous system | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC100 / AC240 50 / 60HZ | |||
| Operating Temperature | - 20℃~+50℃ | |||
| Operating Humidity | 10~90% RH | |||
| Operating Life | 100,000hours | |||
