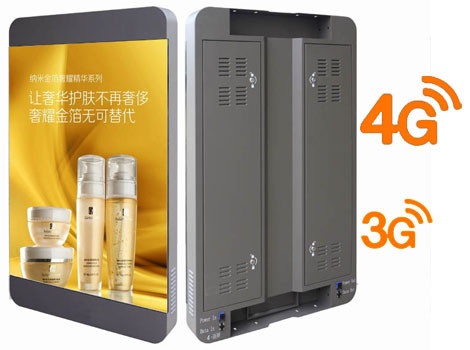

120 Deg View Angle Outdoor Led Advertising Display Full Color , 14 Bit Gray Scale

Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P4
Minimum Order Quantity 1
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Supply Ability 5000㎡/Month
Product Details
Gray Scale 14 Bit Pixel Pitch 4 5 6 8
IP Rating IP65 Viewing Angle (H/V) 120
High Light

led video display board

,

commercial led display

Leave a Message
Product Description

Flexible: Shorter lead time, multiple branding exposure and cost effective.
Reachable: Reaching out the unreachable population

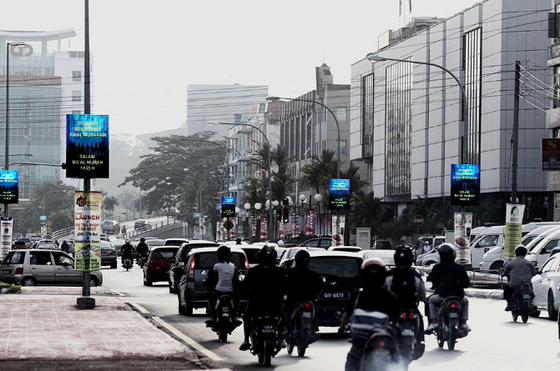

Bright: Clear LED Displays on lamp posts along the busiest roads
Product Description

New products instead of tradition street light box, YUCHIP is a brand created to make a consistent impression that etches our desired brand image into the minds of our target prospects, HD advertising video dazzle coming to your life and your business, flourshing everywhere. Postar led display replace normal advertising light.

Commercial advertising LED display screen.
Stadium perimeter LED display screen.
Mobile trailer LED display screen for mobile media.
Shopping mall LED display screen for logo showing.
Bank & stock exchange LED display screen for rates showing.
Train & bus station LED display screen.
Air port LED display screen.
Telecommunication LED display screen system for information showing and instruction.

Features for wifi/3G P4/P4.8/P6 series led display/billboard/panel/screen:
1.Innovative Design, Elegant appearance, with acrylic and Aluminum alloy material.
2.High brightness, anti-sunshine, Anti-dust and waterproof. Used for outdoor.
3.Easy installation, can be hanging , side mount and pretended installation.
4.Dynamic display, animation , pictures, etc.
5.Single and double sided display.
6.Synchronization and asynchronous control, also can be controled by Mobile phone.



Sunrise Postar Display P4 P5 P6 P8
 Pixel Pitch 4mm 5mm 6mm 8mm
 LED Configuration  1R1G1B SMD2121 1R1G1BSMD2727 1R1G1BSMD3535 1R1G1BSMD3535
 Pixel Density  62500dot/m2 40000dot/m2 27778dot/m2 15625dot/m2
 Module Size  256x128mm 160x160mm 192x192mm 256x128mm
 Module Resolution  64x32dot 32x32dot 32x32dot 32x16dot
 Display Size  768x1536mm 800x1600mm 768x1536mm 768x1536mm
 Cabinet Size  768x1740x80mm 800x1850x80mm 768x1740X80mm 768x1740X80mm
 Cabinet Resolution  192x384dot 160x320dot 128x256dot 96x192dot
 Cabinet Weight  55kg 60kg 55kg 55kg
 IP Rating ( front/back) IP65 IP65 IP65 IP65
 Scanning Mode 16S 16S 8S 8S
 Brightness Intensity  ≥2000CD/m2 ≥5500CD/m2 ≥7000CD/m² ≥6500CD/m²
 Viewing Angle (H/V)  120° 120° 120° 120°
 View Distance >4m >5m >6m >8m
 Gray Scale 14bit 14bit 14bit 14bit
 Display Scale 16.7M 16.7M 16.7M 16.7M
 Max.Power Consumption  720 W/m² 800 W/m² 900 W/m² 1000 W/m²
 Ave.Power Consumption 210 W/m² 280 W/m² 300 W/m² 400 W/m²
 Refresh Frequency ≥960HZ ≥960HZ ≥960HZ ≥960HZ
 Environmental  OUTDOOR OUTDOOR OUTDOOR OUTDOOR
 Brightness Adjustment 0 - 100  levels adjustable
 Control Mode Asynchronous system
 Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
 Operation Power AC100 / AC240    50 / 60HZ
 Operating Temperature  - 20℃~+50℃
 Operating Humidity 10~90% RH
 Operating Life 100,000hours



street lighting pole led billboard



street lighting pole led panel aging
