P3 Indoor Rental LED Screen SMD High Definition Led Video Display

Place of Origin CHINA
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number P3MM
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Product Details
High Light

led panel display

,

concert led screen

Leave a Message
Product Description

P3 Indoor Rental LED Display SMD LED Screen High Definition Led Video Display Features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable

Advantage :
1.Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2.Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3.Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4. Good color blending: Display clear, exquisite, nature color video even at close distance;
5. Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures (BMP/JPG/GIF/PCX…..) and video (MPG/MPEG/MPV/MPA/AVE/VCD/SWF/RM/RA/RMJ/ASF)
Viview led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on.



P3 Full Color Rental Led Displaly SMD2121 Indoor Module
Item Unit Parameter
Pixel Pitch mm 3
Resolution of Module dots 64×64
Module Size mm 192×192
Module Weight kg 0.4
Pixel Configuration SMD21211R1G1B
Chip Brand of LEDs Epistar
Pixel Density dots/sqm 11,1111
Brightness (White Balance) nits(cd/sq.m) 1200-1500mcd
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode 1/16 Scan
Viewing Distance M 3--35
Best View Distance M 5--15
Viewing Angle-Horizontal deg. 120
Viewing Angle-Vertical deg. 120
Module Maximum Power W 25
Max. Power Consumption W/sq.m 1,000
Avg. Power Consumption W/sq.m 300
Working Voltage 5V 40A
Power Supply AC 110/220V
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥ 60
Gray Scale 4096 grades gray
Display Color 256*256*256
Display Function Text,news,advertising,flash,animation
Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Defective Dot Rate <0.0001
Life Span hours 100,000
MTBF hours >5,000
Storage Temperature °C 45
Working Temperature °C          -20 -- +60
Working Humidity 10-90%RH
Control System Synchronization or Asynchronization
Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008



About YUCHIP:

Company Information
Shenzhen YUCHIP Lighting CO.,Ltd,a professional manufaturer specialized in the design,manufacture,sales and service of LED display,was founded in 2004---a most important industrial center of western Shenzhen.

Since established,YUCHIP have built up a highly-qualified group in LED display,which is equipped with abundant experiences in R&D,production and management as well as engineering service.

It now have over 200 employees,including 20 talented engineers who have been working in LED industry for over 12 years and thus have accumulated rich R&D experience.With over 4000 m2 output per month,we can well satisfy the growing market and provide more stable quality products.

By virtue of various hi-tech advanced equipments and our new production base,YUCHIP has successfully passed ISO9001:2008 and ISO 14001:2004,in addition to certification of UL,CE,TUV,RoHS,and CCC,etc.With over 7 years of progressive endeavors,YUCHIOP have forced its way to a number of industries both at home and abroad,building a strategic partnership with customers and winning over a stable global market.

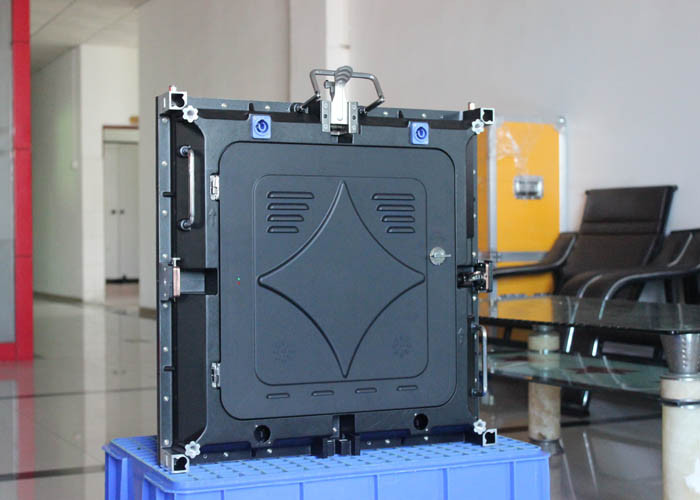

P3 Indoor Rental LED Screen SMD High Definition Led Video Display 0

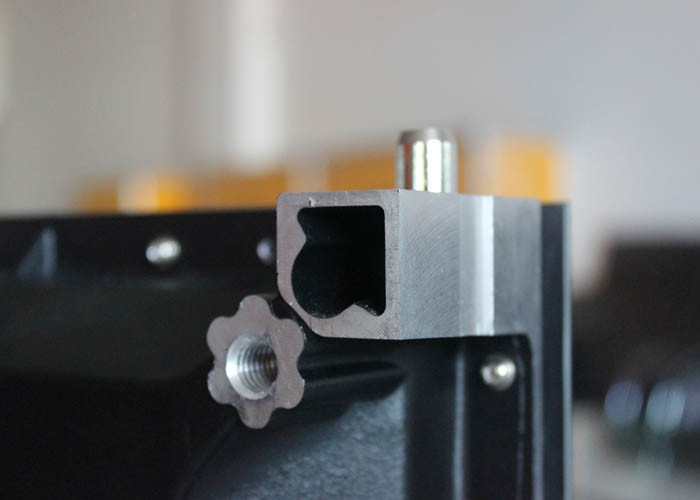

P3 Indoor Rental LED Screen SMD High Definition Led Video Display 1

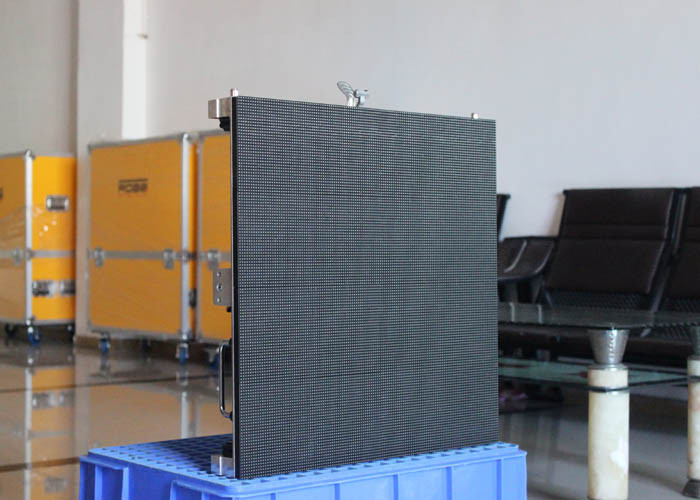

P3 Indoor Rental LED Screen SMD High Definition Led Video Display 2
