High Definition HD Led Screen Display , Small large led video wall panels
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Configuration | SMD1010 Black Led | Data Refresh Rate | ≥2880HZ |
|---|---|---|---|
| Color Temperature | 6,500 | Input Power (max) | 120 |
| Highlight | outdoor led video display,led video wall rental |
||
Product Description
High Definition HD Led Screen Display , Small large led video wall panels

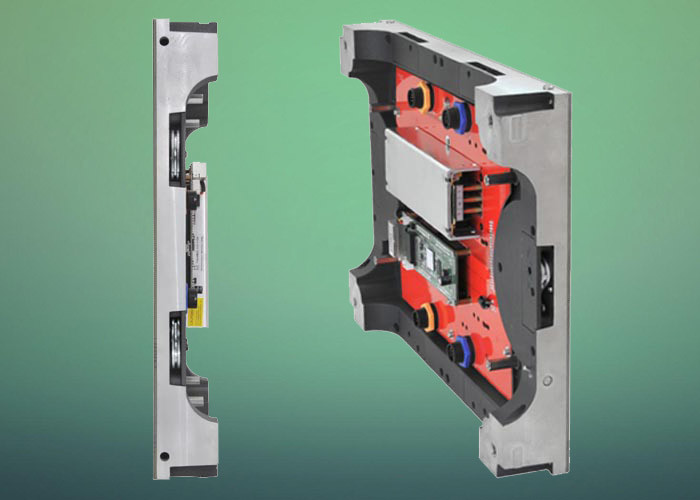

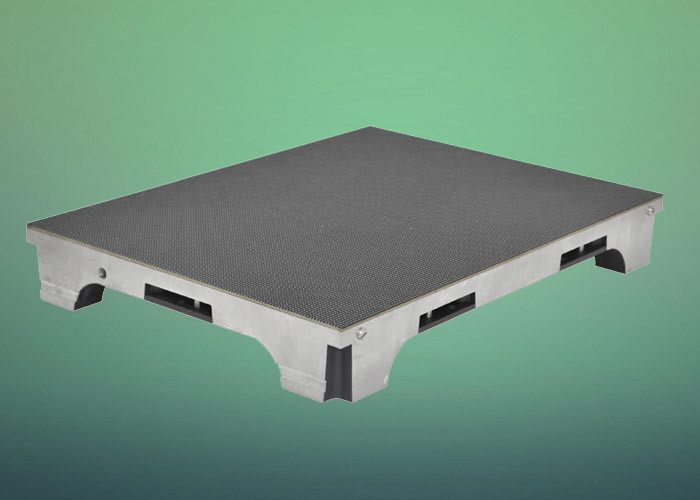

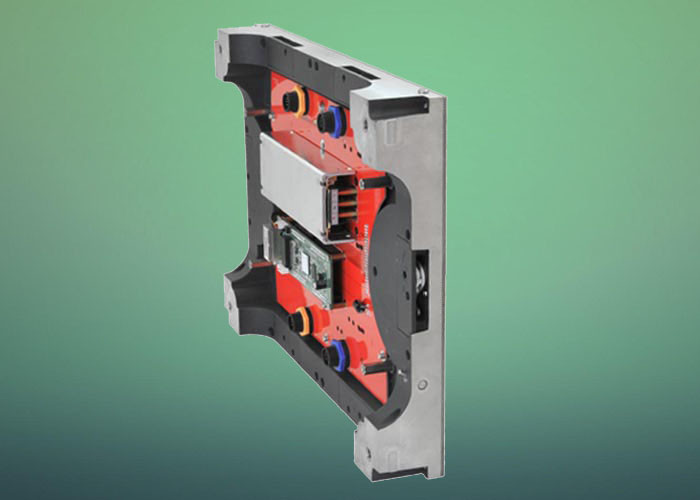

1.Die-casting aluminum panel, to achieve high precision process to seamless and good thermal dissipation; to support the entire screen of any size to “a truly seamless splicing.
2.Point by point highlights, color calibration, making sure whole screen brightness and color consistency with highly reductive
3.Wide viewing angle, high contrast (3000: 1), high brightness (adjustable), high intensity (14bit gradation processing), high refresh (1920HZ refresh rate ;), softer image, display lifelike images to meet the high-speed motion picture display
4.Low brightness with high grayscale:adjustable screen brightness and height to meet different requirements on brightness in different indoor place; Beautiful picture; perfect screen performance.
5.Light LED panel with smaller space and easy for transportation and assembly.
Product Features:
6.Professional video splicing system; supporting a variety of processor synchronization signal fidelity display.
1.9mm HD Small Pitch LED Video Display Parameters:
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
1.923 |
|
Brightness |
nits |
1,200 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle -Horizontal (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Viewing angle - Vertical (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Panel weight |
kg |
5 |
|
Panel width |
mm |
400 |
|
Panel height |
mm |
300 |
|
Panel depth |
mm |
92 |
|
Panel area |
sq. m. |
0.12 |
|
Panel material |
|
Epoxy paint coated Aluminum |
|
Panel Mode |
|
Die-Cast rental |
|
Operating temperature range |
deg. C |
-20 to +60 |
|
Humidity operating |
RH |
10% ~ 60% |
|
Pixel type and configuration |
R/G/B |
3-in-1 SMD |
|
Resolution per panel |
|
208x156 |
|
Dot per panel |
|
32,448 |
|
Dot per sq. meter |
|
270,422 |
|
LED per sq. meter |
|
270,422 |
|
Recommended minimum viewing distance |
m |
1.46 |
|
Recommended best viewing distance |
m |
2-18m |
|
Colors |
|
|
|
Grey scale (linear) |
Levels |
65,536 |
|
Brightness control |
Levels |
256 |
|
Contrast ratio |
|
2,000:1 |
|
Processing depth |
bit |
16 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
1,200 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts / panel. |
120 |
|
Input power (typical) |
Watts / panel. |
48 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
520~525 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Multimedia data format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Data interconnection |
|
UTP Cat 5/Optical Fiber |
|
Mounting system |
|
Hanging/Fixed |
P1.9 Indoor HD LED Display HD Led Video Wall Ultra HD LED TV Screen Case:
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Services:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
