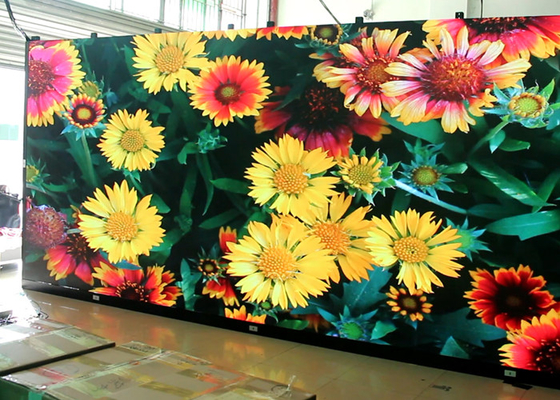

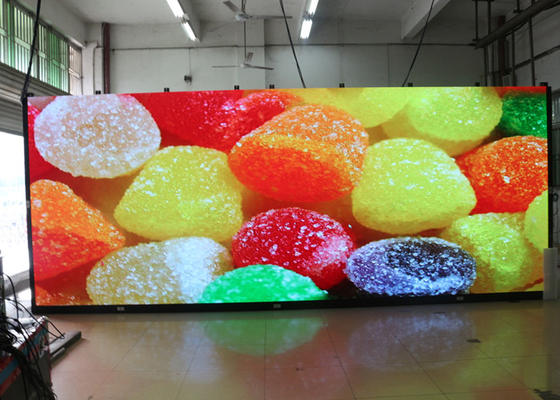

High Definition Small pixel pitch HD Indoor P1.56 P1.66 P1.9 P2 LED Display LED Video Wall
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Configuration | SMD1010 Black Led | Data Refresh Rate | ≥2880HZ |
|---|---|---|---|
| Cabinet Size(W X H X D) | 400x300mm | Screen Brightness | ≥1000cd/m2 |
Product Description
High Definition Small pixel pitch HD Indoor P1.56 P1.6 P1.9 P2 LED Display
*No fans, mute when operation.
*Dustproof, IP43.
*High refresh rate and high gray depth.
*Completely black LED with high contrast.

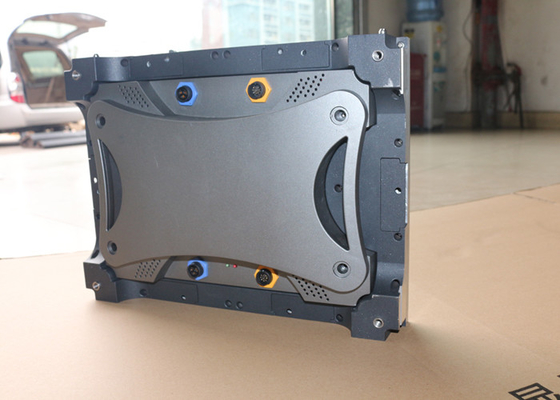

*Standard cabinet size is 400mm x 300mm
Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
Exactly connected and easy to install and dismount.
1.5mm HD Small Pitch LED Video Display Parameters:
| P1.56 Indoor High Definition Advertising LED Display | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | SMD1010 | 100-120mcd | 620-625nm | 140º/60º | |||
| 3 | Green LED | SMD1010 | 320-400mcd | 520-525nm | 140º/60º | |||
| 4 | Blue LED | SMD1010 | 70-90mcd | 470-475nm | 140º/60º | |||
| Module Specifications | ||||||||
| 1 | Pixel Pitch | 1.56mm | ||||||
| 2 | Pixel Configuration | SMD3in1 | ||||||
| 3 | Module Resolution | 128x192 pixels | ||||||
| 4 | Module Pixles | 24,576 pixels | ||||||
| 5 | Module Size | 200x300mm | ||||||
| Cabinet Specifications | ||||||||
| 1 | Cabinet Size(W X H X D) | 400x300mm | ||||||
| 2 | Cabinet Resolution(dot) | 256 x 192 pixels | ||||||
| 3 | Module Quanity (pcs) | 2pcs | ||||||
| 4 | Cabinet Pixels | 49,152 pixels | ||||||
| 5 | Pixel Density | 409600 pixels/m2 | ||||||
| 6 | Cabinet Materials | Die Casting Aluminum | ||||||
| Whole Screen Specifications | ||||||||
| 1 | Screen Brightness | ≥1000cd/m2 | ||||||
| 2 | Driving Method | 1/32 scan | ||||||
| 3 | Mini Viewing Distance | 2m | ||||||
| 4 | Max. Power Consumption | 800W/m2 | ||||||
| 5 | Average Power Consumption | 400W/m2 | ||||||
| 6 | Gray Level | 8bits input, 4096 levels(212) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥2000Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Screen Plainness | <±1mm | ||||||
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH |
||||||
| 19 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 20 | Control System | DVI video card + full color control card + fiber system( optional) | ||||||
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 22 | Interface | Standard Ethernet | ||||||
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
Application:
Widely used in TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, and star hotels etc.
Our Services:
1. Your enquiry will be replied in 24 working hours.
2. Experienced staffs answer all your query in fluent English and Russian.
3. Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided by our well-trained and professional engineers and staffs.
5. Area distributor enjoys special discount and protection of sales area.
6. Your visit will warmly welcome in anytime.
7. 2 Years guarantee. Only charge for cost of repair after 2 years.
8. YUCHIP assists with trainning and technical support for clients in the factory. This service is free of charge.
9. YUCHIP offer oversea technical support by well-trained engineers if clients required. The relevant costs charge by clients.
