16 bit P10 Dual Maintenance Static Stadium LED Display 2R1G1B
Product Details
| High Light | sports perimeter led display,outdoor led video screen |
||
|---|---|---|---|
Product Description
16 bit P10 Dual Maintenance Static Stadium LED Display 2R1G1B
Quick Detail:
1, LED Source: DIP346
2, Module Size: 320mm x 320mm;
3, Soft Module Mask to protect players from being hurt;
4, Cabinet Size: 1280mm x 960mm x 150mm;
5. Soft pillow,adjustable back brackets equipped;
6. High refresh frequency for Live Broadcast;
Description:
1. High refresh rate frequency to insure flickering free image and videos for television camera and live broadcast during a sporting match, and this is highly important for football perimeter LED screen;

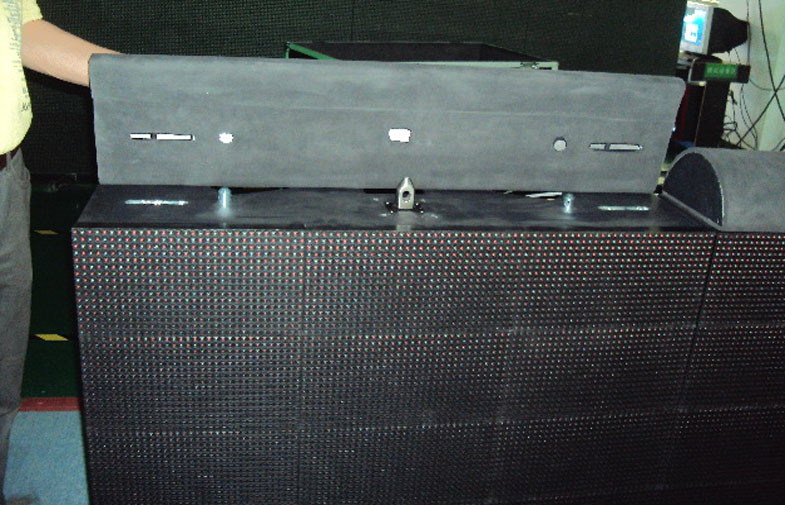

2. Soft module mask and soft pillow on top of each cabinet,adjustable back brackets structure.The soft pillow is movable and can be taken off after stadium LED display use, also brackets can be retracted to LED wall back door.After these steps, the screen can be used as rental LED screen;
3. Hanging up structure for rental LED screen use through hanging bar and gantry;
4. Fast lockers on each cabinet top and bottom,left and right for quick installation and dismantling;

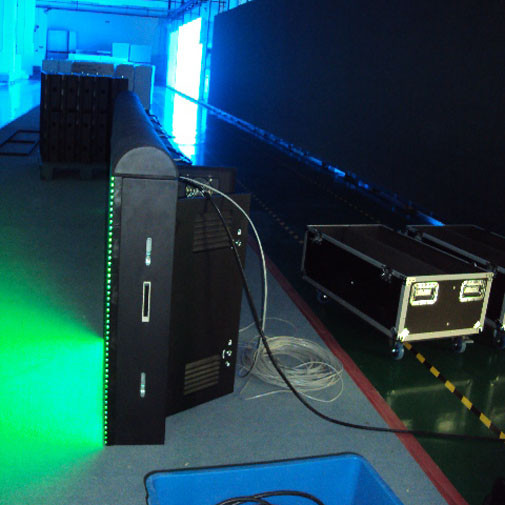

5. Flight case package.This makes it more convenient and secure to move these outdoor LED screens from one site to next.

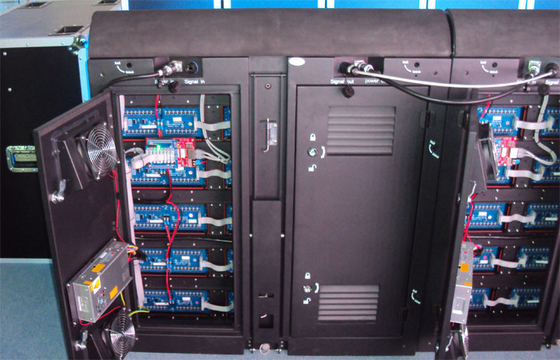

6. Dual control system to insure a secure and smooth operation during sorting match;
Applications:

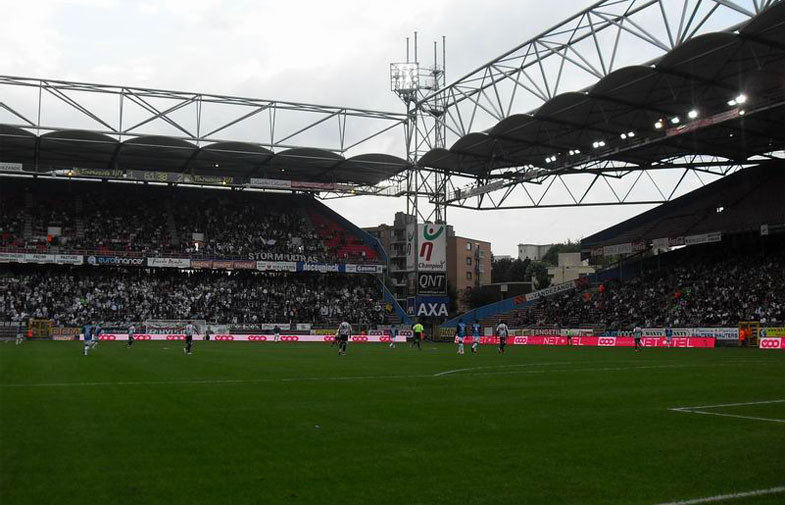

Stadium LED Display;
Football Perimeter LED Screen;
Sporting LED Display;
Sport stadium LED Screen;
Basketball Sports LED Display
Football Stadium LED Screens
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 2R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 20 x 20 |
| Module pixel | 400 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 60 x 60 |
| Cabinet pixels (pixels) | 3600 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 3906 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Soft module mask,soft beam to protect players from being hurt when hit on stadium LED Display;
2. Adjustable back brackets enable sporting LED screen to reach more audience for better brand explosion and larger advertising revenue;
3. MBI5042 IC insure high refresh frequency to deliver clear and vivid image/vide without water wave/shake for Live Broadcast;
4. Utilizing high quality Meanwell power supply and Epistar LED chip;
