P4 SMD Led Screen Ball 1R1G1B For Diameter 1M 2.5M 360° View Angle

  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number YUP-LB4
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 1000 PCS/Month
Product Details
Pixel Pitch 4mm Brightness 1800
Diameter Varied View Angle 360°
High Light

led video ball

,

led display ball
Leave a Message
Product Description

P4 SMD Led Screen Ball IRIGIB For Diameter 1M 2.5M 360° View Angle







Introduction of LED Ball Display



LED ball is a creative LED display with a ball shape. Up to now, we have accepted orders from casino, shopping mall, bar, disco, exhibition and so on. People from different countries seem share same interest in it.

It is a wonderful audio and video player!
It is a sharp weapon of advertising!!
It’s also an ideal decoration!!!

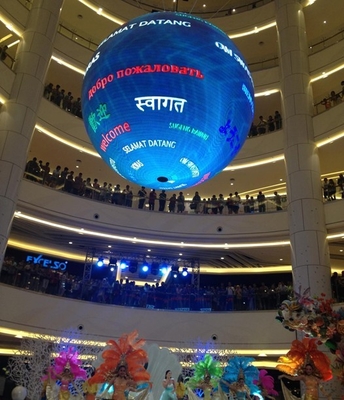

Show Room of LED Ball Display:

P4 SMD Led Screen Ball 1R1G1B For Diameter 1M 2.5M 360° View Angle 0

Parameters of LED Ball Display

Type P4
Pixel Pitch 4mm
LED

SMD

2121
Pixel Density 62500
Pixel Configuration  IRIGIB
Scan Mode 1/10
Brightness(nits) 1800
View Angle 360°
Max. Power Consumption 833W/M²
Nor. Power Consumption 375W/M²
Weight 28kg/㎡
Uniformity Uniform brightness, uniformity 1:1.3
Working temperature -40°C～70°c
Humidity 25%～95%
Linkage current < 3mA
Control way Synchronous with computer(display)
Refresh frequency 1200Hz
Grey grade 4096 grade
Life span 100000 hours
Continuous failure-free working time ≥10000hours
Communication media,control distance Multimode optical fiber＜500m,single mode fiber < 30km,cat 5 cable < 60m
IP Grade IP43
Software LEDVISION
Input way Computer and ancillary,PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI etc.
Display content Video DVD,VCD,TV,Image, Text,Animation and others
Protection Damp proof,dust proof,anti-corrosion,static free,anti-thunder,with over current, short circuit, over voltage and short voltage function























































































































LED Ball Display we produced:



Pixel Pitch Diameter Indoor SMD
4MM 1M √ √
2.5M √ √

5MM 1M √ √
1.2M √ √
5.5M √ √

6MM 1.5M √ √
2M √ √
4M √ √
4.2M √ √
4.5M √ √
6M √ √

7.62MM 1.8M √ √
2M √ √
2.5M √ √

8MM 3M √ √
10MM 1M √ √
2M √ √
2.5M √ √
3M √ √








































Install Led Screen Ball:


1. Hanging Installation



P4 SMD Led Screen Ball 1R1G1B For Diameter 1M 2.5M 360° View Angle 1





2. Stand Installation:



P4 SMD Led Screen Ball 1R1G1B For Diameter 1M 2.5M 360° View Angle 2
