Hanging Indoor full color Led Display Ball P5 Large Led Screen Ball

  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number YUP-LB5
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 1000 PCS/Month
Product Details
High Light

led video ball

,

led display ball
Leave a Message
Product Description

Hanging Indoor full color Led Display Ball P5 Large Led Screen Ball





Introduction of LED Ball Display



LED ball is a creative LED display with a ball shape. Up to now, we have accepted orders from casino, shopping mall, bar, disco, exhibition and so on. People from different countries seem share same interest in it.

It is a wonderful audio and video player!
It is a sharp weapon of advertising!!
It’s also an ideal decoration!!!

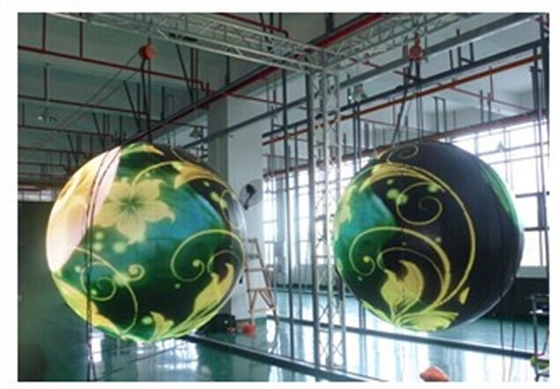

Show Room of LED Ball Display:

Hanging Indoor full color Led Display Ball P5 Large Led Screen Ball 0

Parameters of LED Ball Display



Type P5
Pixel Pitch 5mm
LED

SMD

3528
Pixel Density 40000
Pixel Configuration IRIGIB
Scan Mode 1/16
Brightness(nits) 1500
View Angle 360°
Max. Power Consumption 605W/M²
Nor. Power Consumption 273W/M²
Weight 28kg/㎡
Uniformity Uniform brightness, uniformity 1:1.3
Working temperature -40°C～70°c
Humidity 25%～95%
Linkage current < 3mA
Control way Synchronous with computer(display)
Refresh frequency 1200Hz
Grey grade 4096 grade
Life span 100000 hours
Continuous failure-free working time ≥10000hours
Communication media,control distance Multimode optical fiber＜500m,single mode fiber < 30km,cat 5 cable < 60m
IP Grade IP43
Software LEDVISION
Input way Computer and ancillary,PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI etc.
Display content Video DVD,VCD,TV,Image, Text,Animation and others
Protection Damp proof,dust proof,anti-corrosion,static free,anti-thunder,with over current, short circuit, over voltage and short voltage function
























































































































LED Ball Display we produced:



Pixel Pitch Diameter Indoor SMD
4MM 1M √ √
2.5M √ √

5MM 1M √ √
1.2M √ √
5.5M √ √

6MM 1.5M √ √
2M √ √
4M √ √
4.2M √ √
4.5M √ √
6M √ √

7.62MM 1.8M √ √
2M √ √
2.5M √ √

8MM 3M √ √
10MM 1M √ √
2M √ √
2.5M √ √
3M √ √







































Install Led Screen Ball:


1.Hanging Installation



Hanging Indoor full color Led Display Ball P5 Large Led Screen Ball 1





2.Stand Installation:



Hanging Indoor full color Led Display Ball P5 Large Led Screen Ball 2
