P7.62 Led Video Full Color Led Screen Ball Round High Brightness

  • P7.62 Led Video Full Color Led Screen Ball Round High Brightness
Certification CE,ROHS,FCC,EMC
Model Number LB7.62
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 1000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

led video ball

,

led ball screen
Leave a Message
Product Description

P7.62 Led Video Full Color Led Screen Ball Round High Brightness





Introduction of LED Ball Display



LED ball is a creative LED display with a ball shape. Up to now, we have accepted orders from casino, shopping mall, bar, disco, exhibition and so on. People from different countries seem share same interest in it.

It is a wonderful audio and video player!
It is a sharp weapon of advertising!!
It’s also an ideal decoration!!!

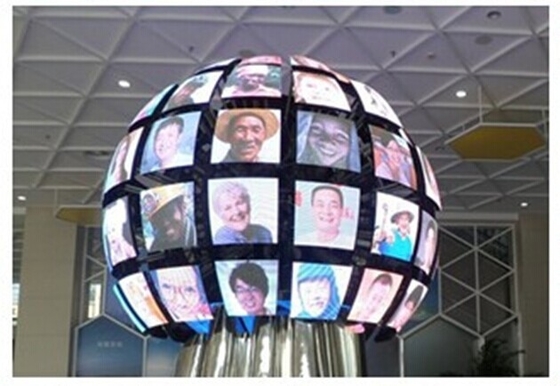

Show Room of LED Ball Display:

P7.62 Led Video Full Color Led Screen Ball Round High Brightness 0

Parameters of LED Ball Display



Type P7.62
Pixel Pitch 7.62mm
LED

SMD

3528
Pixel Density 17222
Pixel Configuration IRIGIB
Scan Mode 1/8
Brightness(nits) 1500
View Angle 360°
Max. Power Consumption 510W/M²
Nor. Power Consumption 230W/M²
Weight 28kg/㎡
Uniformity Uniform brightness, uniformity 1:1.3
Working temperature -40°C～70°c
Humidity 25%～95%
Linkage current < 3mA
Control way Synchronous with computer(display)
Refresh frequency 1200Hz
Grey grade 4096 grade
Life span 100000 hours
Continuous failure-free working time ≥10000hours
Communication media,control distance Multimode optical fiber＜500m,single mode fiber < 30km,cat 5 cable < 60m
IP Grade IP43
Software LEDVISION
Input way Computer and ancillary,PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI etc.
Display content Video DVD,VCD,TV,Image, Text,Animation and others
Protection Damp proof,dust proof,anti-corrosion,static free,anti-thunder,with over current, short circuit, over voltage and short voltage function
























































































































LED Ball Display we produced:



Pixel Pitch Diameter Indoor SMD
4MM 1M √ √
2.5M √ √

5MM 1M √ √
1.2M √ √
5.5M √ √

6MM 1.5M √ √
2M √ √
4M √ √
4.2M √ √
4.5M √ √
6M √ √

7.62MM 1.8M √ √
2M √ √
2.5M √ √

8MM 3M √ √
10MM 1M √ √
2M √ √
2.5M √ √
3M √ √








































Install Led Screen Ball:


1.Hanging Installation



P7.62 Led Video Full Color Led Screen Ball Round High Brightness 1





2.Stand Installation:



P7.62 Led Video Full Color Led Screen Ball Round High Brightness 2
