Outdoor Waterproof Full Color Mega Screen , P13.3 Advertising LED Screen Displays
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | full color led signs outdoor,outdoor full color led display |
||
|---|---|---|---|
Product Description
Outdoor Waterproof Full Color Mega Screen , P13.3 Advertising LED Screen Displays
Quick Detail:
1. High brightness at 8000cd/㎡;
2. IP65 waterproof for outdoor use;
3. UV resistant;
4. CE, Rohs,CCC, FCC certificate;
5. Woring voltage110V / 220V ;
6. Working temperature: -30 degree -- +60 degree
Description:
1. P13.3 mega screen is working with best Meanwell power supply at 5V 40A;
2. P13.3 advertising LED screen is utilizing Epistar LED chips and brightness reach up to 8000cd/㎡, insure a clear and vivid image even under direct sunshine;
3. Outdoor LED screens are using big size module 320mm x 320mm, this enable LED cabinet surface more uniform;

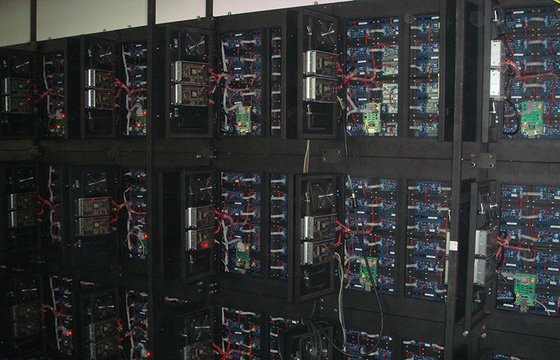

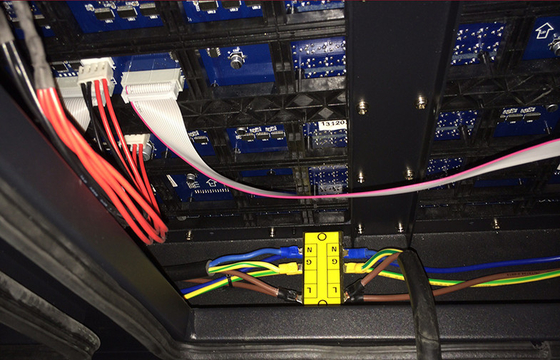

4. Outdoor fixed installation LED billboards project are working with internal connection of signal and power cables;
5. Outdoor Advertising P13.3 DIP346 LED Display is at 4000:1 High contrast ratio guaranteeing a vivid and beautiful image and video presentation;
6. Shopping Mall Advertising LED display screens P13.3, LED Screen Panels Advertising is of high resolution for outdoor LED billboards use;
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 13.3 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 24 |
| Module pixel | 576 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 72 x 72 |
| Cabinet pixels (pixels) | 5184 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 5627 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥12m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. All outdoor series LED screens are using high quality silicon / glue for better waterproof level;
2. P13.3 outdoor advertising full color LED display is equipped with Linsn multi Function card installed for automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
3. Outdoor LED video boatds P13.3 stable working and advantaged working effect impressed users a lot that choose this solution its balanced display resolution and cost;
4. Full color outdoor screen LED high resolution for large size outdoor LED screens project,resolution is 5627pixels/㎡;
5. High quality image and video presentation for large size LED billboards advertising use;
6. YUCHIP LED screens are produced with pure Epistar LED chips for stable high quality and longer life time;
