P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls

  • P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls
  • P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls
  • P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls
  • P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls
Certification CE,ROHS,FCC,EMC
Model Number IF-5S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

full color led signs outdoor

,

outdoor full color led display
Leave a Message
Product Description

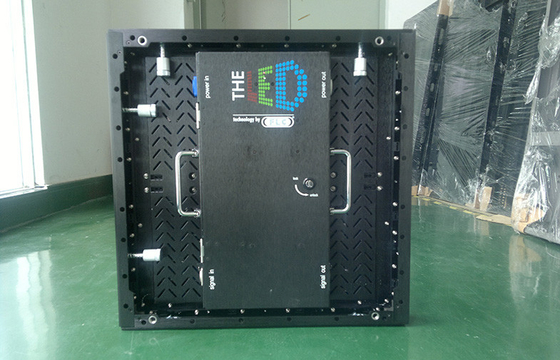

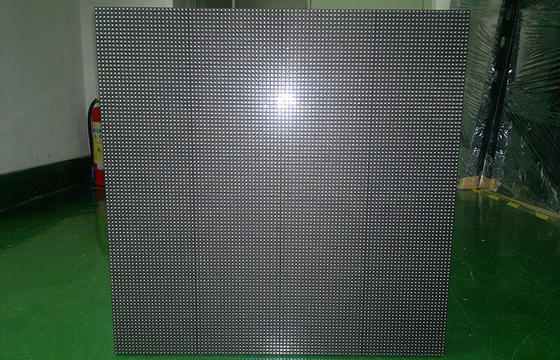

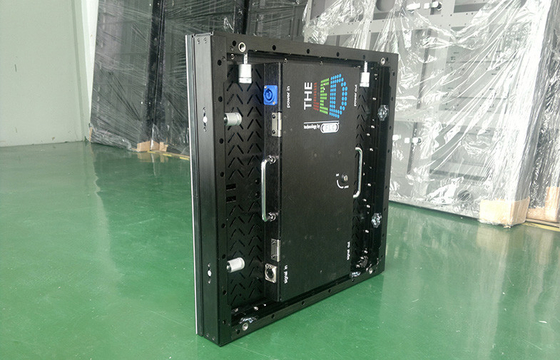

Museum Entertainment events LED Video Walls , P5 Full Color LED Display Boards





Quick Detail:





1. LED Cabinet Material: Extrusion Aluminum.

2. LED Module Size: 240mm x 240mm;

3. LED Cabinet Size: 480mm x 480mm x 65cm;

4, LED Source: Epistar SMD2121

5, Power Supply: Ulra slim YHY and G energy;

6, Cabinet Weight: 8kg/cabinet







Description:





1. P5 LED video walls non-gaps coonection. P5 rental LED screens module 240mm x 240mm seamless mounted on LED cabinet;

2, Ultra slim P5 indoor rental LED screens is utilizing extrusion aluminum cabinet;

3, PH5 indoor LED screens wall stable structure makes it un-damaged under frequent shipment from one site to next;

4, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;

5, P5 indoor LED display screens rental is of light weight for hanging up installation;

6, Working with LED video processor, P5 full color LED display can set the display in few sections playing same or different photos;

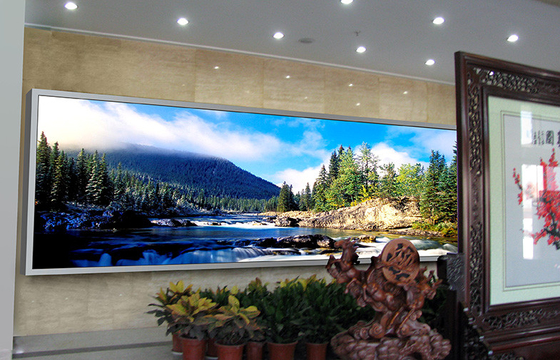

Applications:





Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 5
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 48 x 48
Module pixel 2304
Module size (mm) 240 x 240
LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 85
Cabinet resolution (pixels) 96 x 96
Cabinet pixels (pixels) 9216
Cabinet material Die Casting Aluminum
Cabinet weight (kg) 10kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 40000
Brightness(cd/m2) ≥1500 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥4m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/10 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP43
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:





1, Full black color LED chips;

2, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;

3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

4, Large viewing angle at 140 degree horizontal and vertical;

5, PH5 indoor rental LED displays is being widely choose becase of its cost effective and high resolution;

6, High resolution for indoor rental events that require high quality presentation;

P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls 0P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls 1P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls 2P5 Full Color LED Display Boards , Museum Entertainment events LED Video Walls 3
