High Brightness Full Color P3 SMD2121 Indoor LED Display Screens

  • High Brightness Full Color P3 SMD2121 Indoor LED Display Screens
  • High Brightness Full Color P3 SMD2121 Indoor LED Display Screens
  • High Brightness Full Color P3 SMD2121 Indoor LED Display Screens
  • High Brightness Full Color P3 SMD2121 Indoor LED Display Screens
Certification CE,ROHS,FCC,EMC
Model Number IF-3S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

outdoor full color led display

,

stage background led screen
Leave a Message
Product Description

High Brightness  Full Color P3 SMD2121 Indoor LED Display Screens





Quick Detail:





1, 111111 pixels per square meter;

2, High refresh frequency at 2400HZ;

3, Full black LEDs;

4. LED Source: SMD2121

5, Module Size: 240mm x 240mm;

6, Cabinet Size: 480mm x 480mm x 65mm;







Description:



1. Ultra light weight design.One LED cabinet weight is about6.5kg,very easy for one people to assembly and dismantle;

2. High definition,111111pixels/㎡ enables P3 an real HD indoor LED screen;

3. High and stable quality.P3 indoor LED panel realize good heat dissipation to insure stable high quality;

4. Ultra slim cabinet design. LED cabinet is only 65mm;

5. P3 HD indoor LED screen is widely used for conference room,shopping mall indoor advertising,luxury stores etc;

6. P3 indoor LED display will be choosed more and more, as LED screens market trend is high resolution.

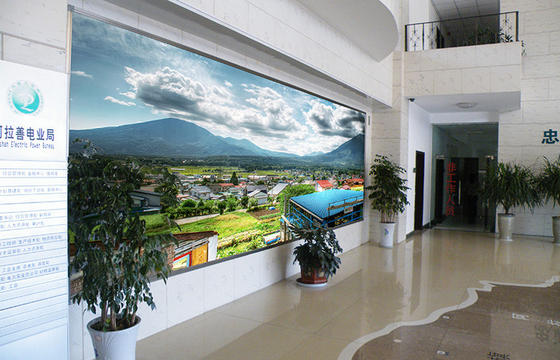

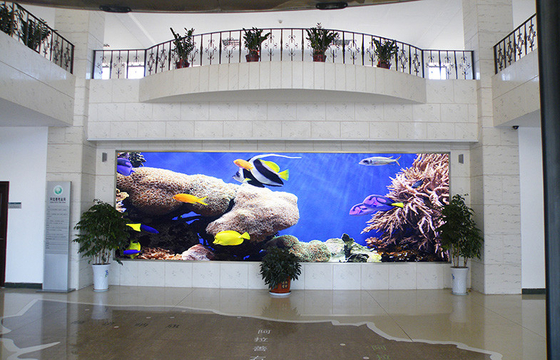

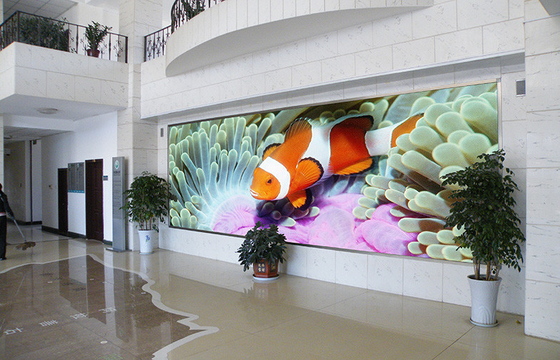

Applications:



Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display









Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 3
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 80 x 80
Module pixel 6400
Module size (mm) 240 x 240

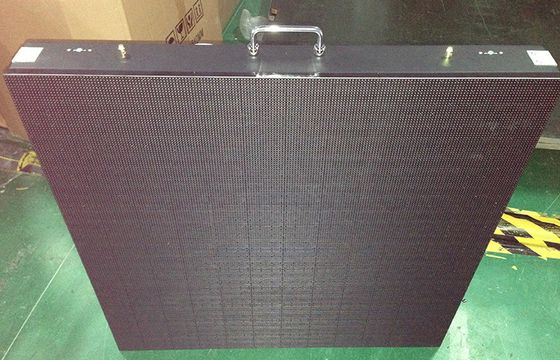

LED CABINET SPECIFICATION
Cabinet size (mm) 480 x 480 x 65
Cabinet resolution (pixels) 160 x 160
Cabinet pixels (pixels) 25600
Cabinet material Aluminum/Steel
Cabinet weight (kg) 6.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 111111
Brightness(cd/m2) ≥2000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥2.5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP44
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 940W/㎡ ; Ave:400W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)











Competitive advantages:



1. High grey scale for real and natrual color display;

2. Extrusion aluminum makes indoor advertising LED display more stable structure;

3. True black LED makes advertising indoor LED display high contrast ratio at 4000:1;

4. High quality Sum 2032 IC guarantee a low brightness comfortable indoor LED screen effect;

5. Ultra thin power supply,noise less and good heat dissipation;

6. Fast lockers equipped for easy and quick LED screen assembly.
