Large Full Color Led Display Advertising , PH20 1RGB Video LED Screens

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number OF-20D
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

full color led signs outdoor

,

outdoor full color led display
Leave a Message
Product Description

Large Full Color Led Display Advertising , PH20 1RGB Video LED Screens​







Quick Detail:





1, Module: 320mm x 320mm;

2, 2500pixels/㎡;

3, LED Chips: Epistar

4. LED Source: DIP 346;

5. IP65, waterproof;

6, 3 years warranty;





Description:





1, PH20 1RGB Full Color LED Video Displays is utilizing internal signal and power connection for stable connection;

2. P20 outdoor LED wall is cost effective,expecially suitable for large size LED sign billboards;
3. Enough brightness to deliver a clear image and video even under direct sunshine;
4. Outdoor LED displays automatic brightness adjustment to present high brightness image under direct sunshine; In night time outdoor LED screen brightness lower down for confortable watching;
5. Remote control help to realize one computer control numbers LED screen timely;
6. PH20 1RGB Full Color LED Video screens is utizling Epistar LED chips for high quality image and video presentation for large size LED billboards advertising use;







Applications:

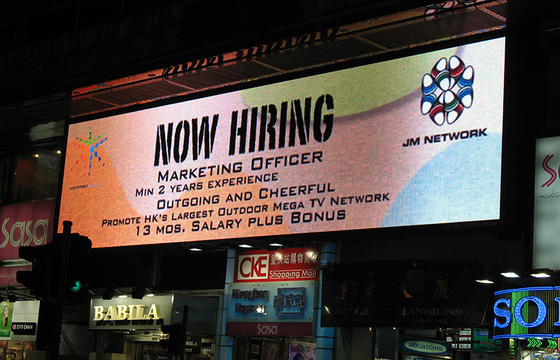

On roof of building Full Color LED Display

Mounted on buildingFull Color LED Display

Put on steel pole Full Color LED Display

Cross bridge information Full Color LED Display

Shopping Mall Full Color LED Display
Commercial Advertising Full Color LED Display
Church Full Color LED Display
Road Show Full Color LED Display
High Speed Way Full Color LED Display







Specifications :

LED Module Parameter
Pixel pitch (mm) 20
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 16 x 16
Module pixel 256
Module size (mm) 320 x 320

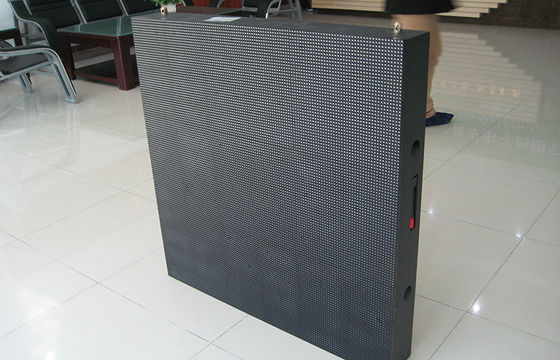

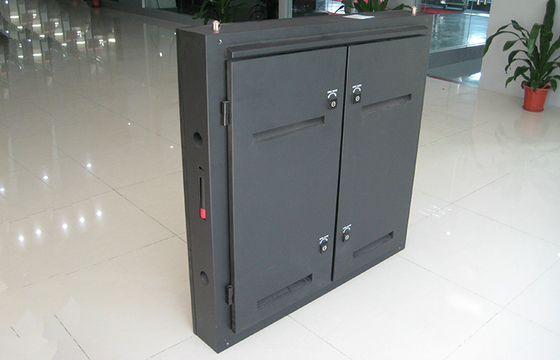

LED CABINET SPECIFICATION
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 48 x 48
Cabinet pixels (pixels) 2304
Cabinet material Steel
Cabinet weight (kg) 50
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 2500
Brightness(cd/m2) ≥8000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥18m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km
Display work method 1/4 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment) 100000 hours( ideal environment)

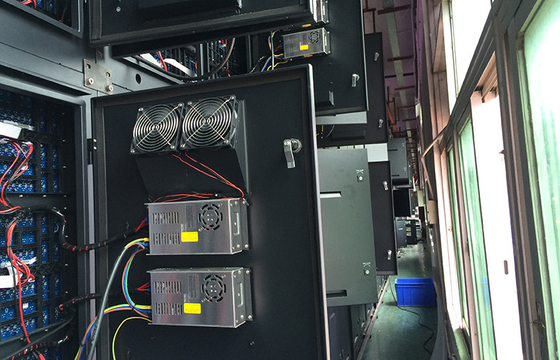

Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Power consumption Max: 850W/㎡ ; Ave:350W/㎡
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)











Competitive advantages:





1, P20 large LED Display Advertising present clear vivid image and video even under direct sunshine;

2. Full color LED display P20 is eye catching active advertising effect deliver to more audience and gain more revenues;

3. P20 Outdoor LED Sign billboards is being widely choose for large size outdoor LED signs projects;

4. Outdoor LED video screens standard LED cabinet of IP65,waterproof and dustproof;

4. High brightness up to 8000cd/㎡,and special requirement LED screen projects can reach 10,000nits;

6, The LED full color display present clear vivid image and video even under direct sunshine;



Large Full Color Led Display Advertising , PH20 1RGB Video LED Screens 0

Large Full Color Led Display Advertising , PH20 1RGB Video LED Screens 1Large Full Color Led Display Advertising , PH20 1RGB Video LED Screens 2
