Sporting Digital Full Color Led Screen / Scoreboard LED Display High brightness
Product Details
| High Light | outdoor led video screen,led digital display |
||
|---|---|---|---|
Product Description
Sporting Digital Full Color Led Screen / Scoreboard LED Display High brightness
Quick Detail:
1, LED Source: DIP346
2, Module Size: 320mm x 320mm;
3, Cabinet Size: 960mm x 960mm;
4, High refresh frequency;
5, High brightness up to 8000cd/㎡;
6, Specially scoreboard software.
Description:
1. LED scoreboard display high refresh frequency to insure flickering free images and videos effect during live broadcast;
2. LED display scoreboard utilizing DIP technology to deliver high brightness effect even under direct sunlight;
3. Outdoor LED display scoreboards is using waterproof cabinet design of IP65 to realize waterproof,moisture proof etc;
4. Software specially designed for different sporting matches like basketball,soccer and baseball etc;
5, Digital LED scoreboard is presenting clear and vivid advertising image and video;
6, Electronic LED boards is of high contrast ratio at 4000:1 to present true and natural color LED screens;
Applications:

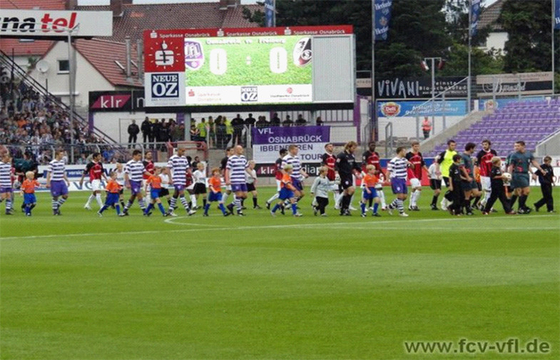

Stadium LED Display
Perimeter LED Screen
Football Stadium LED Screen
Football Perimeter LED Display
Basketball Stadium LED Displays
Soccer LED Display
Baseball Stadium LED Display Screens
Sporting Stadium LED Video Display
Sports Perimeter LED Screen
Sports Club LED Display
LED Score Boards
LED Score Display
LED Digital Scoreboard
Perimeter LED Screen
Football Stadium LED Screen
Football Perimeter LED Display
Basketball Stadium LED Displays
Soccer LED Display
Baseball Stadium LED Display Screens
Sporting Stadium LED Video Display
Sports Perimeter LED Screen
Sports Club LED Display
LED Score Boards
LED Score Display
LED Digital Scoreboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2400 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P10 LED scoreboard is of high resolution at 10000pixels/㎡;
2, Short best view distance,for P10 1RGB outdoor LED scoreboard displays,the best view distance is above 8 meters;Audience/potential consumers people passed by would enjoy a clear image that standing above 8 meters;
3, Outdoor P10 LED screens is utilizing high brightness Epistar LED chips to reach up to 8000cd/㎡. The P10 LED video displays present a clear and vivid image, even under direct sunshine;
4, P10 LED display scoreboards seamless connection: 320mm x 320mm large size LED module makes LED display seamless connection in one cabinet;
5, Brightness automatic adjustment. By multi function card installed, the LED score boards can sensor local brightness, humidty and temperature etc information; Daytime will show high bightness for clear and vivid image / video, night time LED screens will show lower brightness for comfortable watching;
6, High grey grade, insuring LED scoreboards to present true color effect.
