P16 Sport Stadium LED Display Screen , Football Sports LED Screens
Product Details
| High Light | sports perimeter led display,led digital display |
||
|---|---|---|---|
Product Description
P16 Sport Stadium LED Display Screen , Football Sports LED Screens
Quick Detail:
1. Soft module mask;
2. Soft pillow on top of each cabinet;

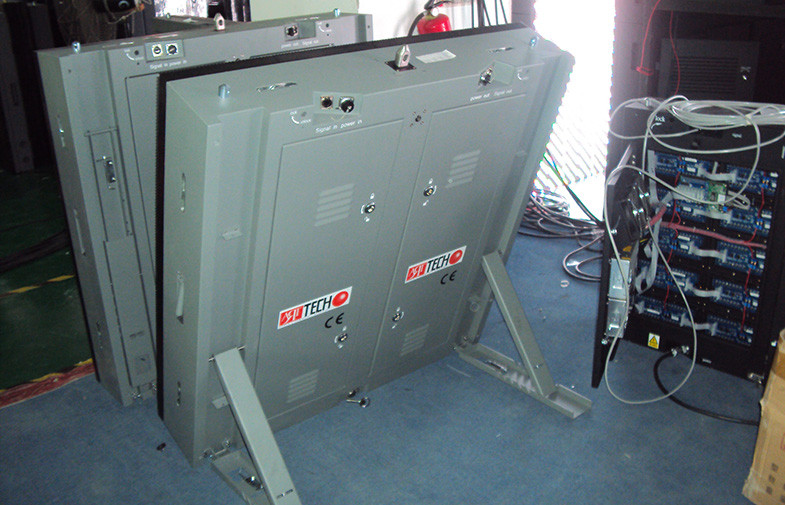

3. Adjustable back brackets on each cabinet;
4. Strong structure, anti-shock;
5. P16 2RGB;
6. 3906 pixels/㎡;
Description:
1. Hanging up structure for rental LED screen use through hanging bar and gantry;

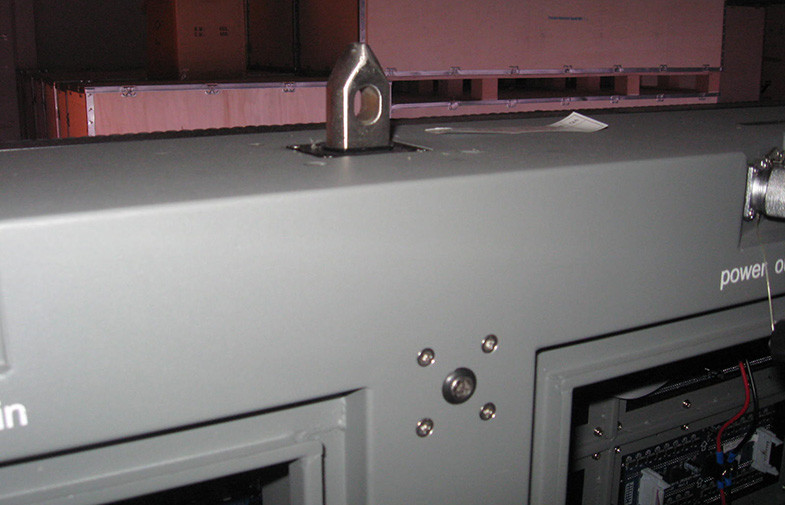

2. Fast lockers on each cabinet top and bottom,left and right for quick installation and dismantling;
3. Flight case package.This makes it more convenient and secure to move these outdoor LED screens from one site to next.
4, P16 stadium LED display is of high contrast ratio at 4000:1, thus LED panels are displaying an active and true color LED display advertising effect;
5. High refresh rate frequency to insure flickering free image and videos for television camera and live broadcast during a sporting match, and this is highly important for football perimeter LED screen;
6. Soft module mask and soft pillow on top of each cabinet,adjustable back brackets structure.The soft pillow is movable and can be taken off after stadium LED display use, also brackets can be retracted to LED wall back door.After these steps, the screen can be used as rental LED screen;
Applications:
Stadium LED Display
Perimeter LED Screen
Football Stadium LED Screen
Football Perimeter LED Display
Basketball Stadium LED Displays
Soccer LED Display
Baseball Stadium LED Display Screens
Sporting Stadium LED Video Display
Sports Perimeter LED Screen
Sports Club LED Display
LED Score Boards
LED Score Display
LED Digital Scoreboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 16 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 20 x 20 |
| Module pixel | 400 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 60 x 60 |
| Cabinet pixels (pixels) | 3600 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 3906 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥14m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2400 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P16 2RGB outdoor sports LED screens is of stable waterproof function at IP65. Silicon injection is well done in surface of LED modules, tyer plastic sheet is equipped on each module to mount LED module onto LED cabinets;
2, Sports stadium LED display is designed with special structure for perimeter LED screen use;
3, Perimeter LED screen P16 is using soft module veil to project players from being hurt;
4, P16 LED stadium LED display is working through video processor, the P16 perimeter LED screens display support signal input like DVI,VGA,HDMI,SID,Camera and VCR etc.

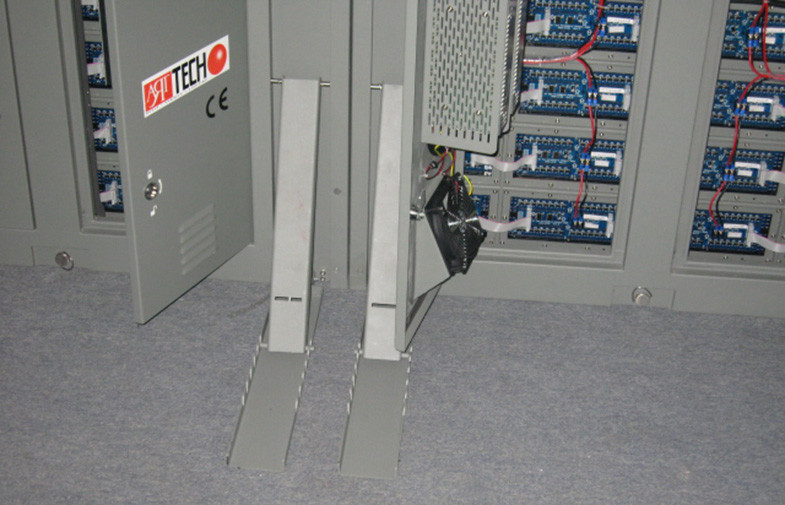

5, Sporting club LED dispalys back brackets on each football sports LED screen around the ground. This structure makes it possible to adjust screens lean angel to realize wider viewing angle and reach more audience that brings more sports enjoyment and advertising revenue;
6, The sports perimeter LED displays soft pillow is movable and can be taken off after stadium LED display use, also brackets can be retracted to LED wall back door.After these steps, the screen can be used as rental LED screen;
