P10 LED Sign Advertising Outdoor Front Maintenance LED Digital Signs
Product Details
| High Light | led video wall,digital signage display |
||
|---|---|---|---|
Product Description
P10 LED Sign Advertising Outdoor Front Maintenance LED Digital Signs
Quick Detail:
1, IP65 waterproof for outdoor LED screen use;
2, High resolution at 10000 pixels/㎡;
3, LED chips: Epistar DIP346;

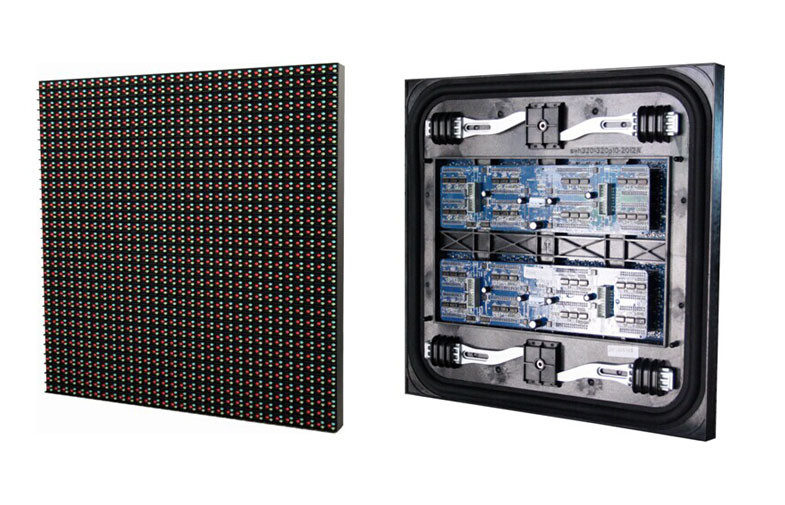

4, Module Size: 320mm x 320mm;
5, Control system: Linsn, Novastar etc.
6, Both front and rear maintenance available;
Description:

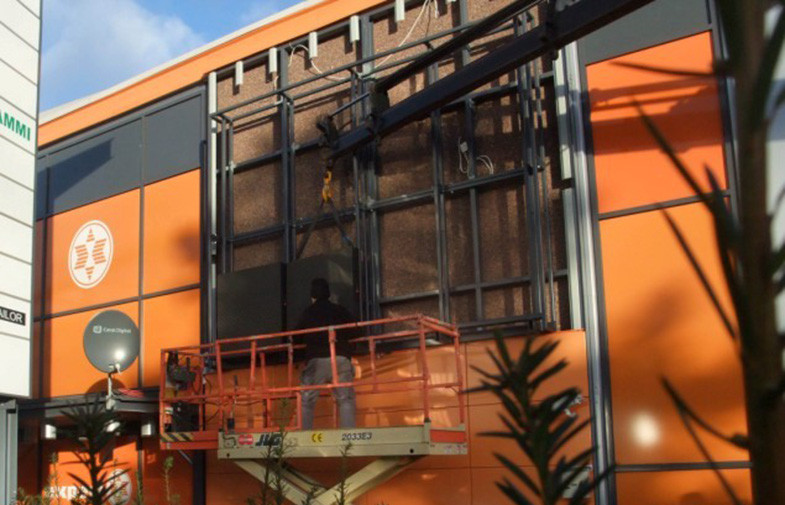

1, Front maintenance LED display P10 is widely installed as large LED display projects that limited back space;
2, P10 LED screen outdoor is of high resolution for outdoor digital LED billboard projects;
3, P10 1RGB front accessible LED screen is of good waterproof effect for outdoor LED screens use;
4, Outdoor LED billboard P10 is of high brightness up to 8000 cd/㎡, enabling P10 LED display screen a clear and vivid image and video presentation even under direct sunshine;
5, Dual maintenance LED screen only take a few seconds to disassemble and assembly LED moduels.
6, Front open LED sign is of simple and easy maintenance, there is no screw between LED panel and LED module,which is be easier to disassemble and install;

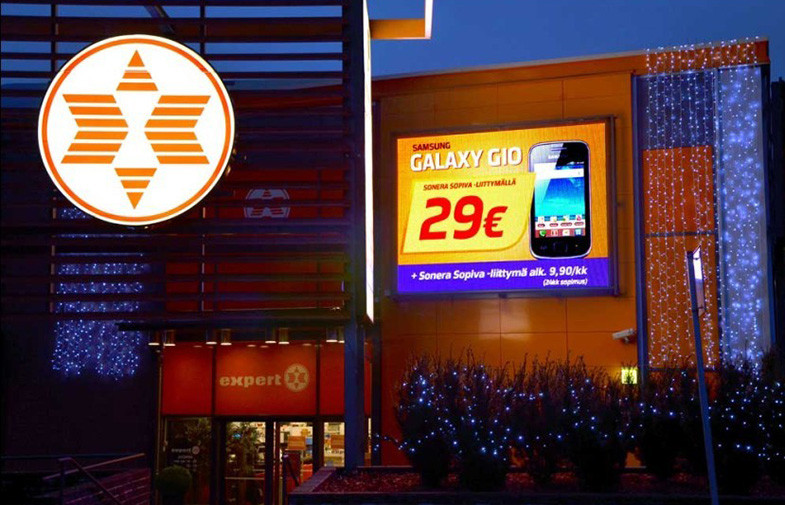

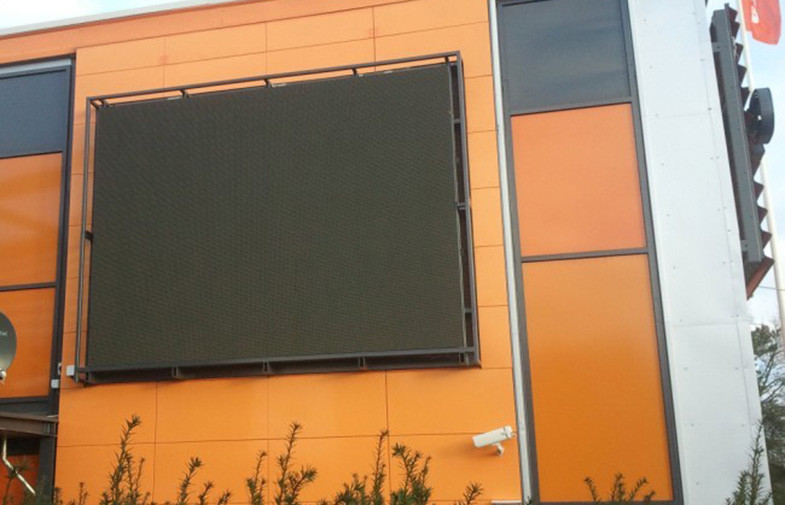

Applications:
Front Accessible LED Signs
Front Maintenance Digital LED Sign
LED Digital Sign Front Maintenance
Electronic LED Sign Front Accessible
Front Maintenance LED Sign
Front Open LED Display
Dual Maintenance LED Screen
Front and Back Maintenance LED Display Screen
Front and Rear Maintenance LED Panel
Easy Maintenance LED Signage
Front Maintenance LED Billboard
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 96 x 96 |
| Cabinet pixels (pixels) | 9216 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 10000 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1, P10 LED display is utilizing 320mm x 320mm large LED module, less quantity LED modules in one LED cabinets makes it seamless assembly and more unform surface;
2, P10 dual maintenance LED screen is utilizing best quality raw materials like Epistar LED chips, MBI5020 and MBI5024 LED driver IC, meanwell power supply etc. to insure stable high quality.
3. All dual maintenance LED signs from us has no screw between LED modules and LED panel for fast and easy maintenance;
4. Front open LED display save much installation back side space:For installation site that backside space limited,it's a perfect option of this dual maintenance LED display boards which allows front maintenance and not need backside space;
5. DIP346 P10 front accessible digital LED sign is available for both front and back maintenance;
6. P10 dual maintenance LED display is of high resolution at 10000 pixels/㎡ to show clear and vivid LED billboard advertising;
