P8 Outdoor Led Display Dual Maintenance LED Display 320 x 320
Product Details
| High Light | electronic led display,digital signage display |
||
|---|---|---|---|
Product Description
P8 Outdoor Led Display,P8 Outdoor Led Billboard,P8 Led Display Signs
OUR COMPANY leads the way in LED display manufacturing & technology. Its outdoor & indoor commercial advertising LED display, rental use LED display, fixed installation LED display, sports stadium perimeter LED display, mobile trailer LED display, water floating LED display, transparent LED curtain display, digital LED billboard, LED mesh display screen for skyscraper's decoration, arc LED display, LED components & complete LED full color video systems undergo stringent quality control at ISO 9001-certified manufacturing plants.
OUR COMPANY offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality. Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
Description:
1, P8 front maintenance LED sign is an suitable option for LED billboard projects that limiting back side space;
2, P8 front maintenance LED screen is of high resolution for outdoor fixed LED billboard projects;
3, P8 LED sign front accessible is of high resolution at 15625 pixels/㎡;
4, Simple and easy maintenance, there is no screws between LED module and LED panel ,which can be easier to disassemble and install,it only take a few seconds to disassemble;
5, DIP246 P8 dual maintenance LED display is of good waterproof effect for outdoor environment use;
6, P8 LED screen outdoor is of high brightness up to 7000 cd/㎡, enabling LED screen a clear and vivid image and video presentation even under direct sunshine;
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 8 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP246 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40 x 40 |
| Module pixel | 1600 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 120 x 120 |
| Cabinet pixels (pixels) | 14400 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 55 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 15625 |
| Brightness(cd/m2) | ≥7000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥6m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video procrssor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Front & Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. P8 outdoor LED screen is available for both front and back maintenance;
2. P8 front maintenance LED screens is of high resolution to show clear and vivid LED billboard advertising, installed for large size LED billboard.
3, P8 front open LED display is utilizing best quality raw materials like Epistar LED chips, MBI5020 and MBI5024 LED driver IC, meanwell power supply etc. to insure stable high quality.
4. For P8 LED display screen,there is no screw between LED modules and LED panel for fast and easy maintenance;
5. P8 DIP LED screen outdoor is uitable for LED display projects that limit installation site back side space;
6. Space saving:For installation site that backside space limited,it's a perfect option of this dual maintenance which allows front maintenance and not need backside space;
P8 Outdoor Led Display Module:
P8 Outdoor Led Display Cabinet:

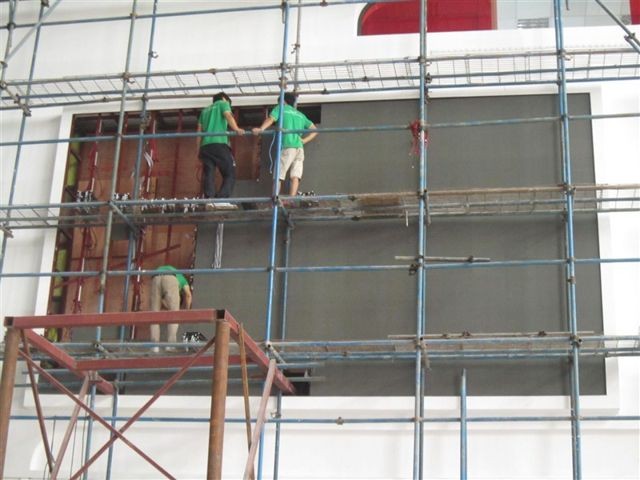

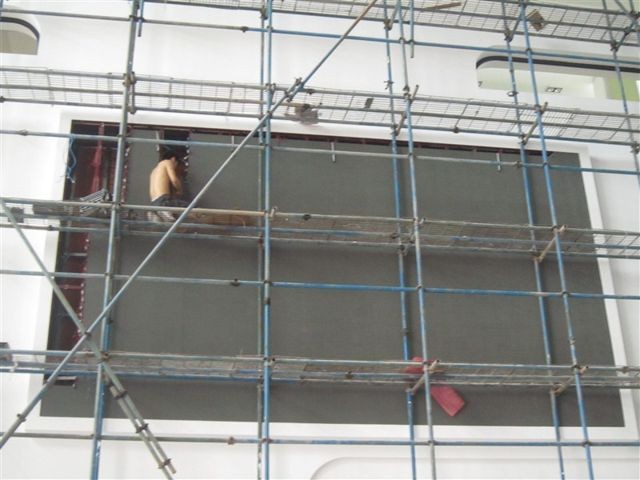

P8 Outdoor Led Display Screen Part Of Case:
