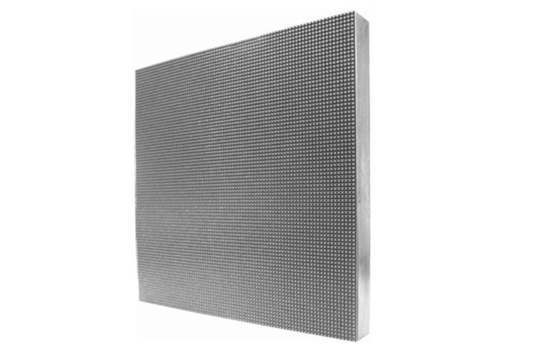

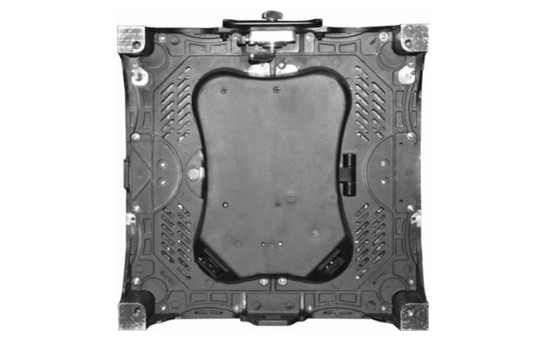

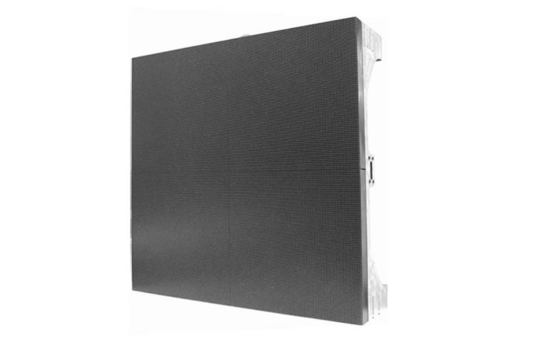

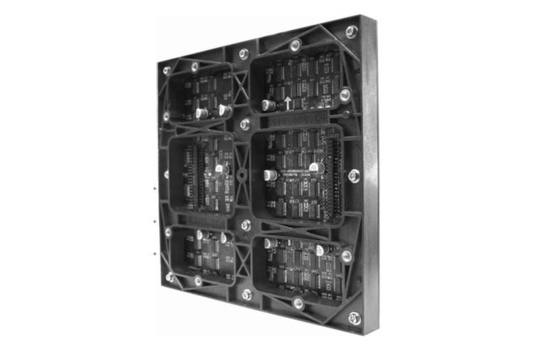

P1.9 Indoor Full Color HD Led Screen with Die Cast Aluminum Cabinet

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-1.9S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video wall rental

,

led display screens
Leave a Message
Product Description

P1.9 Indoor Full Color HD Led Screen with Die Cast Aluminum Cabinet



Quick Detail:





1. LED Source: SMD1010

2. Module: 160mm x 160mm;

3. Cabinet: 320*320*85mm;

4. High definition;

5. long life span and high reliability;



SUM high refresh frequency IC;





Description:





With the smaller pixel pitch of 1.9mm, three vertically arranged of R G B lamp which constitute a single pixel makes best color performance and the density can reach 275625pixels/㎡;

1.With the resolution of 84*84, module size of 160mm*160mm, the structure of combined driver board ensures the high reliability;

2.With larger view angel, soft image, high definition which is suitable for indoor application;

3.With the features of high brightness,low attenuation,high reliability and good consistency;

4.With the effect of non-granular, better color uniformity, non-mosaic phenomenon;

5.With the design of multi-layer circuit board makes the uniform distribution of current distribution, quick heat dispelling, long life span and high reliability;

6.With the black face LED, the contrast ratio is very perfect.





Applications:



Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm)
Pixel configuration 3 in 1
Encapsulation SMD1010
Colors matches 6:3:1
Module resolution (pixels) 84*84
Module pixel 7056
Module size (mm) 160 x 160
LED CABINET SPECIFICATION
Cabinet size (mm) 320*320*85mm
Cabinet resolution (pixels) 168*168
Cabinet pixels (pixels) 28224
Cabinet material Aluminum
Cabinet weight (kg) 4.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 275625
Brightness(cd/m2) ≥800 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥2m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/21 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1920
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

3. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;

4. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

5. Reasonable price: Profit back to customer for long term mutual development cooperation;
