3 in 1 Commercial P3.0 HD Curved Led Screen Display for Stadium rental

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IR-3.0S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video wall rental

,

led display screens
Leave a Message
Product Description

3 in 1 Commercial P3.0 HD Led Screen Display for Stadium rental







Quick Detail:





1. LED Source: SMD2121;

2. Module: 240mm x 240mm;

3. Cabinet: 320*320*85mm;

4. thickness only 80mm;

5. Modular design, easy assembly and maintenance;

6. SUM high refresh frequency IC;





Description:

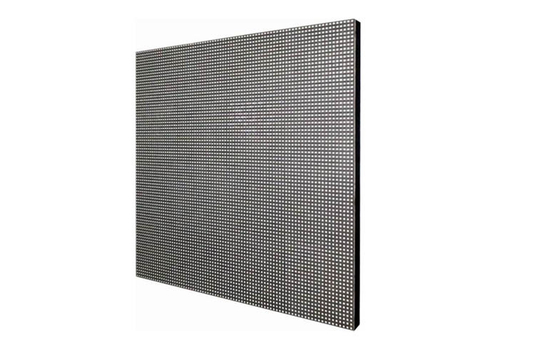

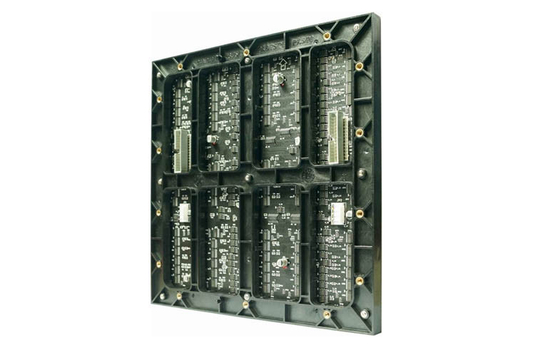

Module features:
1, Easy:Modular design, easy assembly and maintenance.
2, module size:240*240mm ,Smooth surface, module gap small ,High precision

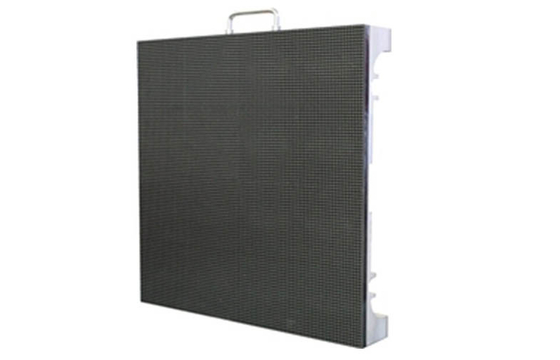

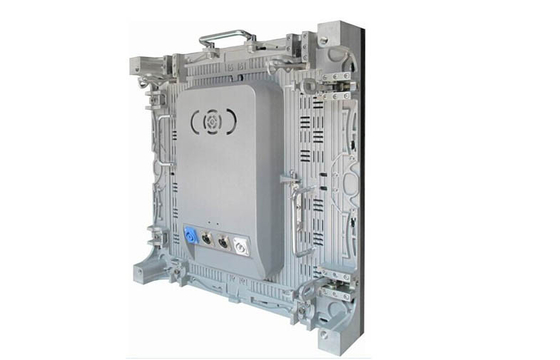

Cabinet features:

1. Light:Cabinet size: 480mmX480mmX80mm, Weight: 8.5kg/pc.
2. Thin:Die-cast aluminum design, high precision, thickness only 80mm.
3. Fast:Fast locks, Easy to assemble and disassemble.
4. Compatibility:Available pixel pitch for P2.5,P3, P3.75, P4, P4.8, P5, P6.
5. Low:Excellent cooling design, no fans or air-conditioners needed
noiseless, low power consumption, cost-effective.





Applications:



Indoor Meeting

Concert rental LED display

Entertainment events LED screen

Stadium rental LED wall

Fash show stage LED display

Car exhibition LED display

Rental commercial LED display











Specifications :



LED MODULE PARAMETER
Pixel pitch (mm)
Pixel configuration 3 in 1
Encapsulation SMD2121
Colors matches 6:3:1
Module resolution (pixels) 80*80
Module pixel 6400
Module size (mm) 240*240
LED CABINET SPECIFICATION
Cabinet size (mm) 240*240*15mm
Cabinet resolution (pixels) 160*160
Cabinet pixels (pixels) 25600
Cabinet material Aluminum
Cabinet weight (kg) 8.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 111111
Brightness(cd/m2) ≥800 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 140°; Vertical 140°
Best viewing distance (m) ≥2m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/21 Scan
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1920
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -10～+40
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Rear side
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)









Competitive advantages:



1. Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands projects in 10 years;

2. Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;

3. Reasonable price: Profit back to customer for long term mutual development cooperation;

4. Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;

5. Trusted service: Local cooperation distributors in Italy,Poland,Malaysia and Thailand; 24/7 LED experts online support; LED engineer on-site support;
