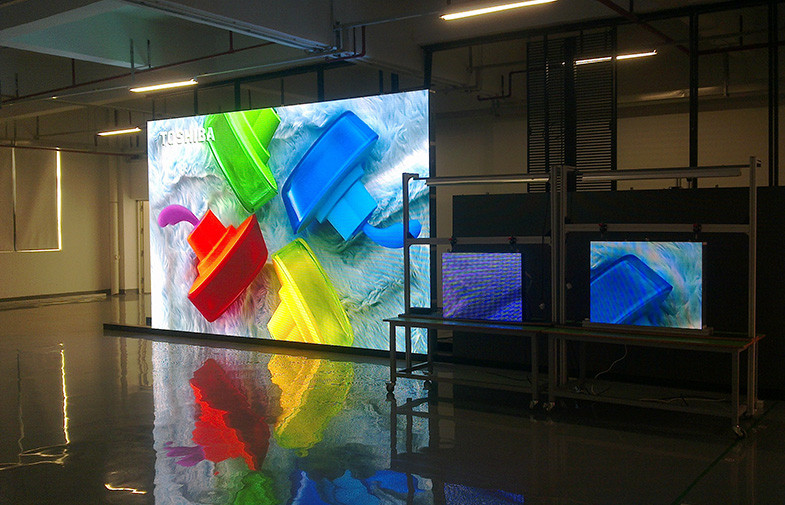

Custom Video Indoor Led Screen High Definition Sport Led Display 14bit

  • img.alt
Place of Origin China
Brand Name YUCHIP
Certification CE,ROHS,FCC,EMC
Model Number IF-5.926S
Minimum Order Quantity 1sqm
Price Negotiable
Packaging Details Flight Case,Wooden Case,Strong Carton Box
Delivery Time 15-20 Working Days
Payment Terms T/T
Supply Ability 5000㎡/Month
Product Details
High Light

led video wall rental

,

led display screens
Leave a Message
Product Description

Custom Video Indoor Led Screen High Definition Sport Led Display 14bit



Quick Detail:



1. Can Be Front or Rear Maintenance

2. LED Source: SMD3528

3. LED Module Size: 320*320*17mm;

4. LED Cabinet Size: 640*640*97mm;

5, Cabinet Weight:11.5kg/cabinet

6. Control software:Novastar / Linsn





Description:



Module features:

1, can be front or rear maintenance,

2, applible for front service because of the magnet design on the module, much easier for module repairingdisasembly work;

3, unique honeycomb design with high precision,much stable and fla.

Cabinet features:

1, Thermal-conductive & noiseless power supply.

2, Fast lock system-80% higher efficiency in installation.

3, Die-casting aluminum cabinet: High precision and less weight.

4, Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.

5, Available pitch: P5.33, P5.926, P6.67, P8, P10.



Applications:



Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display





Specifications :



LED MODULE PARAMETER
Pixel pitch (mm) 5
Pixel configuration 3 in 1
Encapsulation SMD3528
Colors matches 6:3:1
Module resolution (pixels) 54*54
Module pixel 2916
Module size (mm) 320*320*17mm
LED CABINET SPECIFICATION
Cabinet size (mm) 640*640*97mm
Cabinet resolution (pixels) 108*108
Cabinet pixels (pixels) 11664
Cabinet material Extrusion Aluminum
Cabinet weight (kg) 11.5kg
LED DISPLAY SPECIFICATION
Pixel density(pixel/m2) 28476
Brightness(cd/m2) ≥1000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 120°; Vertical 120°
Best viewing distance (m) ≥5m
Communication distance(m) <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km
Display work method 1/16 Scan
LED driving method Constant driving current
Color contrast ratio 4000:1
Gray Grade 14bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥1000
Picture display method Intellective control technology , test-itself technology , correct technology,
Synchronization Control
Input signal DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting )
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP30
Working temperature(ºC) -20～+60
Stored temperature (ºC) -30～+80
Operation humidity(RH) 0-95%
Display Lifetime(hours) 10 years or more( natural environment)
100000 hours( ideal environment)
Maintenance Front OR Rear
Working Voltage AC110 / AC220V±10% 47～63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one)











Competitive advantages:



1, P5.926  indoor full color LED display uniform in brightness and color;

2, Full color P5.926 LED screen is utilizing full black color LED chips;

3, Indoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;

4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;

5, Large viewing angle at 120 degree horizontal and vertical;

6, P5.926 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;



Assembly Sketch Map/Power Cable And Signal Cable Connection Sketch Map:



Custom Video Indoor Led Screen High Definition Sport Led Display 14bit 0
