High Brightness Advertising Rental Led Screen 8000 cd / ㎡ with Constant driving current
Product Details
| High Light | outdoor led video display,led video wall rental |
||
|---|---|---|---|
Product Description
High Brightness Advertising Rental Led Screen 8000 cd / ㎡ with Constant driving current
Quick Detail:
Piranha LED Lamp have both characteristics of SMD wide viewing and DIP angle high brightness,which is a great outdoor LED display product .
Description:

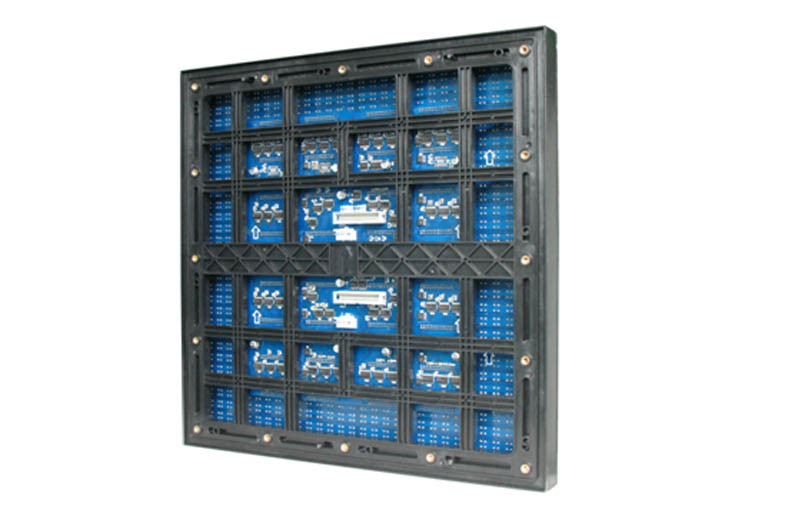

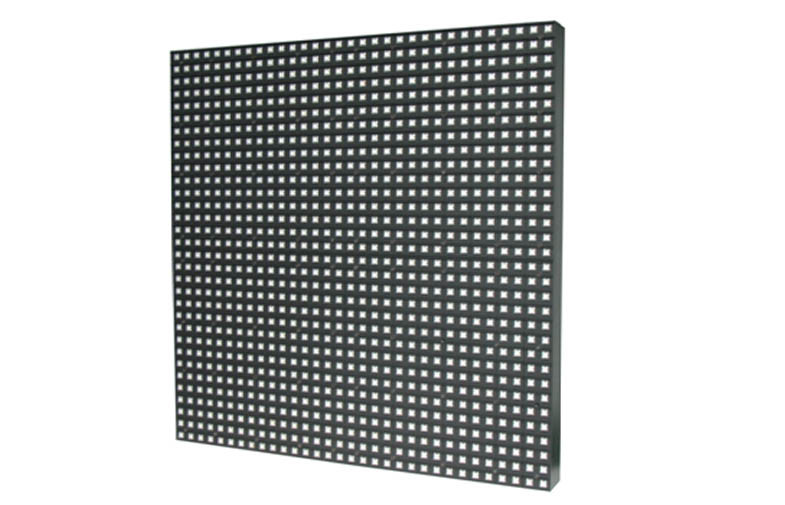

Module features:
· The Flux LED use 3 in 1 lamp. It has good heat dissipation and nice weather fastness.
· Viewing angle: Horizontal & vertical both reach 110 degree.
· Brightness:More than 8000 cd/㎡.
· High protection, excellent for outdoor condition and reach to IP65 protection level At the same time, it combines high stable of DIP lamps and SMD’s wide viewing angle.
· It’s the updated version of DIP&SMD products.

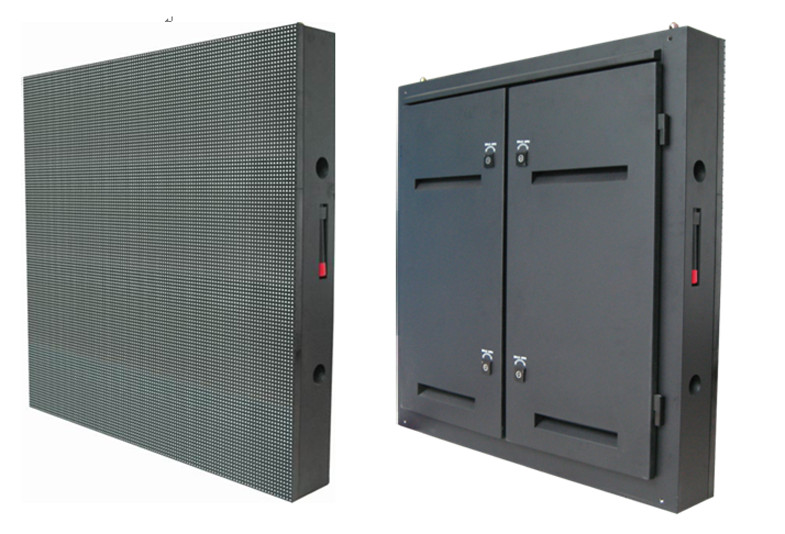

Cabinet features:
- Its size is 960mmx960mm and perform all the distance of indoor and outdoor display cabinet. The seams are reduced more than 50% and smoothness increases by leaps and bounds.
- Simplify the installation and maintenance: If familiar with one, you should master the whole. This can reduce the difficulty of marketing, engineering, training, maintenance and can reduce the workload.
- Standard production in a faster and more flexible way is possible because we have reserved standard general cabinets and the shipment can also be made rapidly.
Applications:
SMD3535 IN Outdoor P8 LED Display
Outdoor Advertising Led Billboard
Traffick LED Screen
Truck LED Display
Truck LED Screen
LED Display Truck Rental
Mobile Truck LED Display
Movable LED Screens
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 8 |
| Pixel configuration | Lamp 3 in 1 |
| Encapsulation | Piranha LED Lamp 3IN1 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40*40 |
| Module pixel | 1600 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960*960*150mm |
| Cabinet resolution (pixels) | 120*120 |
| Cabinet pixels (pixels) | 14400 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 48 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 15625 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 110° |
| Best viewing distance (m) | ≥10m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 13bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2000 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+50 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear and Rear |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 900W/㎡ ; Ave:300W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1.
2. P10 outdoor full color LED display uniform in brightness and color;
3. Outdoor full color LED video screens contrast ratio up to 4000:1 to react real color of the content;
4. Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5. Large viewing angle at 110 degree horizontal and vertical;
6. P10 LED display is of high resolution for outdoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
